** SAVE $$$ BY PURCHASING THIS AWESOME NIGHT STALKER COMBO **
** THIS COMBO INCLUDES THE HOLOSUN DRS-NV DIGITAL REFLEX SIGHT NIGHT VISION OPTIC AND THE HOLOSUN LS321G DUAL LASER & DUAL ILLUMINATOR **
------------------------------------------------------------------
HOLOSUN DRS-NV DIGITAL REFLEX SIGHT NIGHT VISION OPTIC INFO

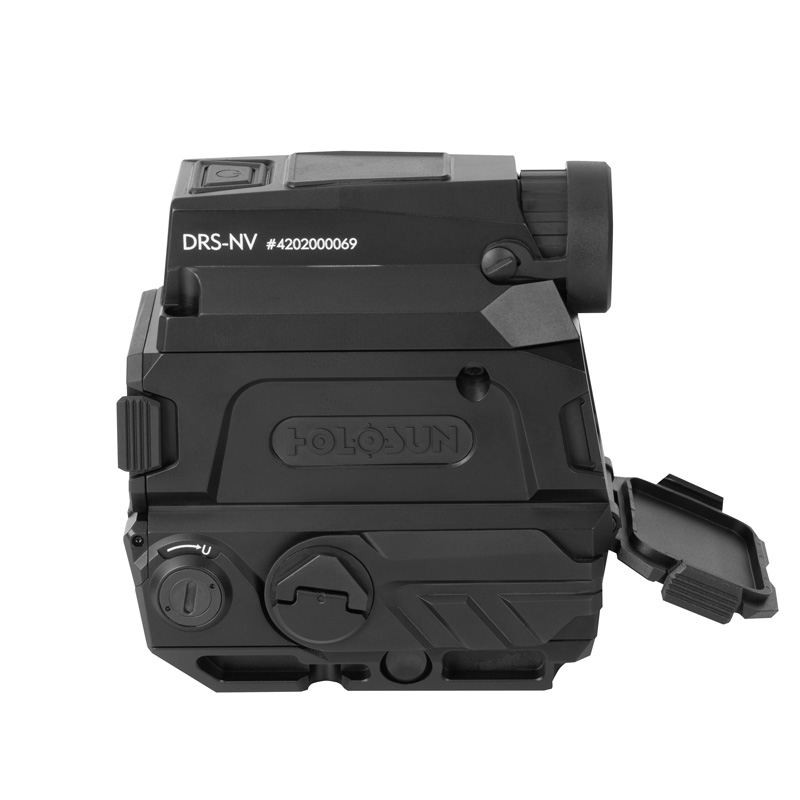

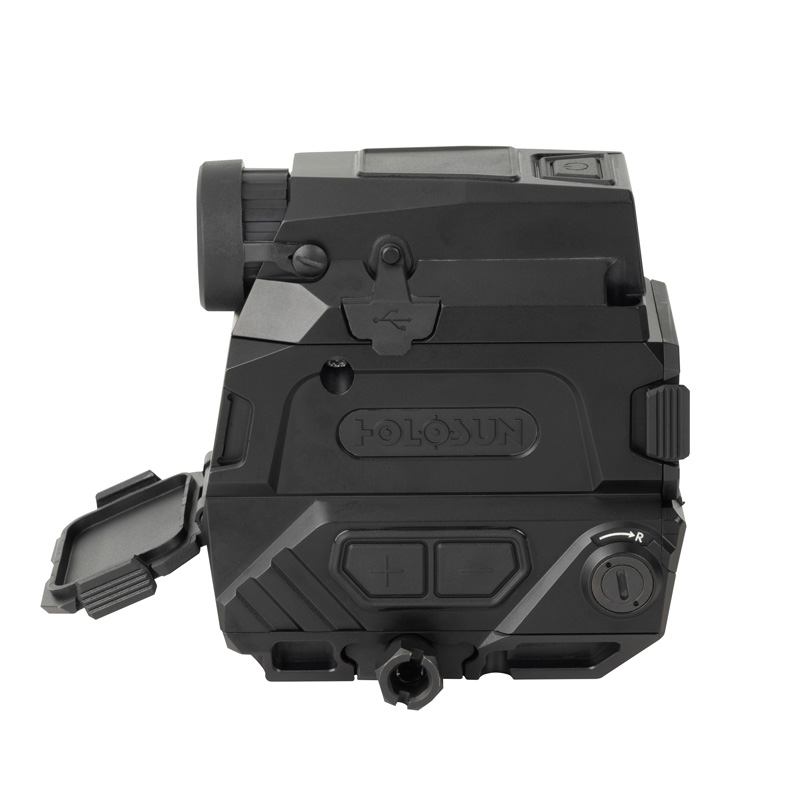

The DRS-NV (Digital Rifle Sight-Night Vision) is a red dot and digital night vision fusion sight that combines Holosun’s red dot sight technology with digital night vision capability.
DRS-NV features an LED MRS (Multi-Reticle System) with three digital reticle options, 1024x768 resolution digital night vision sensor with up to 60fps, 8x digital zoom, digital image and video recording with on-board storage. The DRS is powered by two 18350 rechargeable flat-top batteries with 6 hour run time in full function mode and 8 hours of run time in observation mode. An onboard magnetic coupler connects DRS to USB power for charging the batteries or to a PC for downloading of recorded images and video.
DRS-NV units amplify light to improve low light visibility. Moonlight and starlight provide sufficient lighting in most cases, however, during periods where cloud cover blocks moonlight and starlight, an external infrared (IR) illumination source is needed. Holosun recommends one of our laser devices with IR Illumination such as the LE321, or LS321. Verify your local and/or state laws before attaching and IR illumination device to a firearm with a night vision device.
In the Box
- 2x 18350 Li-ion Rechargeable Batteries
- Multi Tool
- Wrench
- Lens Cloth
- USB Cable
OPTICAL SPECS
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Light Wavelength | 650nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
PHYSICAL SPECS
| Window Size | 1.25×0.98 |
| Dimension (in) | 3.7×2.2×3.5 |
| Weight (oz) | 18.5 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
MAGNIFICATION SPECS
| Digital Zoom | 1x 2x 4x 8x |
| Transmittance | NA |
| Diopter | NA |
| Field of View | 7.2° x 5.3° |
| Eye Relief | NA |
| Exit Pupil | NA |
| Magnification | Digital |
Notice 5/6/2024: An updated user manual is available on this product page for download. Page 16 has been updated to reflect an Auto-Off function instead of a Shake Awake function for the camera. The LED Red Dot System does feature our Shake Awake functionality while the camera system has an Auto Off function.
------------------------------------------------------------------
HOLOSUN LE321-G INFO
The LS321G is a class IIIa visible green laser aiming device with a coaxial mounted class 2 IR (infrared) laser and IR illuminator for use with night vision devices. The LS321G features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS321G is powered by a single CR123 battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between visible low, visible high, IR high, IR illuminator, or IR high with IR illuminator activation using the included remote pressure switch or turn the unit OFF. The LS321G also includes a top mounted activation button and tactile windage and elevation adjustments for a precision zero.
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123A Battery
- SPECIFICATION -
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.6×2.2×1.6 |
| Weight (oz) | 8.64 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Dual Laser & IR Illuminator |
| White LED Output | N/A |
| IR Illuminator Class | IIIB |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | IIIB |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
