*THIS IS A COMBO SET THAT INCLUDE BOTH THE FRONT SIGHT (MAG1166-BLK) AND THE REAR SIGHT (MAG1167-BLK)*
Front Sight (MAG1166-BLK)
The next evolution in our MBUS (Magpul Back-Up Sight) line, the MBUS 3 incorporates the best features, strengths and value of our original MBUS and MBUS Pro Sights in a feature-packed back-up sight system.
Significantly reduced in size from the MBUS, it sits at just 0.47” high when folded, 1.38” at its widest point, and weighs a scant 25 grams with hardware. Its aesthetics are derived from the MBUS Pro, but the MBUS 3 Front Sight is constructed of our impact-resistant polymer, making it lightweight and extremely durable. Featuring the same spring-loaded technology as its predecessor, they can be deployed with an ambidextrous push-button.
The MBUS 3 Front Sight sits at standard AR-height when deployed and includes tool-less elevation adjustment of a dual width enhanced front post similar to the MBUS Pro.
MBUS 3 Sights are available in Black, Flat Dark Earth, and OD Green.
Made in the USA.
TECHNICAL SPECIFICATIONS
| Position | Front |
|---|---|
| Height above rail, stowed | ~0.47 in. |
| Platform | AR10, AR15, M4, M16, M110, SR25 |
| Weight, w/ hardware | 25 g |
| Other Specs |
ELEVATION ADJUSTMENT ~1 MOA (1.131”/100 m) per click with a 14.5" sight radius *NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed forend on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards. |

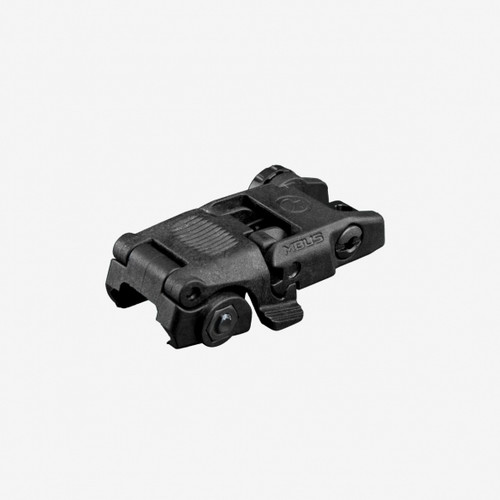

Rear Sight (MAG1167-BLK)
The next evolution in our MBUS (Magpul Back-Up Sight) line, the MBUS 3 incorporates the best features, strengths and value of our original MBUS and MBUS Pro Sights in a feature-packed back-up sight system.
Significantly reduced in size from the MBUS, it sits at just 0.55” high when folded, 1.38” at its widest point, and weighs a scant 30 grams with hardware. Its aesthetics are derived from the MBUS Pro, but the MBUS 3 Rear Sight is constructed of our impact-resistant polymer, making it lightweight and extremely durable. Featuring the same spring-loaded technology as its predecessor, they can be deployed with an ambidextrous push-button.
The MBUS 3 Rear Sight sits at standard AR-height when deployed and includes a windage adjustable, rapid-select aperture system.
MBUS 3 Sights will be available in Black, Flat Dark Earth, and OD Green.
Made in the USA.
TECHNICAL SPECIFICATIONS
| Position | Rear |
|---|---|
| Height above rail, stowed | ~0.55 in. |
| Platform | AR10, AR15, M4, M16, M110, SR25 |
| Weight, w/ hardware | 30 g |
| Other Specs |
Center of aperture to top of rail: 1.41 in. WINDAGE ADJUSTMENT ~0.5 MOA (0.606”/100m) per click with a 14.5" sight radius |
FULL-FEATURED SPRING-LOADED FLIP UP FRONT SIGHT
- Tool-less elevation adjustment and dual width enhanced front sight post, similar to MBUS Pro
- 0.47” high when folded and 1.38” wide at widest point
- Standard AR-height when deployed
FULL-FEATURED SPRING-LOADED FLIP UP REAR SIGHT
- Ambidextrous push-button deployment and rapid-select rear aperture system
- 0.55” high when folded and 1.38” wide at widest point
- Standard AR-height when deployed
IMPACT-RESISTANT POLYMER CONSTRUCTION
- Polymer construction, smaller size provides light weight and resists operational abuse
CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS
