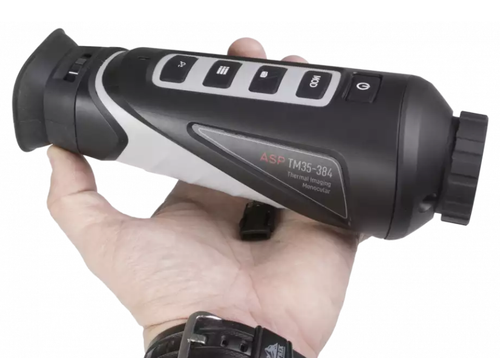

The Asp TM-384 handheld observational thermal monocular is equipped with a 384 × 288 infrared detector and a 1024×768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc. FUNCTIONS Distance Measurement:The device realizes distance measurement function after marking the top and bottom of target, and input the target height. Hot Spot Mark:The device detects and marks the hot spot of highest temperature. Wi-Fi & Hot Spot:Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone. Mode Switch: Device supports pallet switch and distance measurement. Storage: Built-in memory module supports video recording/snapshot capturing. Digital Zoom:Device supports 1× and 2× digital zoom.
- 384 × 288 resolution, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
- 1024 × 768 resolution 0.39-inch OLED display
- Built-in rechargeable Li-ion battery
- Up to five hours continuous running (with Wi-Fi hot spot function off)
- Wi-Fi hot spot/ Limited 3-Year Warranty
SPECS:
- Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Max. Resolution: 384*288
- Detector Pitch: 17um
- Recognition: (Vehicles: 1.4×4.0m) - 616yd (Humans: 1.8×0.5m) - 201yd
- Detection Range: (Vehicles: 1.4×4.0m) - 2466yd (Humans: 1.8×0.5m) - 803yd
- Identification Range: (Vehicles: 1.4×4.0m) - 308yd (Humans: 1.8×0.5m) - 100yd
- Response Wavebond: 8um to 14um
- NETD: < 35mk(@25°C,F#=1.0)
- Optical magnification: 1.7x
- Lens (focal length): 25mm
- Field of view (H × X): 14.88° x 11.19°
- F number: 1.0
- Digital zoom: 1x, 2X
- Monitor: 0.39-inch, OLED, 1024 × 768
- Hot Track: Yes
- Imaging palettes: Black hot White hot Red hot Fusion
- Storage: Built-in memory module (16GB)
- Record Video: Support on-board video recording
- Capture Snapshot: Yes
- Battery Type: Lithium Battery
- Wi-Fi: Yes
- Battery Operating Time: Up to 5 hours continuous running
- Battery Capacity Display: Yes
- Power supply: 5V DC/2A, 2W
- Weight: 460 g (1.01 lb)
- Working Temperature/ Humidity: -30 °C to 55 °C (-22 °F to 131 °F)
- Overall Dimensions: 189 mm × 74 mm × 66 mm (7.9″ × 2.91″ × 2.60″)
- Protection Level: IP67
