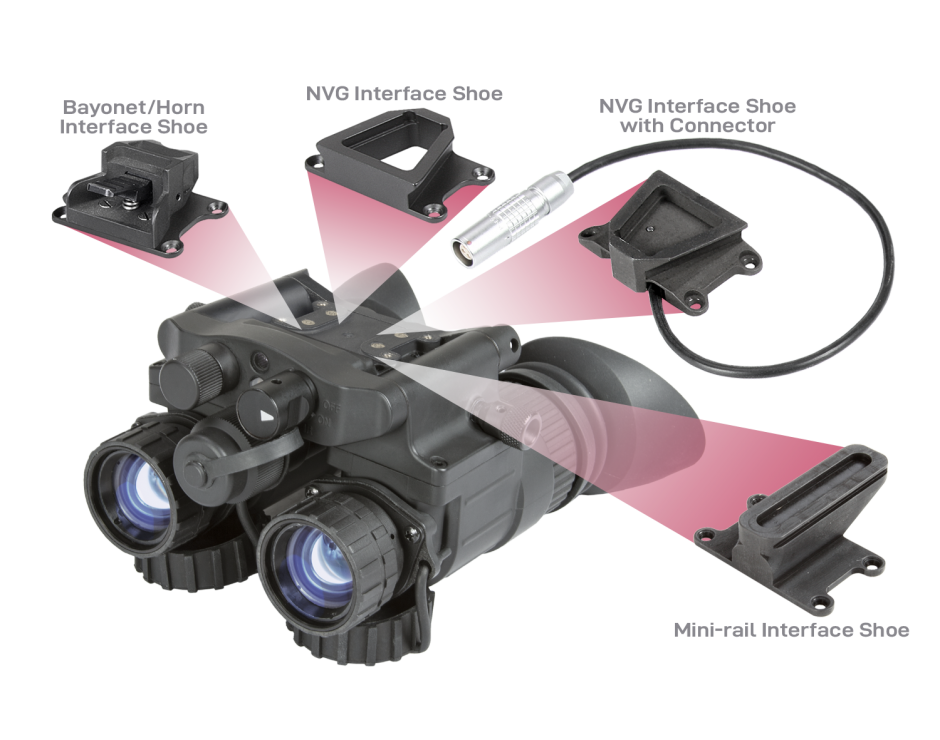

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Waterproof
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
SPECIFICATIONS
|
Image Intensifier Tube |
Gen 2+ "Level 1" |
|
Resolution |
51-64 lp/mm |
|
Field of view cleanness by zone |
Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
|
Magnification |
1x |
|
Lens System |
27 mm, F/1.3 |
|
FOV |
40° |
|
Focus Range |
0.25 m to Infinity |
|
Eye Relief |
25 mm |
|
Diopter Adjustment |
-6 to +2 dpt |
|
Led Indicators |
Low Battery IR On Excessive Light Conditions |
|
Infrared Illuminator |
Yes |
|
Manual Gain Control |
Yes |
|
Bright Light Cut-Off |
Yes |
|
Automatic Shut-Off System |
Yes |
|
Battery Type |
One CR123A (3V) or AA (1.5 V) |
|
Battery Life (Operating) |
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
|
Waterproof |
Yes |
|
Operating Temperature Range |
-40°C to +50°C (-40°F to +122°F) |
|
Storage Temperature Range |
-50°C to +70°C (-58°F to +158°F) |
|
Weight |
645 g (1.42 lbs) |
|
Overall Dimensions |
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in) |
|
Package Includes |
Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual |
|
Protection Level |
IP67 |
