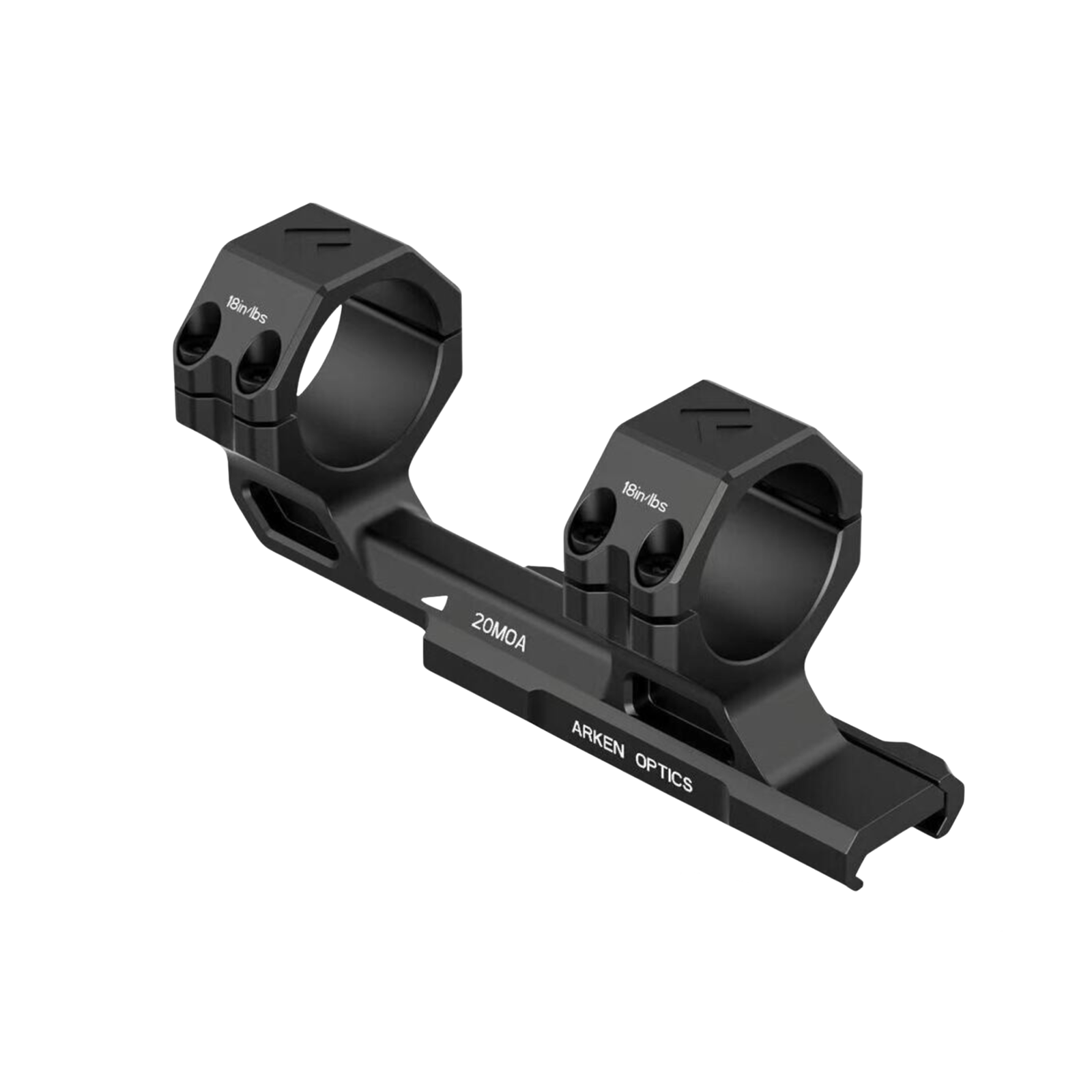

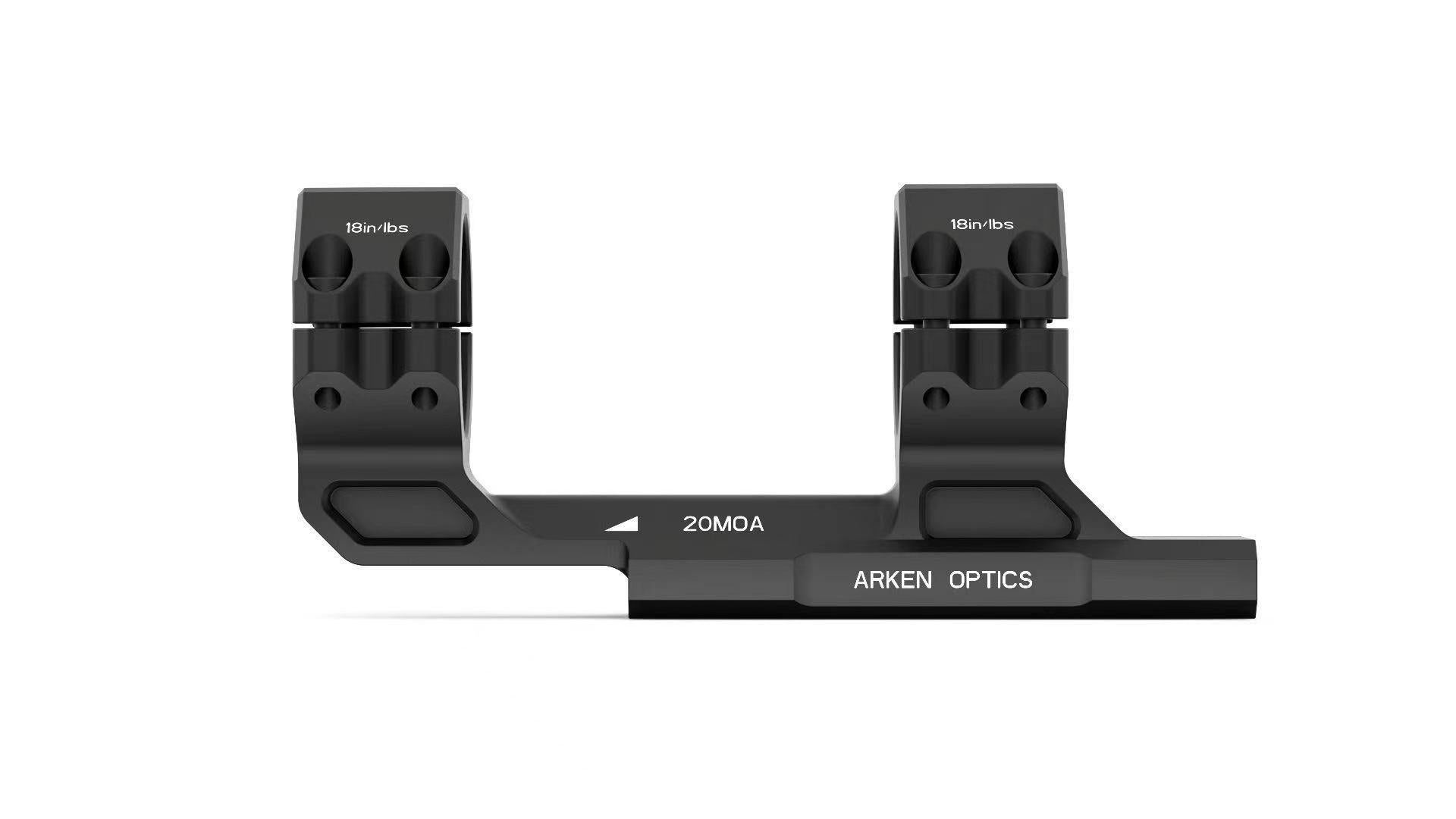

The Arken ARP-30 is a one-piece Rigid Precision cantilever scope mount from Arken Optics, designed for 30mm tube scopes with a built-in 20 MOA cant (tilt). It's popular for AR-style rifles and other platforms where extra forward eye relief is beneficial.
Key Specifications
- Tube Diameter: 30mm
- Cant: 20 MOA
- Height (to center of scope tube): 1.5 inches
- Forward Extension: ~2.5 inches (cantilever design)
- Weight: 6.9 oz (lightweight for its rigidity)
- Material: Fully CNC machined from aircraft-grade aluminum for precision tolerances and durability
- Mount Type: Picatinny / MIL-STD-1913 rail compatible (one-piece design with integrated rings)
Main Features
- Cantilever style shifts the scope forward for improved eye relief, especially useful on flat-top ARs or rifles with shorter rails.
- 20 MOA built-in tilt helps preserve your scope's internal elevation adjustment for longer-range shooting (allows you to zero at distance without maxing out the turret).
- Matte black finish.
- Laser-etched torque values on the mount for easy reference.
- Recommended torque: Max 18 in/lbs for ring screws, max 30 in/lbs for base screws (always follow your scope manufacturer's specs if they differ or are higher).
Why Choose the 20 MOA Version?
Standard mounts are "flat" (0 MOA). When you are shooting at extreme distances, you often run out of "up" adjustment on your scope's elevation turret.
The 20 MOA cant physically tilts the front of the scope slightly downward. This forces you to point the barrel higher to center the reticle on the target, effectively "giving back" 20 minutes of angle to your turret's adjustment range. It’s a must-have if you plan on pushing a 30mm tube scope past 600–800 yards.
