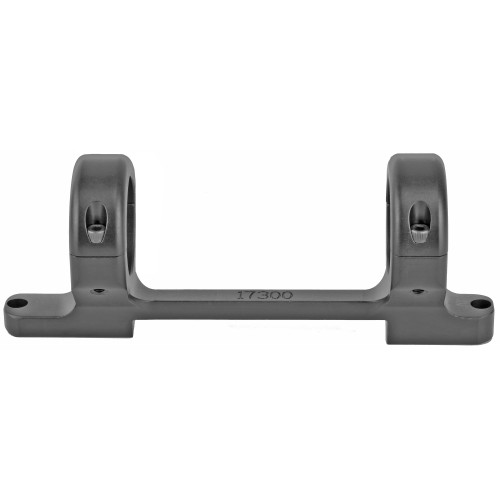

Every DNZ Scope Mount is precision machined in North Carolina from Top Grade, Solid Billet Aluminum. Ultralight with maximum shock absorption, there are no movable parts between rifle and scope.
Mounts fits right hand firearms.
Base screws are 6-48 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Both use a 7/64″ Allen wrench.
Mini action – Outside to outside of rings is 3.90″. Standard rings are .63″ wide and have 2 ring screws per ring. Tactical rings are .80″ wide and have 4 ring screws per ring. 4 Hole to hole spacing dimensions are .86″, 3.15″, .60″. Height of mounts from top of receiver to centerline of scope tube is – low .94″, medium 1.06″, and high 1.19″.
Short action – Outside to outside of rings is 4.17″. Standard rings are .63″ wide and have 2 ring screws per ring. Tactical rings are .80″ wide and have 4 ring screws per ring. 4 Hole to hole spacing dimensions are .86″, 3.88″, .60″. Height of mounts from top of receiver to centerline of scope tube is – low .98″, medium 1.11″, and high 1.23″. We have a RT Edge camo, low, short action, one inch in stock.
Long action – Outside to outside of rings is 4.61″. Standard rings are .63″ wide and have 2 ring screws per ring. Tactical rings are .80″ wide and have 4 ring screws per ring. 4 Hole to hole spacing dimensions are .86″, 4.48″, .60″. Height of mounts from top of receiver to centerline of scope tube is – low .98″, medium 1.11″, and high 1.23″.
Same mount used on the Weatherby Magnum and Weatherby Vanguard.
- Precision machined from a solid block of top-grade billet aluminum
- Custom made to fit each type of firearm and align perfectly with your rifle’s receiver
- No moving parts between the firearm and the scope
- 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security
- Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight
- Made in the USA
