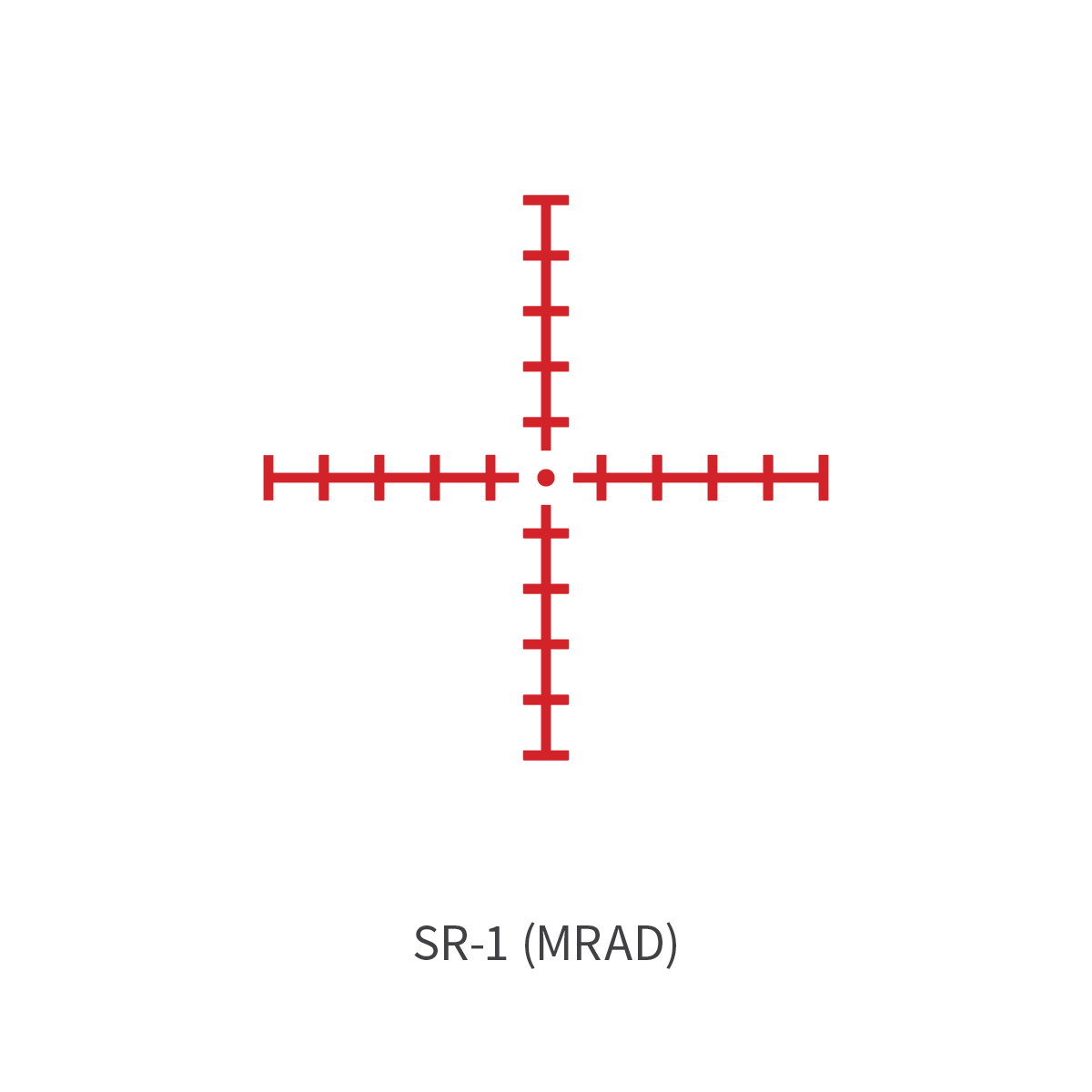

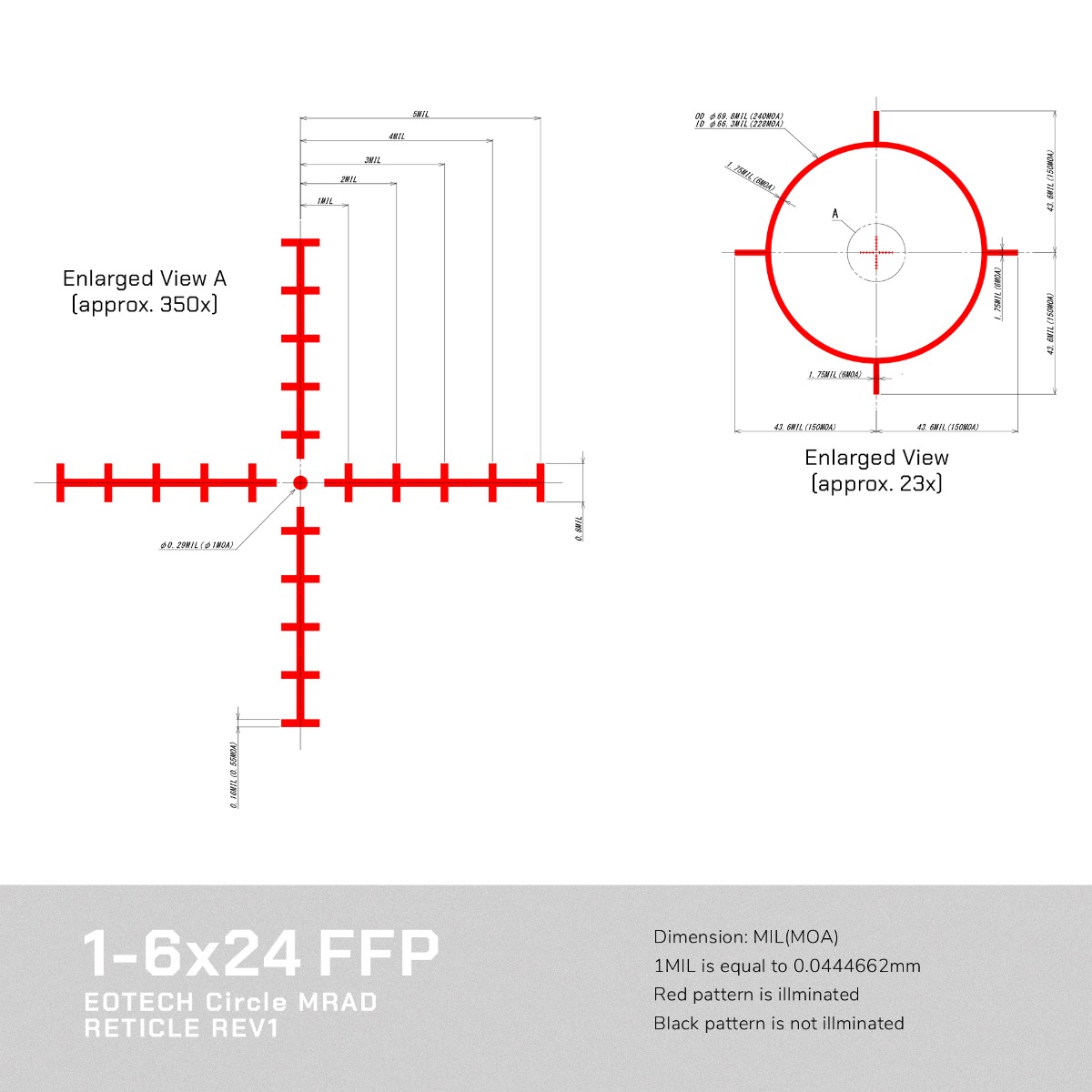

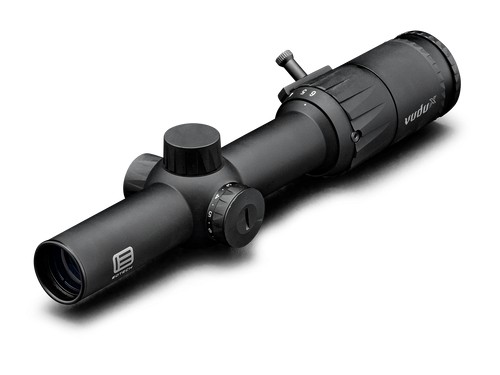

Created with the avid 3-gun competitor and serious hunter in mind, the Vudu 1-6x24 scope is compact, yet fully loaded for maximum performance near and far. Equally effective on AR platforms and your favorite bolt-action rifle. Its EOTECH-style speed ring reticle is designed for fast target engagement at low power, while delivering the resolution and accuracy you need for longer range targets. It’s the perfect solution for short to medium range applications that demand high durability and extreme accuracy.
BEFORE MAKING A PURCHASE: Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain an RMA number.
Technical Specifications
| Magnification | 1-6x |
| Objective Lens | 24mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 1x: 83-100mm; 6x: 82-100mm |
| Exit Pupil | 1x 11.4mm; 6x: 82-100mm |
| Field-Of-View (Degrees) | 1x: 19.4 degrees: 6x 3.2 degrees |
| Field-Of-View (@100 Yards) | 1x: 102.4 ft; 6x: 16.7 ft |
| Exterior Finish | Black; Type III anodized |
| Illumination Control |
Push Buttons
|
| Exposed Optical Surface Treatment Lens Coating |
Broadband anti-reflection coating |
| Windage and Elevation Increment Per Click |
SR2, SR3 Models: Approx. 0.5 MOA SR1 Model: Approx. 0.2 MRAD |
| Total Elevation Adjustment Range About Factory-Defined Zero Reference |
± 14.5 min MRAD or ± 50 MOA |
| Total Windage Adjustment Range About Factory-Defined Zero Reference |
± 14.5 min MRAD or ± 50 MOA |
| Battery Type |
CR2032 |
| Auto Power-Down to Sleep Mode |
Approximately 2 hours |
| Battery Life, Typical Time of Use at Room Temperature |
Approximately 500 hours at middle brightness setting 5* |
| Overall Length |
270mm (10.63 in) |
| Weight |
20.1 oz (570 gr) |
| Tube Diameter |
30mm |
| Country of Origin | Made in Japan |
Included In the Box
| Product User Manual |
| Reticle Manual |
| Throw Lever |
| Battery |
| Lens Cloth |
