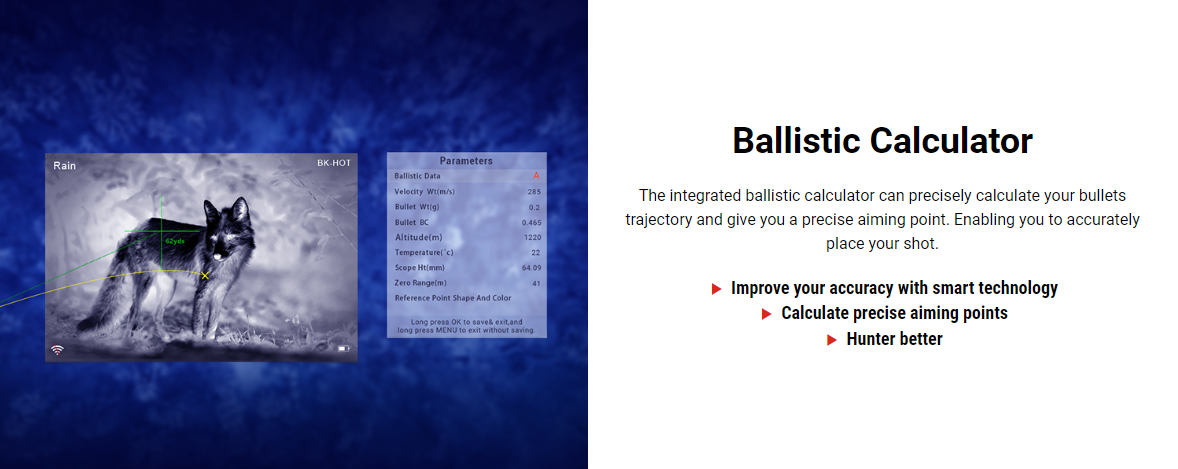

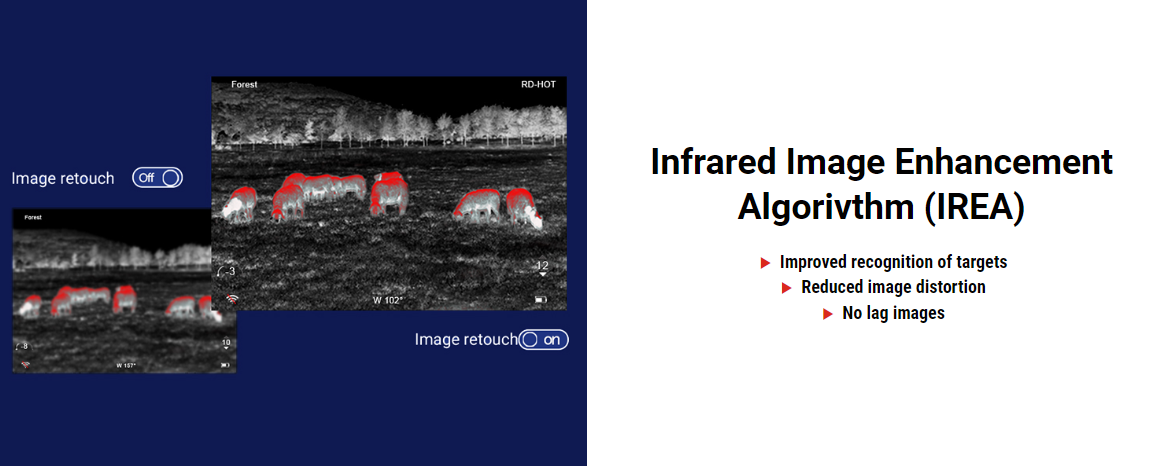

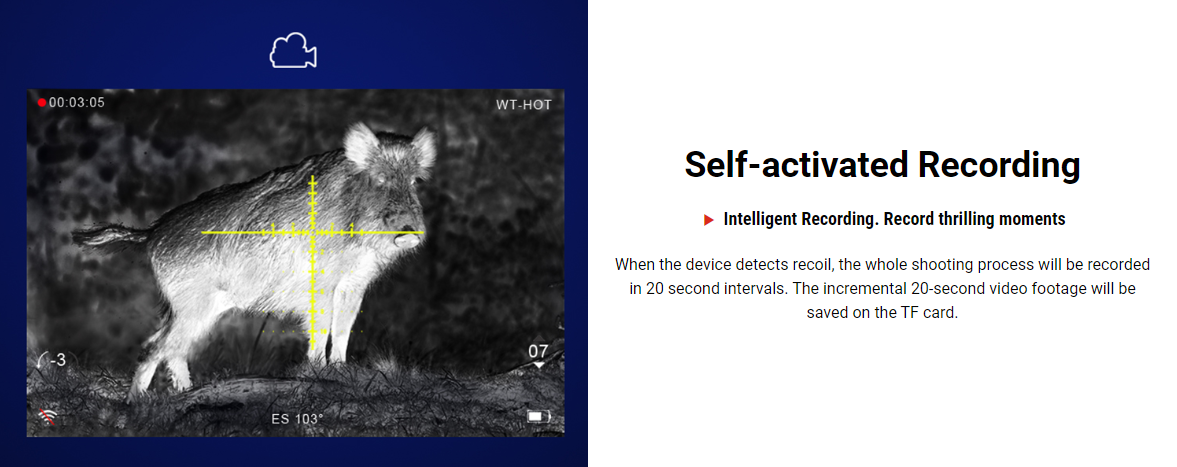

The SA32/62 LRF thermal imaging scope with a built in laser rangefinder. Features integrated ballistic calculator can precisely calculate your bullets trajectory and give you a precise aiming point; when the device detects recoil, the whole shooting process will be recorded in 20 second intervals. The incremental 20-second video footage will be saved on the TF card; recoil proof up to 6000J Muzzle Energy; Infrared Image Enhancement Algorivthm (IREA; multi reticle with four colors- red, white, yellow, green and three scene moses- city, rain and forest. Laser rangefinder range is 1,200 yards; e-compass and gyroscope.
SPECS
| Model | SA32(LRF) | SA62(LRF) |
| Sensor | ||
| Type | uncooled VOx(vanadium oxide) | uncooled VOx(vanadium oxide) |
| Resolution(px) | 384*288 | 640*480 |
| Pixel size(µm) | 12μm*12μm | 12μm*12μm |
| NETD(mK) | ≤25mK（0.025℃） | ≤25mK（0.025℃） |
| Frame rate(Hz) | 50Hz | 50Hz |
| Human detection distance(m) | 800/1100/1400/1700 | 1200/1500/1800 |
| Vehicle detection distance(m) | 1800/2200/2600/3000 | 2500/2900/3300 |
| Optics | ||
| Objective lens | 19mm/25mm/35mm/45mm | 25mm/35mm/45mm |
| Optical Magnification(x) | 2x/2.6x/3.7x/4.7x | 1.6x/2.2x/2.8x |
| Digital zoom(x) | 2-8x | 2-8x |
| PIP Zoom(x) | 2X | 2X |
| Continuous digital zoom | 2-32X/2.6-41.6X/3.7-59.2X/4.7-75.2X | 1.6-25.6X/2.2-35.2X/2.8-44.8X |
| Field of view (HxV) | 13.8°/10.5°/7.5°/5.9° | 17.5/12.5°/9.7° |
| 10.4°/7.9°/5.6°/4.4° | 13.1°/9.4°/7.3° | |
| 17.2°/13.1°/9.4°/7.3° | 21.7°/15.6°/12.2° | |
| Eye relief(mm) | 30mm | 30mm |
| Diopter adjustment(D) | – 5D~+5D | -5D~+5D |
| Display | ||
| Type | OLED | OLED |
| Resolution(px) | 1024*768 | 1024*768 |
| Reticle Style | 6 | 6 |
| Reticle Color | 4(Red,White,Yellow,Green) | 4(Red,White,Yellow,Green) |
| Scene Mode | City,Rain,Forest | City,Rain,Forest |
| Image mode | WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,Sky | WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,Sky |
| Photo / Video | ||
| Photo resolution(px) | 2592*1944 | 2592*1944 |
| Photo format | .JPG | .JPG |
| Video resolution(px) | 1024*768 | 1024*768 |
| Video format | .mp4 | .mp4 |
| Storage(GB) | TF card(128 GB)(Max) | TF card(128 GB)(Max) |
| Image Engine | Pard IREA | Pard IREA |
| Main function | ||

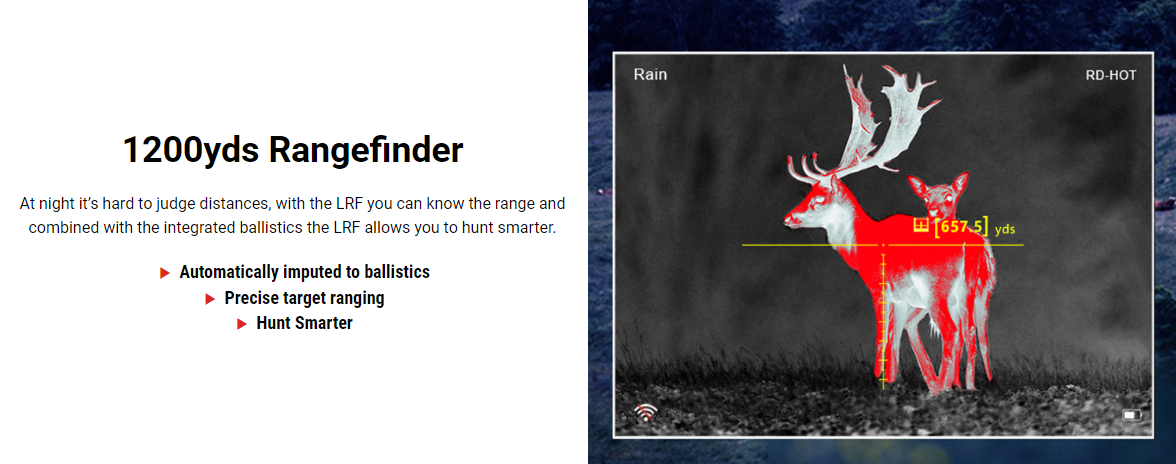

| LRF detection range(yds) | 1200yds | 1200yds |
| Ballistic calculator | Yes | Yes |
| PIP | Yes | Yes |
| Gyroscope | Yes | Yes |
| Self-motivated recording | Yes | Yes |
| Loop recording | Yes | Yes |
| Red dot | Yes | Yes |
| E-compass | Yes | Yes |
| Shutter | Mechanical shutter | Mechanical shutter |
| Microphone | Yes | Yes |
| Illuminator | 1W(350mA) | 1W(350mA) |
| Firmware Upgrade | Yes | Yes |
| Interfaces | ||
| USB Tpye-C | Yes | Yes |
| HDMI Output | Yes | Yes |
| Connections | ||
| WiFi | Yes | Yes |
| Supported Apps | PardVision | PardVision |
| Power Supply | ||
| Battery type | Lithium Ion 18650*1 | Lithium Ion 18650*1 |
| Output voltage(V) | 3.7V | 3.7V |
| Operating time(h) | ≤5h | ≤5h |
| External power supply(V) | Type-C | Type-C |
| Environmental characteristic | ||
| Degree of protection | IP67 | IP67 |
| Operating temp(°C) | -20℃~50℃ | -20℃~50℃ |
| Recoil Power(J)/shcok resistance(G) | 1000G | 1000G |
| Material | ||
| Housing | Aluminium Alloy | Aluminium Alloy |
| Objective lens | All-glass multi-coated lens | All-glass multi-coated lens |
| Measurement | ||
| Product dimension(L x W x H, mm) | SA32:195*77*56mm SA32 LRF:195*79*59mm |
SA62:195*77*56mm SA62 LRF:195*79*59mm |
| N.W/pcs(without battery, g) | SA32 :425g SA32 LRF :455g |
SA62 :425g SA62 LRF :455g |
