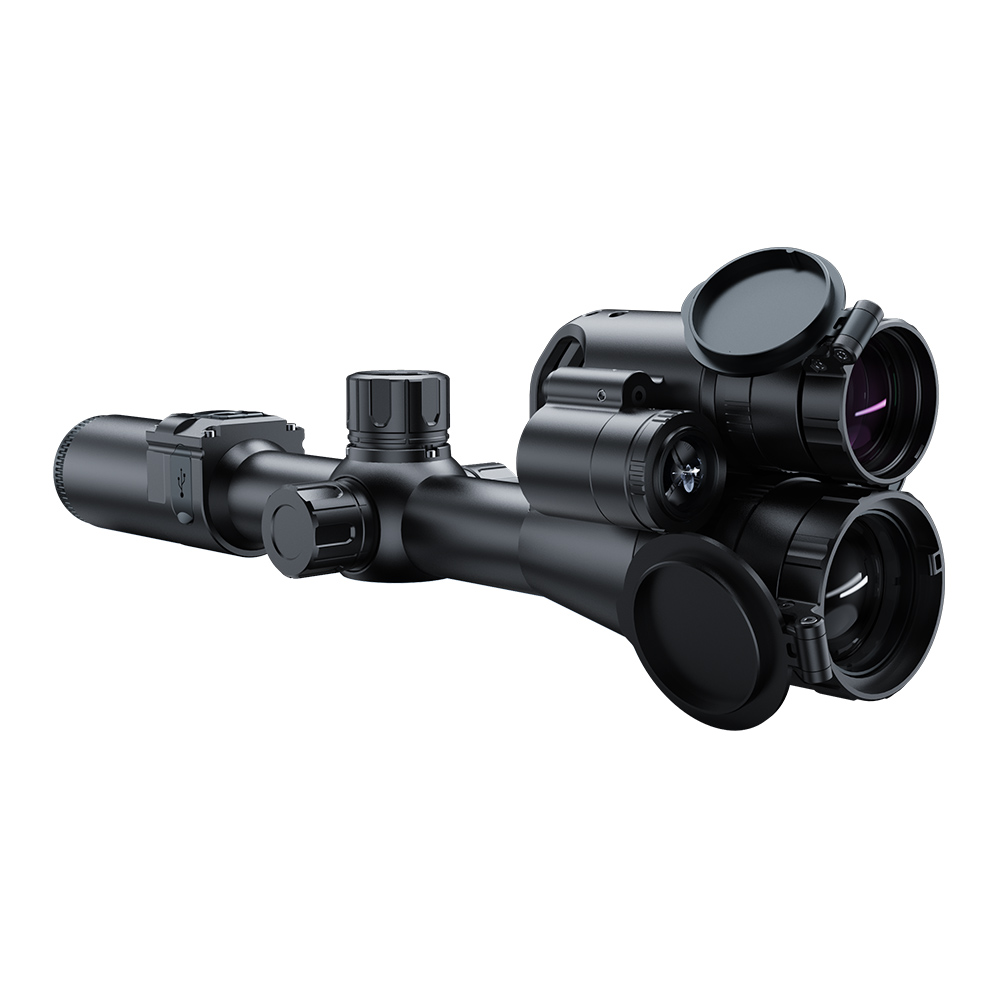

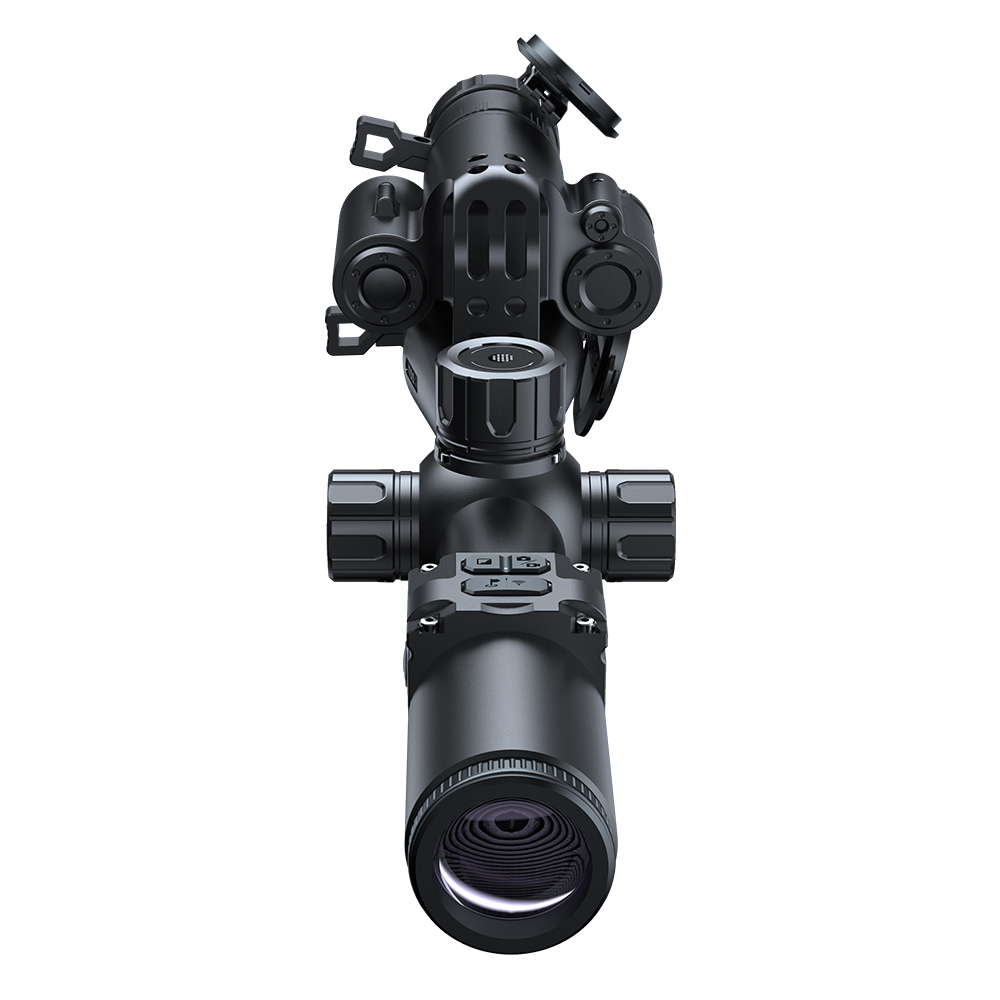

The TD32-70 Multispectral Rifle Scope revolutionizes hunting with four observation channels, thermal image and night vision/day time image. You can use each image channels seperately or combine a thermal main image with a night vision/daytime PIP or switch the thermal image into PIP as you need. By doing this, you can enjoy the benefits of thermal identification and night vision target recognition.
The scope features PIP mode enables the simultaneous display of thermal imaging and night vision on the same screen, allowing for enhanced observation, identification and precise shooting; ballistic calculation function, hunters can quickly and accurately shoot the target; convenient knob control for instant switching the position between thermal imaging and night vision display on the same screen; Reticle color red/white/yellow/green; Laser Range Finder with an impressive range of 1200yds delivers real-time and accurate distance measurements; thermal imaging detector with a resolution of 384-288, 12m pixel pitch and NETD25mK, combined with a high-performance CMOS sensor and multi-channel display, the TD32-70 provides a versatile hunting experience in various scenarios.
Includes two PARD 30mm standard mounts.
| Model | TD32 | |
| IR Sensor | ||
| Type | Uncooled Vox IR Sensor | |
| Resolution(px) | 384*288 | |
| Pixel Size(µm) | 12*12 | |
| NETD(mK) | ≤25mK（0.025℃） | |
| Frame rate(Hz) | 50 | |
| Human detection distance(m) | 1400 | |
| Vehicle detection distance(m) | 2600 | |
| Image Engine | Pard IREA | |
| Objective lens(mm) | 35 | |
| Optical Magnification(x) | 3 | |
| Digital zoom(x) | 2 | |
| Continuous digital zoom | 3-6 | |
| Field of view (HxV) | Horizontal | 5.7° |
| Vertical | 5.7° | |
| Diagonal | 8° | |
| Focus range | 3m-∞ | |
| Visible Light Sensor | ||
| Type | CMOS Sensor | |
| Resolution(px) | 1920*1080 | |
| Pixel size(μm) | 2.9 | |
| Sensitivity(lux) | 0.001 | |
| Frame rate(fps) | 30 | |
| Image Engine | PARD VLEA | |
| Objective lens(mm) | 70 | |
| Optical Magnification(x) | 6.5 | |
| Digital zoom(x) | 2 | |
| Continuous digital zoom | 6.5-13 | |
| Field of view (HxV) | Horizontal | 2.6º |
| Vertical | 2.6º | |
| Diagonal | 3.6º | |
| Image Engine | Pard VLEA | |
| Focus range | 3m-∞ | |
| Display | ||
| Type | IPS LCD | |
| Resolution(px) | 800*800 | |
| Reticle Style | 6 | |
| Reticle Color | 4(Red/White/Yellow/Green) | |
| Scene Mode | City/Rain/Forest | |
| Image mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | |
| Eye relief(mm) | 100 | |
| Diopter adjustment(D) | -5D~+3D | |
| Photo / Video | ||
| Photo resolution(px) | 2592*1944 | |
| Photo format | .JPG | |
| Video resolution(px) | Thermal: 1024*768/Night Vision: 1440*1080 | |
| Video format | .mp4 | |
| Storage(GB) | TF card(128 GB)(Max) | |
| Main function | ||
| LRF detection range(yds) | 1200 | |
| Ballistic calculator | Yes | |
| PIP | Yes | |
| Gyroscope | Yes | |
| Self-motivated recording | Yes | |
| Loop recording | Yes | |
| Red dot | Yes | |
| E-compass | Yes | |
| Shutter | Mechanical shutter | |
| Microphone | Yes | |
| Firmware Upgrade | Yes | |
| IR Illuminator | ||
| IR Type | VCSEL | |
| IR power | 5W | |
| IR illuminating level | 3 Levels | |
| IR distance(m) | 350 | |
| IR Wavelength(nm) | 850/940 | |
| Interfaces | ||
| USB Tpye-C | Yes | |
| HDMI Output | Yes | |
| Connections | ||
| WiFi | Yes | |
| Supported Apps | PardVision | |
| Power Supply | ||
| Battery type | Lithium Ion 21700*1 | |
| Output voltage(V) | 3.7 | |
| Operating time(h) | ≤6 | |
| External power supply(V) | Type-C | |
| Environmental characteristic | ||
| Degree of protection | IP67 | |
| Operating temp(°C) | -20~50 | |
| Recoil Power(J)/shcok resistance(J) | 6000 | |
| Material | ||
| Housing | Aluminum Alloy | |
| Objective lens | All-glass multi-coated lens | |
| Measurement | ||
| Product dimension(L x W x H, mm) | 350*91*95 | |
| N.W/pcs(with/without battery, g) | 800g(w/o battery) 845g(w/ battery) | |
