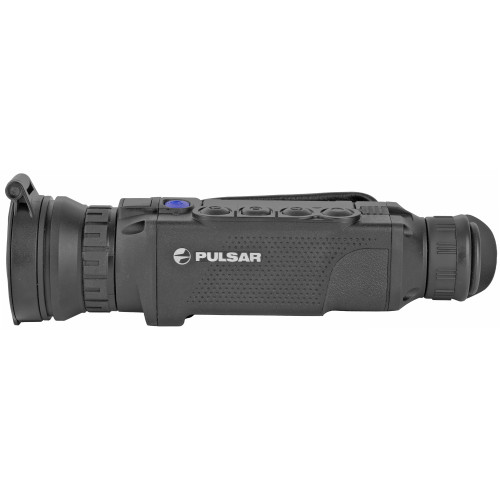

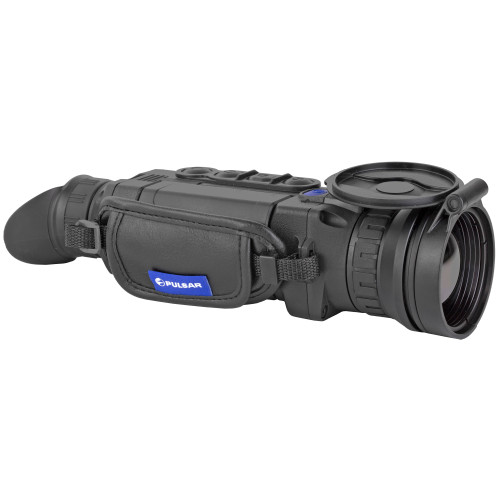

Pulsar's Helion 2 thermal imaging scope is based on an IR sensor and designed for the use both in the night-time and during the day in adverse weather conditions to see through obstacles hindering detection of targets. It is designed for various areas of application including night hunting, observation, trail orienteering, rescue operations etc.
Included in Package
- Battery pack
- Battery pack chargring kit
- USB cable
- Hand strap
- Lens Cleaning Cloth
- Carrying Case
Battery Used
- Type: B-Pack (18650 Li-ion)
- Quantity: 1
- Battery Life (w/o video out): 10 Hours
Features
- Highly sensitive thermal imaging sensor <40 mK
- 640x480 resolution / 17um pixel pitch core
- 2000 yd detection range
- Full-color AMOLED Display
- Built-in photo and video recorder
- 4 observation modes
- Variable digital zoom
- Picture-in-picture
- 8 color palettes
- Wi-fi integration with IOS and Android devices
- Up to 10 hours operating time
- Waterproof
| Frame Rate, Hz | 50 |
|---|---|
| Microbolometer Resolution, pixels | 640x480 |
| Pixel Pitch, µm | 17 |
| NETD, mK | <40 |
| Display Type | AMOLED |
| Display Resolution, pix. | 640x480 |
| Built-in Video Recorder Availability | Yes |
| Built-In Memory, Gb | 16 |
| Integrated Wi-Fi | Yes |
| Stream Vision support | Yes |
| Magnification | 2.5 - 20 x |
| Digital Zoom | 2/4/8 x |
| Lens diameter, mm | 42 |
| Lens Focus, mm | 50 |
| Relative aperture, D/f' | 1:1.2 |
| Field of View, degrees | 12.4 |
| Field of view, m@100m | 21.8 |
| Field of view, ft@100yd | 65.4 |
| Minimum focusing distance, ft/m | 10 / 3 |
| Eye relief (in/mm) | .6 / 16 |
| Exit Pupil, mm | 5 |
| Diopter Adjustment | ± 5 |
| Focusing Type of Distance | Objective |
| Range of Detection | 2000 / 1800 yd / m |
| Power Supply | 3 - 4.2 V |
| Battery Type | B-Pack (18650 Li-ion) |
| Battery Life (w/o video out), hours | 10 |
| External Power Supply | 5B - USB |
| Lens Material | Germanium |
| Body Material | Glass-nylon composite |
| Tripod Mount, inch | 1/4 |
| Operating Temp,?F/?C | -13 to 122 / -25 to +50 |
| Level of Protection (acc. to IEC 60529) | IP67 100% dustproof and submergible to 1m for 1 hour |
| Calibration | Manual, automatic, semi-automatic |
| Length (in/mm) | 9.2 / 234 |
| Width (in/mm) | 2.2 / 55 |
| Height (in/mm) | 2.3 / 58 |
| Weight, oz | 17.6 |
