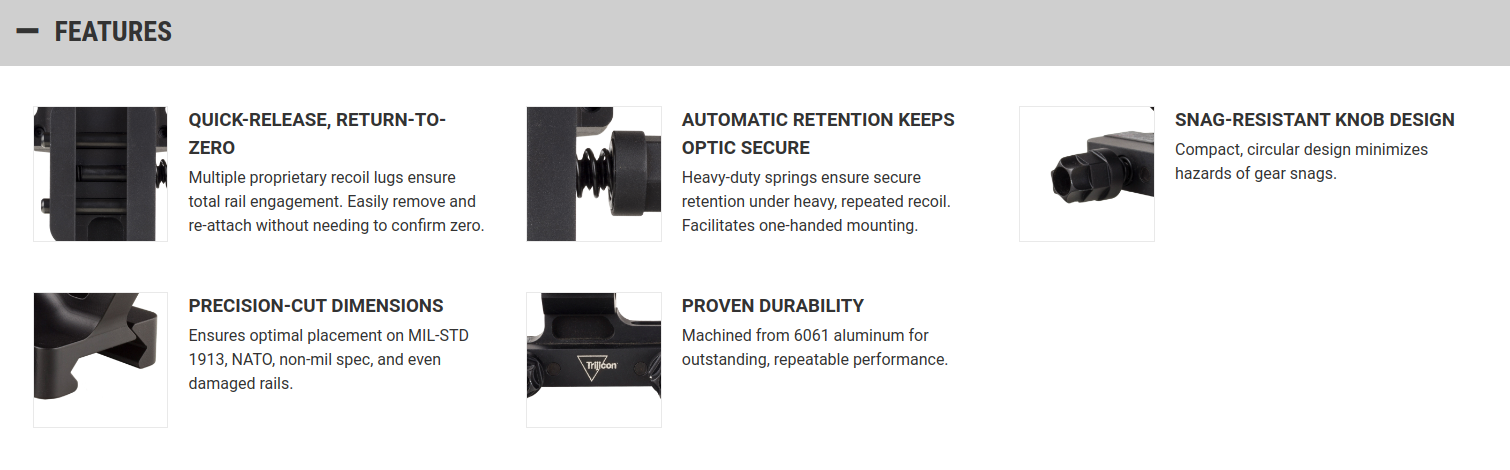

The Trijicon ACOG® & VCOG® Mount w/ Trijicon Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed toolless mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for the Trijicon ACOG & VCOG. This lightweight mount is perfect for mounting the ACOG & VCOG on any firearm platform with a picatinny rail.
• Matte Black Anodized Finish
• Made in the USA

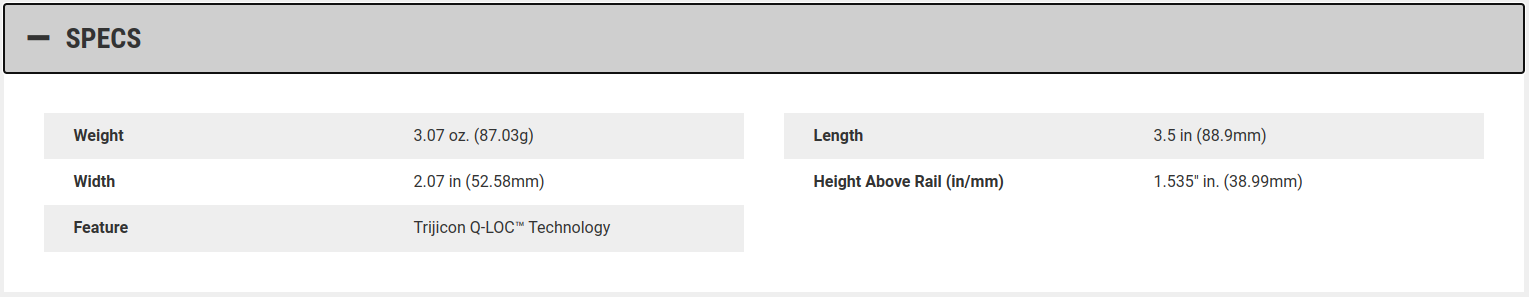

Distance From Top of Mounting Rail to Optical Axis:
1.535 in.
Torque Spec (to Rail):
Spring Tension Only: 12-16 in. / lbs
Can be Tightened To: 44-66 in. / lbs
For detailed mounting instructions click here.
