Trijicon's Cantilever Mount w/ Trijicon Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed toolless mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable powered optics, this lightweight mount is perfect for mounting Trijicon variable powered tube scopes with an objective lens up to 56mm, on any firearm platform with a picatinny rail. Trijicon's Cantilever Mount w/ Trijicon Q-LOC Technology at a height of 1.535 in. will also match the standard height above rail for all clip-on devices.
• Matte Black Anodized Finish
• Made in the USA

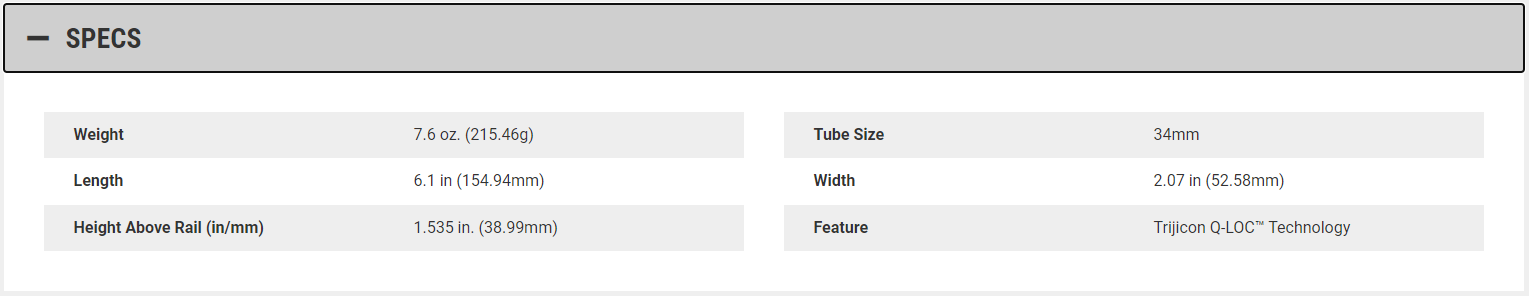

Distance From Top of Mounting Rail to Optical Axis:
1.535 in.
Torque Spec (to Rail):
Spring Tension Only: 12-16 in. / lbs
Can be Tightened To: 44-66 in. / lbs
Torque Spec (Ring Caps):
14-16 in. / lbs
For detailed mounting instructions click here.
NOTE: Fits Objective lens up to 56mm. Matches height above rail for all potential clip-on.
INCLUDES
- 1 Mount
- 2 Ring Caps
- 8 Screws
- 1 Hex Key
