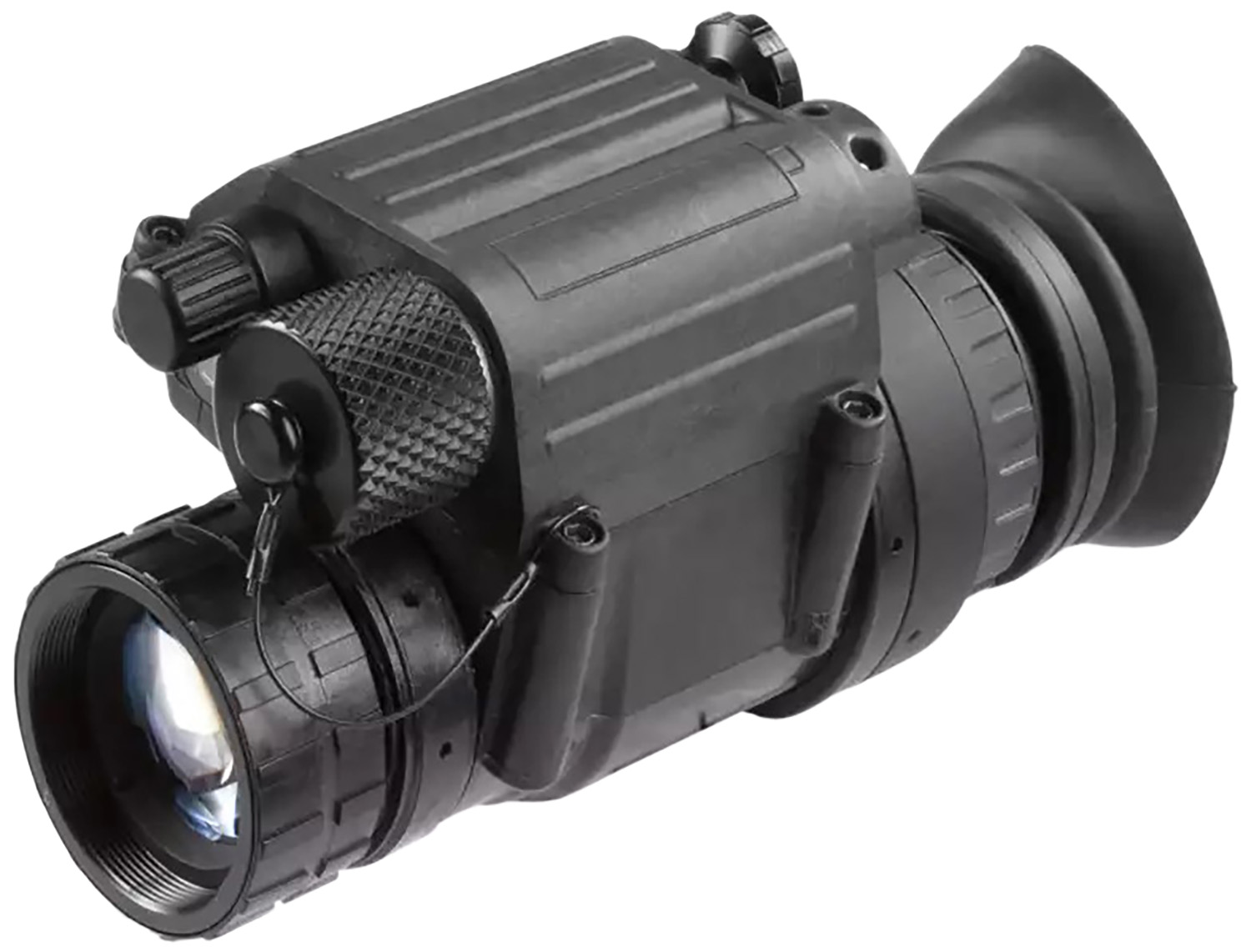

AGM Global Vision PVS-14 3APW Tactical Night Vision Monocular - Gen 3 Auto-Gated White Phosphor Level 3 IIT, 1X Magnification, Matte Black Waterproof Housing - 11P4M123474111
Product Description
When tracking targets or navigating harsh terrains in zero-ambient darkness, standard active lighting compromises your security. Traditional green-phosphor night optics can also warp color perception over long tracking sessions, causing critical details to blend into shadows. The **AGM Global Vision® PVS-14 3APW Gen 3 Auto-Gated White Phosphor Night Vision Monocular (11P4M123474111)** completely bypasses this operational hurdle. Built into the legendary, battle-tested military PVS-14 chassis, this premium optic features an auto-gated **Generation 3 image intensifier tube** with P45 white phosphor filtering to deliver true-to-life target contrast tracking.
Proudly engineered to meet uncompromised tactical and field specifications, the 3APW configuration uses an advanced **Auto-Gated power supply core**. This system rapidly shifts photocathode voltages to protect the tube from sudden light flares—such as flashlights, headlights, or breaches—preventing image blooming and halo blind spots. The **P45 White Phosphor** output translates light into a clean, natural black-and-white image, sharpening object boundaries across brush lines and structural facades. Rated as a "Level 3" sorting tube, it delivers excellent Gen 3 low-light gain and clarity with a highly accessible price point, making it a reliable choice for long-term night observation.
The system features a premium **26mm, F/1.2 multi-coated glass lens group** providing a true 1X spatial magnification framework and a wide 40-degree field of view, preserving depth perception and absolute situational awareness whether handheld or mounted to a helmet shroud on your workbench.
The Complete Tactical Staging Bundle Checklist
- PVS-14 3APW Gen 3 White Phosphor Monocular Assembly
- Head Mount Assembly (Goggle Kit)
- Brow Pad Strips Comfort Cushions
- Removable Eye Cup Tracking Shield
- Sacrificial Window Lens Barrier
- Demist Shield Eyepiece Moisture Protectors
- Objective Lens Cap Protective Slip
- Soft Tactical Carrying Case with Shoulder Sling
- Lens Cleaning Microfiber Cloth Unit
- 1x AA High-Capacity Battery Core
- Factory Packing Container & Instruction Manual
Key Features
- Gen 3 Auto-Gated Power Core: Features advanced auto-gating power cycles that instantly buffer sudden light surges, preserving the tube's resolution while protecting your eyes from temporary blindness.
- P45 White Phosphor Level 3 Tube: Provides a high-contrast black-and-white field of view that minimizes eye strain and sharpens structural lines compared to classic green phosphor screens.
- Manual Gain Adjustment Control: Outfitted with an integrated manual gain dial that lets you fine-tune the tube's brightness to match changing night environments.
- Built-In Infrared (IR) Illuminator: Equipped with a discrete, built-in infrared light pocket and focus lens to provide active illumination when working in total darkness.
- True 1X Spatial Alignment Lens: Optimized to provide accurate depth perception, making it easy to navigate, walk, or run while helmet-mounted.
- Fiber-Reinforced Composite Body: Built with an incredibly tough, compact, and waterproof shell designed to survive hard drops, heavy rain, and rough field environments.
Product Specifications
- Brand: AGM Global Vision® (Springerville, Arizona)
- Model Line: Tactical PVS-14 Professional Multi-Purpose Night Vision Series
- MPN/SKU Code: 11P4M123474111 (Also cataloged as 11P4M123474111-AGM-3APW)
- UPC Code Profile: 810027778796
- Image Intensifier Tube Class: Generation 3 Auto-Gated Photocathode Core (3APW Level 3 Spec Sorting)
- Phosphor Screen Type Profile: P45 White Phosphor (High-Contrast Natural Target Identification Output)
- Standard Resolution Matrix: 64-72 lp/mm (Line Pairs Per Millimeter High-Definition Core)
- Optical System Lens Build: 26mm, F/1.2 Multi-Coated Heavy-Duty Structural Glass Lens Group
- Magnification Rating Profile: True 1X Fixed Optical Level (No tracking distortion footprint)
- Field of View (FOV) Window: 40.0 Degrees Extra-Wide Tactical Spatial Awareness Path
- Diopter Adjustment Spectrum: -6 to +4 dpt Focus Ring Dial Rotation
- Focus Tracking Distance Range: 0.25 Meters (~0.8 Feet) out to Infinity Alignment Limits
- Status Indicators Module: Internal View-Finder LED Rows (IR Light Active, Low Battery warning)
- Power Supply Configuration: 1x Standard 1.5V AA Battery Core (Alkaline or Lithium Cell)
- Total Battery Life Endurance: Continuous ~50 Hours Operating Level at 20°C (IR Light Deactivated)
- Waterproofing Rating Profile: IP67 Standard Sealed Core Assembly (Waterproof & Fogproof housing)
- Operating Thermal Threshold: -51°C to +49°C (-60°F to +120°F Duty Staging Envelope)
- Product Type Category: Electro-Optics / Tactical Night Vision Monoculars & Goggles
- Overall Unit Core Dimensions: ~4.50" x 2.40" x 2.70" (~114 mm x 63 mm x 69 mm Chassis)
- Net Component Module Mass: ~12.40 Ounces (~351.5 Grams Ultra-Light Helmet Load Footprint Weight)
- Country of Quality Engineering: Developed and Serviced Proudly to Rigid Tactical Specifications
- Warranty Tracking Protection: Fully Backed by AGM Global Vision 3-Year Limited Warranty Support
