Ambient Arms AA5020 Atom ZT 1 2 x28 Threads Stainless Steel AA5020 UPC 850082644056
Product Description

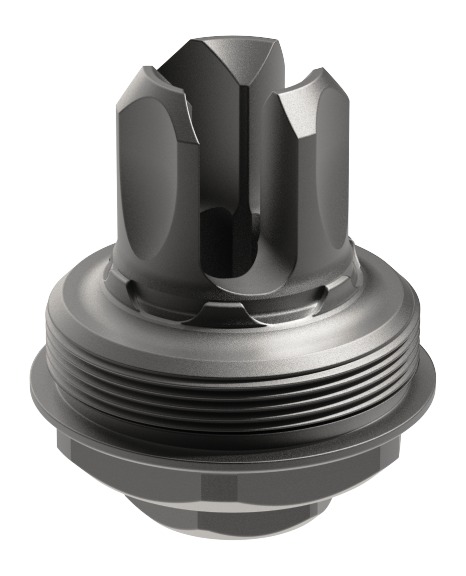

The Ambient Arms Atom-ZT 1/2"x28 Stainless Steel Muzzle Device (AA5020) is an advanced, dual-purpose muzzle brake and quick-detach (QD) suppressor adapter engineered for 5.56 NATO / .223 Rem AR-15 platforms and 9mm / .22 caliber precision rifles. Precision CNC-machined in the USA from 17-4 PH stainless steel, this compact muzzle device features Zero Taper (ZT) geometry to ensure 100% repeatable lockup and absolute bore concentricity under intense firing schedules.
Designed to serve as both an effective standalone recoil reducer and a robust mounting host for Atom-series suppressors, the AA5020 channels high-pressure propellant gases through precision-engineered porting to mitigate muzzle rise and felt recoil. The streamlined architecture adds minimal weight to the muzzle, preserving rifle balance while acting as a sacrificial baffle to prolong internal suppressor service life.
Featuring fine external acme threads paired with a self-sealing taper surface, the Atom-ZT prevents carbon fouling from reaching the mounting threads, eliminating carbon lock and enabling rapid, tool-free suppressor attachment and removal. Backed by Ambient Arms' Limited Lifetime Warranty, the AA5020 is built for hard duty use, competition, and tactical training.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits barrels threaded in 1/2"x28 tpi chambered in 5.56 NATO, .223 Rem, .22 LR, or 9mm (verify bore diameter clearance for sub-caliber platforms). Serves as a QD host for Ambient Arms Atom-ZT compatible suppressor units.
- Perform a complete firearm safety check: drop the magazine, lock the action rearward, and visually inspect the chamber to verify zero live rounds are present.
- Thoroughly clean the barrel threads and muzzle shoulder using a wire brush and degreaser.
- Install appropriate timing shims (if timing port orientation is required) or crush washer over the 1/2"x28 barrel threads.
- Thread the AA5020 Atom-ZT muzzle device onto the barrel by hand until hand-tight against the shim stack.
- Use a torque wrench with an armorer's crowfoot wrench to tighten the muzzle device to 20–25 ft-lbs, ensuring proper port alignment.
- Inspect bore alignment visually or using a caliber-specific alignment rod prior to attaching a suppressor and firing live ammunition.
Key Features
- Zero Taper (ZT) Interface: Precision-machined taper geometry seals out carbon gases and ensures repeatable point-of-impact alignment.
- 17-4 PH Stainless Steel Construction: Ultra-durable aerospace-grade stainless steel withstands severe thermal cycles, rapid fire, and erosive gas velocity.
- Sacrificial Baffle Functionality: Functions as an initial blast baffle when shooting suppressed, extending the lifespan of your suppressor core.
- Compact Profile Architecture: Adds minimal length and weight to the muzzle, maintaining natural swing and rifle maneuverability.
- Effective Recoil & Muzzle Rise Mitigation: Engineered baffle ports redirect high-pressure propellant gases to stabilize red dot reticles and sight pictures.
- Ambient Arms Lifetime Warranty: Proudly manufactured in the USA and backed by a factory lifetime warranty against defects.
Product Specifications
- Brand: Ambient Arms
- Model/Series: Atom-ZT Muzzle Device
- MPN / SKU: AA5020
- UPC: 850082644056
- Thread Pitch: 1/2"x28 tpi
- Caliber Compatibility: 5.56 NATO / .223 Rem / .22 Caliber / 9mm
- Material: 17-4 PH Stainless Steel
- Finish / Color: Matte Stainless / Raw Heat-Treated
- Attachment Type: Direct Thread (Barrel) / Quick-Detach (Suppressor Host)
- Warranty: Limited Lifetime Warranty
- Weight: 3.4 oz
- Country of Origin: USA
