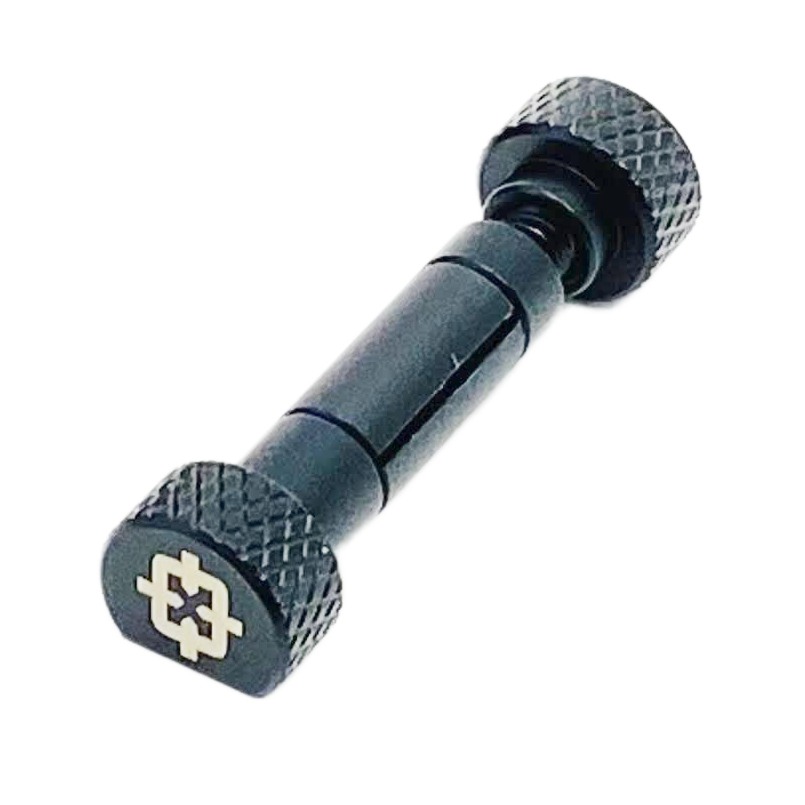

Cross Armory® AR15 Pin Pal Front Takedown Pin Replacement System – 4140 Ordnance Steel Construction – Low-Friction Black Melonite Hard Coat – Pre-Lubricated Porous Metal Captive Bearing – CRPP
Product Description
The Cross Armory® AR15 Pin Pal (CRPP) represents a vital mechanical intervention in AR-15 sub-chassis architecture preservation, pivoting frame logistics, and strict regulatory state compliance staging, proudly engineered in the USA. Originally designed to address the unintended mechanical consequences of fixed-magazine legislation in highly restrictive jurisdictions—such as California, New York, New Jersey, and Connecticut—the Pin Pal prevents severe metal degradation. In these states, compliance-driven reload workflows force marksmen to physically break open and separate the upper and lower receivers during every single magazine reload. Because classic aluminum receivers were never engineered to constantly grind against a hard steel pivot pin under intense rotational friction, this repeated cycling accelerates structural wear, causing the upper receiver's front pivot pin hole to warp, ovalize, and elongate over time. The Pin Pal completely halts this framework self-destruction loop, replacing the loose OEM component with an up-armored, bearing-driven pivot engine.
The foundational triumph of this armor-plated solution rests on its pre-lubricated MIL-SPEC porous metal captive bearing and premium 4140 ordnance steel front takedown pin. Shifting rotational friction completely off the soft receiver aluminum, the Pin Pal press-fits a high-strength captive bearing directly into the upper receiver pivot hole. This specialized bearing features an enhanced iron composition engineered to handle aggressive shock loads and high-velocity stress planes. When the receiver is pivoted open, the inherent start-up friction prompts the porous metal matrix to sweat a microscopic boundary layer of lubricant across the axle interface. Paired with a heavy-duty front pin machined from 4140 steel and bathed in a low-friction, scratch-resistant Black Melonite hard coat finish, this custom assembly locks down with an ultra-tight threaded locking nut rather than relying on standard loose spring-and-detent tensioning loops.
The true operational victory of this drop-in upgrade lies within its non-permanent, toolless configuration integrity and long-term chassis stabilization loop. Armorers do not need to perform permanent mill alterations, modifications, or drill-outs onto their expensive receiver decks—the entire Pin Pal matrix can be tapped out safely using a soft hammer if you ever choose to return the rifle to standard factory specifications. By removing the annoying rattle, wobble, and side-to-side alignment slop between the upper and lower halves, the Pin Pal preserves match-grade physical uniformity and geometric seal over thousands of reload cycles. Outfitted to drop seamlessly into any standard mil-spec AR-15 or M4 platform, this 0.72-ounce defense engine grants you permanent structural authority over your rifle's pivot workspace.
Includes: (1) Authentic Cross Armory AR-15 Pin Pal Melonite Finished 4140 Steel Front Takedown Pin, (1) Thread-Matching 4140 Steel Retention Locking Nut, and (1) Pre-Lubricated Iron-Enhanced Porous Metal Captive Bearing Bushing, Packed inside Original Branded Factory Sealed Retail Clamshell Packaging.
*Administrative Armorer Staging, Compliance Tuning & Bearing Fitment Guidance: The Cross Armory Pin Pal is a tight-tolerance receiver upgrade asset. **CRUCIAL FITMENT ALERT:** This pin system is dimensioned explicitly for mil-spec AR-15 and M4 lower/upper receiver groups using standard 0.250-inch pivot holes; it is 100% incompatible with large-pin vintage Colt lower receivers or heavy-frame AR-10/.308 configurations unless scaled variant models are swapped. **ARMORER TUNING TIP:** Due to minute manufacturing variations among various aftermarket receivers (such as billet vs. forged specs), never violently force or hammer the captive bearing into the upper receiver hole if excessive resistance occurs. If the fit is initially too tight, gently smooth the outside surface of the porous metal bushing with ultra-fine sandpaper or walk a small drill bit inside the inner diameter if the pin binds after installation compression lines settle. Always verify your host firearm is fully unloaded, clear of active ammunition cartridges, and physically proven safe before performing receiver diagnostics on your bench deck.
Key Features
- Chassis-Saving Bearing Protection: Transfers abrasive grinding wear completely away from the delicate aluminum upper receiver holes onto a rugged, replaceable steel-bearing matrix.
- Self-Lubricating Porous Metal Core: Utilizing an iron-enhanced porous composite, the captive bushing exudes a microscopic film of structural oil exactly as the receiver halves separate.
- Ordnance-Grade 4140 Steel Pin: The main takedown pin and corresponding compression locking nut are CNC-machined from 4140 steel to deliver ultimate shear and bending resistance.
- Melonite Anti-Corrosion Finish: Coated in a deep, slick Black Melonite hard coat to shrug off intense carbon fouling, environmental moisture, and high-frequency friction cycles.
- Fixed-Mag Compliance Armor: An absolute structural necessity for California, New York, and New Jersey fixed-magazine rifles that undergo extreme open-close cycles.
- Wobble-Free Receiver Lockup: Employs a positive threaded locknut assembly instead of traditional loose spring detents to completely remove receiver rattle, wobble, and upper slop.
Product Specifications
- Brand: Cross Armory® (Precision engineered, machined, and state compliance vetted natively in the USA)
- Product Line: Compliance Mitigation & Sub-Chassis Alignment Enhancement Accessories
- Model Series Designation: AR-15 / M4 Pin Pal Front Takedown Pin Replacement Kit
- SKU / MPN: CRPP (Alternative Industry Identifiers: CR-PP / CRS-crPP / 36666)
- UPC Barcode Number: 649070877299
- Chassis Platform Compatibility: Standard Mil-Spec AR-15, M4, and AR-Style 5.56/.223 Receiver Groups
- Caliber Optimization: Multi-Caliber Base (.223 Remington, 5.56x45mm NATO, .300 AAC Blackout, 9mm Luger PCCs, etc.)
- Primary Pin Metallurgy: CNC-Machined 4140 High-Tensile Ordnance Steel Billet
- Surface Treatment Finishing: Low-Reflective, Friction-Reducing Black Melonite Hard Coat Finish
- Bushing/Bearing Metallurgy: Porous Iron-Infused Metal Alloy Captive Sleeve (Pre-Lubricated Matrix)
- Attachment Retention Class: Threaded Cross-Bolt Alignment Nut Interface (**No Springs or Detents Required**)
- Installation Blueprint: Press-Fit Non-Permanent Design Matrix (Easily Removable to Return to Factory Profile)
- Product Net Component Weight: ~0.72 oz (~20.4 g) Mass-Optimized Mechanical Receiver Protector
- Total Packaging Shipping Mass: ~0.15 lbs (Enclosed Inside Original Sealed Secure Clear Clamshell Retail Hanger Packaging)
