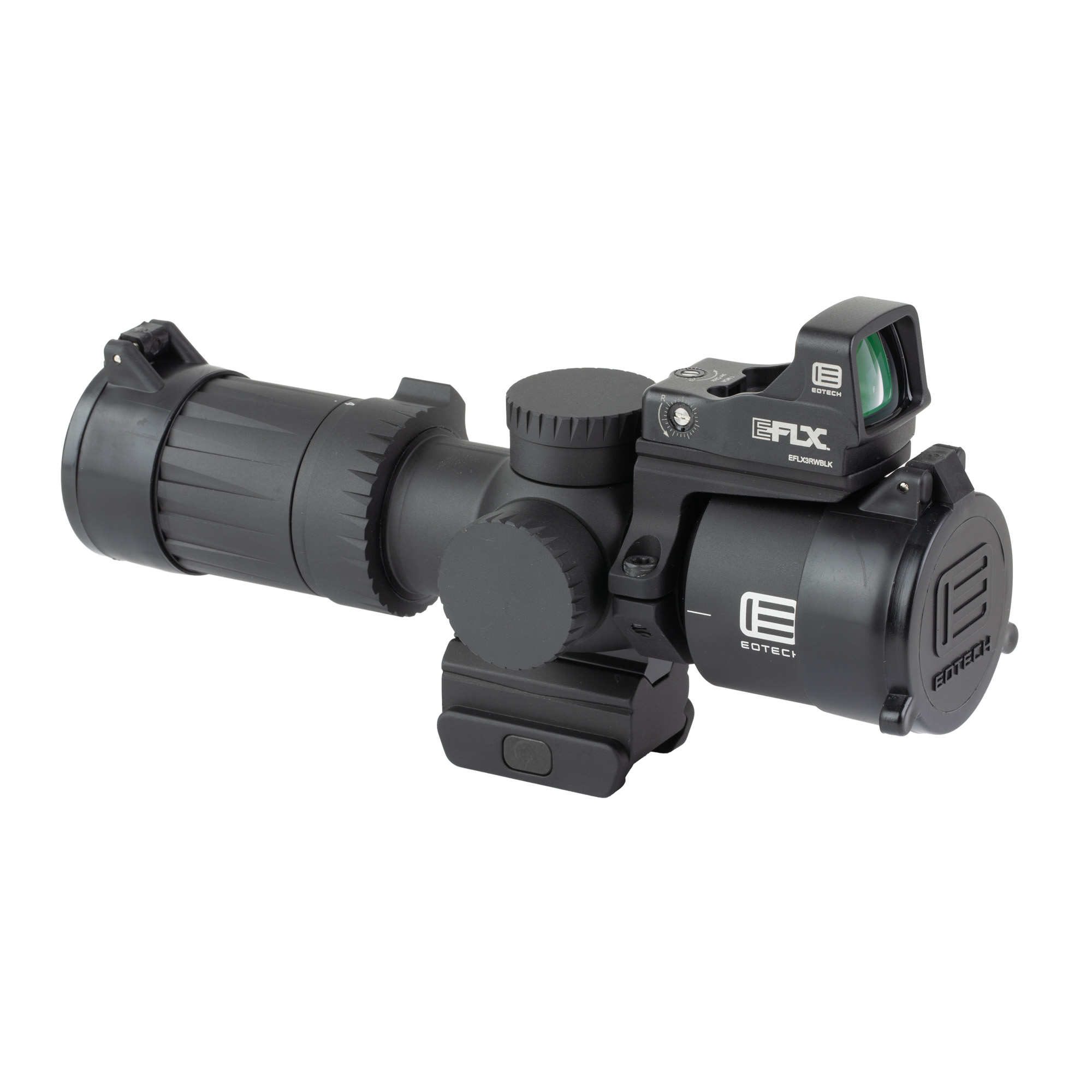

EOTECH Vudu 4-12x36mm FFP Ultra-Short Riflescope Package with EFLX Red Dot & Mount - VDU4-12PKG2
Product Description
Equipping an agile modern sporting rifle, dynamic recce carbine, or short-action bolt gun for multi-role mission sets often reveals an immediate mechanical and physical bottleneck: the massive size of standard variable optics. Traditional high-power riflescopes feature long maintubes and massive objective bells that devour receiver rail space, pack on top-heavy bulk, and trap the user into narrow close-range fields of view where fast, both-eyes-open tracking becomes impossible. Attempting to fix this by building custom, separate piggyback red dot mounts introduces alignment headaches, height-over-bore clipping, and unpredictable tracking shifts. The EOTECH® Vudu® 4-12x36mm FFP Ultra-Short Combo Package completely eliminates these multi-distance integration shortfalls, delivering a factory-assembled, compatibility-verified dual-optic engine engineered to dominate from arm’s length out to deep mid-range hunting or tactical lanes.
Precision-machined in Japan from a single monolithic extrusion of premium aircraft-grade structural aluminum alloy, the Vudu 4-12x36 resets the standard for compact magnification. Measuring an astonishingly brief 7.1 inches in overall length, this ultra-short powerhouse drops cleanly onto condensed receivers without blocking access to charging handles, top-mounted laser designators, or night vision layers. The main 30mm tube houses high-density, low-dispersion XC™ glass elements, fully multi-coated to optimize light transmission, control color fringing, and project crisp, edge-to-edge target profiling through low-light dusk or heavy environmental haze. The entire system features a hard-anodized matte black shell that is completely O-ring sealed and nitrogen-purged to guarantee absolute waterproof, fogproof, and high-impact shock resistance under the heaviest recoil profiles.
In real-world live-fire tracking sequences, the First Focal Plane (FFP) architecture ensures the sophisticated MD5 illuminated MRAD reticle scales proportionally across the entire 4x to 12x magnification spectrum. This means all hash-mark holdovers, ranging subtensions, and windage leads remain 100% accurate at every power setting, removing complex calculation conversion math when seconds count. Fine adjustments are managed through crisp, tactile, low-profile capped turrets featuring 0.1 MRAD clicks. The definitive engineering triumph of the VDU4-12PKG2 is the pre-installed **EFLX™ Mini Reflex Sight** hosted via a custom factory ring-top mount. Positioned as a seamless, verified secondary sight layer, the 3 MOA red dot allows operators to track moving close-range threats with zero parallax and infinite eye relief by simply lifting their cheek weld slightly, locking in absolute multi-tier tactical dominance.
*Armorer Bench Notes & Technical Maintenance Guidance: The EOTECH Vudu Ultra-Short series features a highly versatile integrated mounting baseline that sits natively on standard MIL-STD 1913 Picatinny rails while maintaining structural cross-compatibility with most aftermarket mini-ACOG format mount blocks. Because this system arrives pre-configured from EOTECH’s US tech bay with the EFLX optic securely pinned to the primary scope shell, the user is completely spared the frustration of chasing alignment tolerances or stripping delicate ring hardware in the field. When zeroing this dual-optic network, treat them as two completely separate weapons systems: first, dial in your primary 4-12x scope zero at 100 yards utilizing the capped 0.1 MRAD adjustments; once tracking perfectly true, transition to the top-mounted EFLX and refine its 3 MOA point-of-impact at a closer 25 or 50-yard defensive convergence using its independent 1 MOA click adjustments. Both optics utilize standard CR2032 coin batteries; routinely change the primary scope cell (~300 hours of reticle illumination across 10 rotary settings) during annual preventative maintenance, and use only a dry microfiber cloth to clean the anti-reflective glass lenses to protect their delicate light-transmission layers.
Key Features
- Ultra-Short 7.1-Inch Chassis: Highly compressed physical length frees up massive receiver real estate for forward-mounted clip-on thermal or night vision devices.
- Factory Pick-and-Place EFLX Red Dot: Arrives factory-bundled with a rugged 3 MOA EFLX mini reflex sight mounted via a dedicated ring-top platform for instant close-range transitions.
- First Focal Plane MD5 Reticle: Illuminated MRAD milliradian glass reticle scales proportionally with zoom changes, allowing for precise holdover and ranging calculations at any distance.
- Japanese XC High-Density Glass: Outfitted with premium low-dispersion glass elements treated with advanced anti-reflective coatings for superior edge clarity and low-light performance.
- Capped 0.1 MRAD Turrets: Equipped with low-profile, capped elevation and windage turrets that deliver crisp tactile tracking while isolating internal settings from accidental field displacement.
Product Specifications
- Brand: EOTECH
- Model Line: Vudu® Ultra-Short Variable Performance Optics
- MPN/SKU: VDU4-12PKG2
- UPC: 672294110439
- Magnification Range: 4x – 12x Zoom
- Objective Lens Diameter: 36mm
- Focal Plane Configuration: First Focal Plane (FFP)
- Reticle Pattern: MD5 MRAD Illuminated Reticle
- Main Tube Diameter: 30mm Shroud (Integrated Base Layout)
- Secondary Optic Attachment: EFLX™ 3 MOA Red Dot Sight with Integrated Mount
- Adjustment Graduation Value: 0.1 MRAD Per Click
- Total Elevation Travel Range: ~29 MRAD
- Total Windage Travel Range: ~23 MRAD
- Linear Field of View @ 100 Yds: 4x: 28.5 Feet / 12x: 9.5 Feet
- Eye Relief Windows: 4x: 2.5" - 3.1" / 12x: 2.4" - 3.0"
- Primary Power Configuration: 1x CR2032 Battery (~300 Hours Runtime across 10 Settings)
- Environmental Protection: Nitrogen-Purged, Waterproof, Fogproof, Shock-Resistant
- Overall Unit Length: 7.1 Inches (180.3 mm)
- Riflescope Net Mass: 16.9 Ounces (479 Grams)
- Country of Origin: Riflescope Made in Japan / EFLX Assembled in USA
