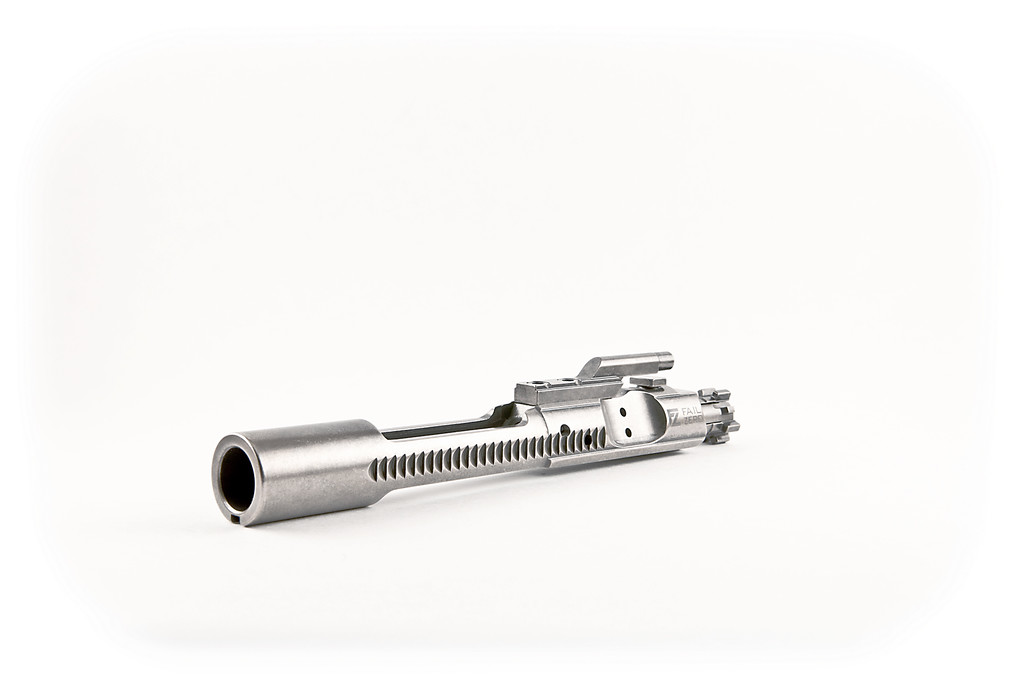

FailZero 6.5 Grendel Type II M16-Profile Factory Assembled Nickel Boron BCG - FZ-6.5-Grendel-01-NH
Product Description
Transitioning an AR-15 from traditional intermediate calibers to the hard-hitting, long-range ballistic profile of the 6.5 Grendel introduces significant mechanical stress to the rifle's operating core. The larger cartridge casing and specialized pressure curves place heavy tax on standard mil-spec bolt assemblies, which were originally scaled for the smaller 5.56 NATO rim. Standard phosphate-coated bolt carrier groups rapidly accumulate thick carbon fouling and gritty powder residue inside the receiver tracks, elevating physical friction, inducing sluggish short-cycling malfunctions, and requiring heavy, wet lubrication to survive extended firing strings. The FailZero 6.5 Grendel Assembled Bolt Carrier Group completely eliminates these operational bottlenecks, delivering a self-lubricating, match-ready core engineered to withstand heavy precision tracking schedules.
Built around a full-mass M16 cut carrier profile, this premium assembly is precision-machined from certified 8620 case-hardened structural steel billet. The matching Type II (.136" recess depth) bolt is meticulously shot-peened, case-hardened, and Magnetic Particle Inspected (MPI) to guarantee complete subsurface metal integrity before leaving the factory line. What establishes FailZero as an industry benchmark is their patented EXO Nickel Boron treatment, molecularly bonded across all critical moving components—including the carrier body, bolt face, extractor, cam pin, gas key, and firing pin. Rather than acting as a superficial plating that can flake or crack under stress, this advanced NiB layer forms a dense, ultra-smooth surface hardness with permanent dry lubricity, protecting the underlying substrate from high-pressure gas erosion and environmental corrosion.
In active live-fire deployment, the FailZero 6.5 Grendel BCG drastically redefines the cyclic smoothness and maintenance profile of your rifle. The drastically reduced coefficient of friction allows the carrier to glide seamlessly inside the upper receiver tracking channels, ensuring uniform dwell times, positive cartridge stripping, and aggressive primary casing extraction during intense thermal curves. The full-mass M16 profile slows down the initial unlock velocity to cushion the recoil impulse, stabilizing your optical sight picture for fast follow-up target indexing. Because the EXO coating prevents baked-on carbon crust from anchoring to the steel, cleanup is reduced to a simple dry-rag wipe-down, completely removing the need for aggressive solvent scrubbing or heavy oils that actively attract field grit.
*Armorer Bench Notes & Technical Maintenance Guidance: This FailZero bolt assembly is machined explicitly to the 6.5 Grendel Type II (.136" bolt face depth) specification, which is the modern industry standard for the caliber; it is also fully compatible with 6mm ARC platforms. It is critical to verify that your rifle barrel utilizes a matching Type II chamber configuration. Mating a Type II bolt to an obsolete Type I barrel creates excessive, highly dangerous headspace defects that can lead to catastrophic receiver failure and injury. During routine armorers' inspections, verify that the dual chrome-moly gas key attachment bolts remain secure and properly staked; if the staking exhibits signs of shifting under high-pressure gas paths, re-stake the metal to lock the key down tightly. While the EXO coating delivers permanent dry lubricity and can run completely dry in emergency situations, applying a single micro-drop of high-quality synthetic oil to the cam pin track and carrier rails will optimize mechanical timing and reduce cyclic harmonic noise.
Key Features
- Patented EXO Nickel Boron Armor: Critical components feature a permanent, molecularly bonded NiB coating providing an ultra-low coefficient of friction and exceptional dry lubricity.
- True Type II Bolt Profile: Meticulously machined with a .136" deep bolt face recess to provide optimal headspacing alignment across modern 6.5 Grendel and 6mm ARC match barrels.
- Full-Mass M16 Carrier Geometry: Precision-ground from 8620 steel to increase cyclic dwell time and dampen the sharp recoil impulse of heavy long-range projectiles.
- Magnetic Particle Inspected (MPI): The case-hardened bolt assembly undergoes rigorous non-destructive MPI testing to ensure the steel is free of micro-fractures or structural defects.
- Drop-In No-Hammer Assembly: Fully built, pinned, and tensioned at the factory to drop directly into any standard mil-spec AR-15 upper receiver with zero hand-fitting required.
Product Specifications
- Brand: FailZero
- Model Line: EXO Coated Performance BCG Series
- MPN/SKU: FZ-6.5-Grendel-01-NH
- UPC: 881314861811
- Caliber/Cartridge Fitment: 6.5 Grendel (Type 2 / Type II Spec) / 6mm ARC
- Carrier Style: Full-Mass M16 Profile Cut
- Carrier Material: 8620 Case-Hardened Carbon Steel
- Bolt Material: Premium Case-Hardened Alloy Steel (Shot-Peened)
- Coating Finish: Patented EXO Nickel Boron (NiB) Coating
- Coated Sub-Components: Bolt, Extractor, Carrier body, Gas Key, Cam Pin, Firing Pin
- Testing Specification: Magnetic Particle Inspected (MPI) & Live-Fire Quality Tested
- Gas Key Fasteners: Grade 8 High-Tensile Screws, Properly Staked
- Country of Manufacture: United States
