Geissele Automatics Super Precision AR-15 Scope Mount 30mm DDC - 05-404S

*CONTACT US FOR A SPECIAL COUPON CODE*

Geissele Automatics Super Precision AR-15 Scope Mount 30mm DDC - 05-404S - UPC 817953020180

Product Description

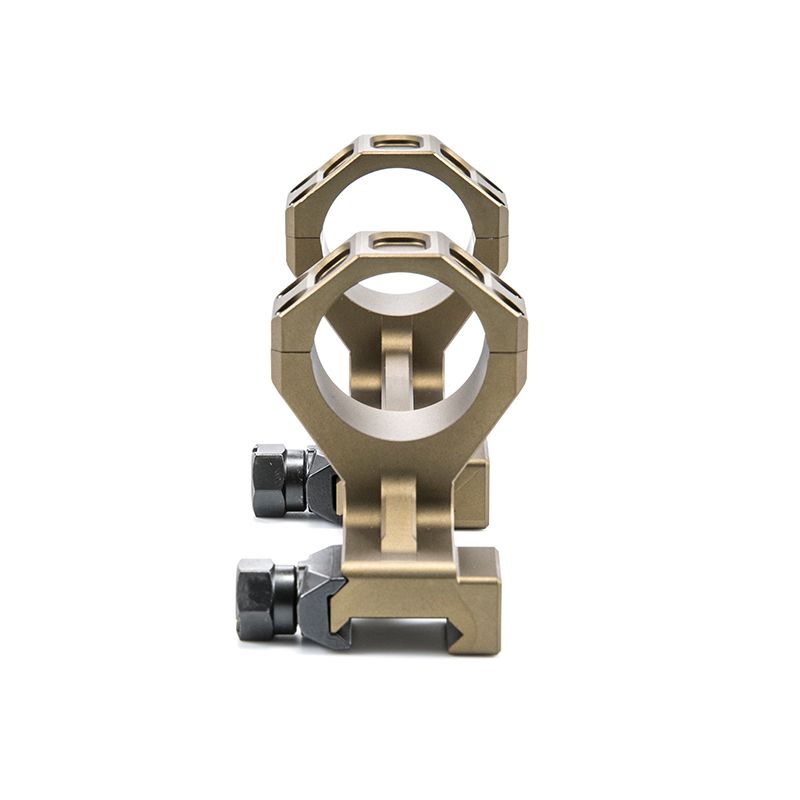

The Geissele Automatics Super Precision AR-15 Scope Mount in Desert Dirt Color (DDC) is engineered for tactical carbine platforms and precision marksman rifles requiring absolute zero retention under hard operational use. Machined from a single solid billet of 7075-T6 aerospace-grade aluminum, this 30mm optic mount provides maximum shear strength, structural rigidity, and thermal stability. Finished in Geissele's proprietary Type III Hardcoat Anodized DDC coating, it delivers superior surface hardness and corrosion resistance while matching modern earth-tone rifle builds.

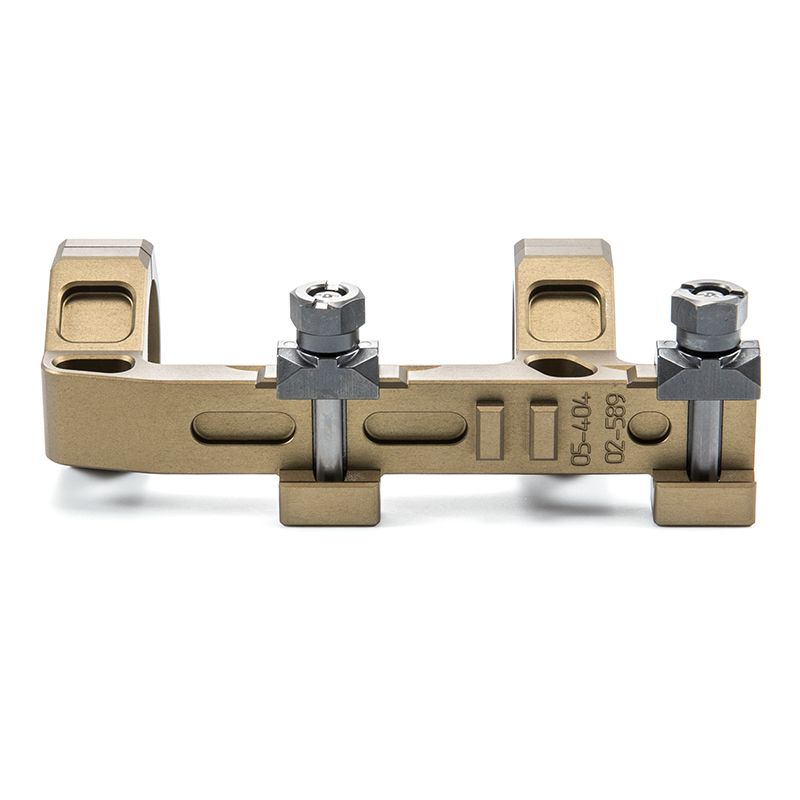

Utilizing Geissele's updated nut-and-bolt rail clamping system, the mount interfaces with MIL-STD-1913 Picatinny rails using four surface-contact shear lugs and two high-strength steel clamping nuts. This clamping architecture generates up to 1,400 lbs of clamping force per nut, ensuring the mount remains immovably locked to your receiver rail despite heavy recoil, vehicle transport, or drop impacts. Each individual ring cap and base body are line-bored together during manufacturing to create near-perfect internal ring roundness, minimizing scope tube stress and eliminating the need for lap fitting prior to mounting optics.

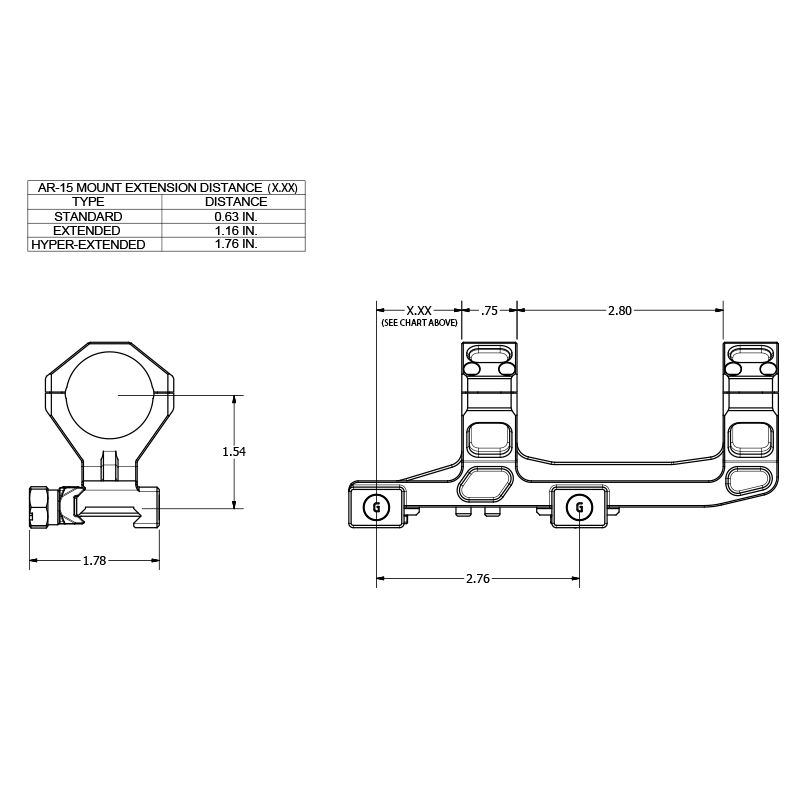

Featuring a standard 1.54-inch optical height and an extended cantilever forward position, the 05-404S delivers optimal eye relief and cheek weld alignment on flat-top AR-15 upper receivers. Whether hosting high-end LPVOs or precision intermediate scopes, this Super Precision mount provides an unyielding, match-grade optical interface engineered for military, law enforcement, and competitive shooting applications.

*Armorer Bench Notes & Real-World Staging Guidance:

Fitment Matrix: Fits 30mm maintube optics mounted on standard MIL-STD-1913 Picatinny receiver rails (AR-15 / M4 flat-top upper receivers). 1.54" height aligns centered with standard iron sight co-witness height.

1. Clean top upper receiver rail and scope tube surfaces with isopropyl alcohol to remove carbon, grease, and oil residues.
2. Place mount base onto the receiver rail, pushing forward toward the muzzle to seat the integrated shear lugs tightly against the Picatinny cross-slots. Tighten the base clamping nuts to 65 in-lbs using a torque wrench.
3. Install scope into bottom ring halves, apply cap screws with a light drop of Blue Loctite 242, and torque ring caps evenly in a cross-pattern to 15–18 in-lbs to prevent scope tube pinching or binding.

Key Features

• 7075-T6 Billet Aluminum Construction: Precision machined from aerospace alloy for maximum shear resistance and structural integrity.
• Desert Dirt Color (DDC) Finish: Type III Hardcoat Anodized surface treatment in Geissele's signature earth-tone finish for low-visibility staging.

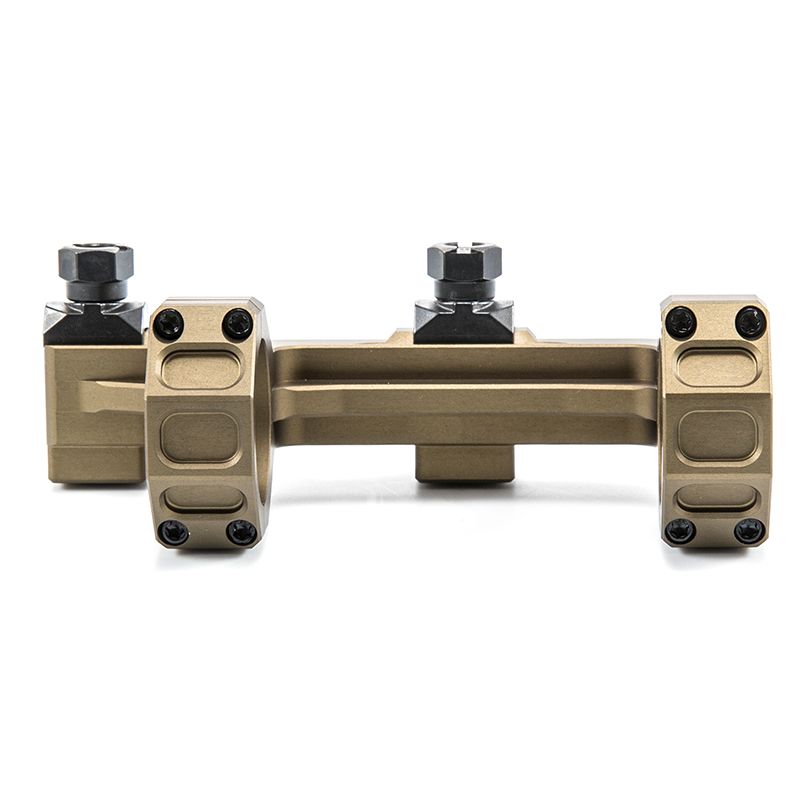

• Line-Bored Precision Rings: Individually matched base and cap pairs ensure perfect roundness and prevent scope tube deformation.
• 1,400 lbs Clamping Force: Dual steel nut clamping system with 4 integrated shear lugs guarantees return-to-zero retention under heavy recoil.
• 1.54" Standard Height & Extended Cantilever: Positions 30mm optics at optimal eye relief and proper cheek weld on flat-top AR platforms.

Product Specifications

• Brand: Geissele Automatics
• Model: Super Precision AR-15 Scope Mount
• MPN: 05-404S
• UPC: 817953020180
• Ring Diameter: 30 mm
• Optical Centerline Height: 1.54 in (3.91 cm)
• Cantilever Extension: Standard Extended
• Material: 7075-T6 Aluminum
• Finish: Type III Hardcoat Anodized Desert Dirt Color (DDC)
• Mount Type: MIL-STD-1913 Picatinny Rail Clamp
