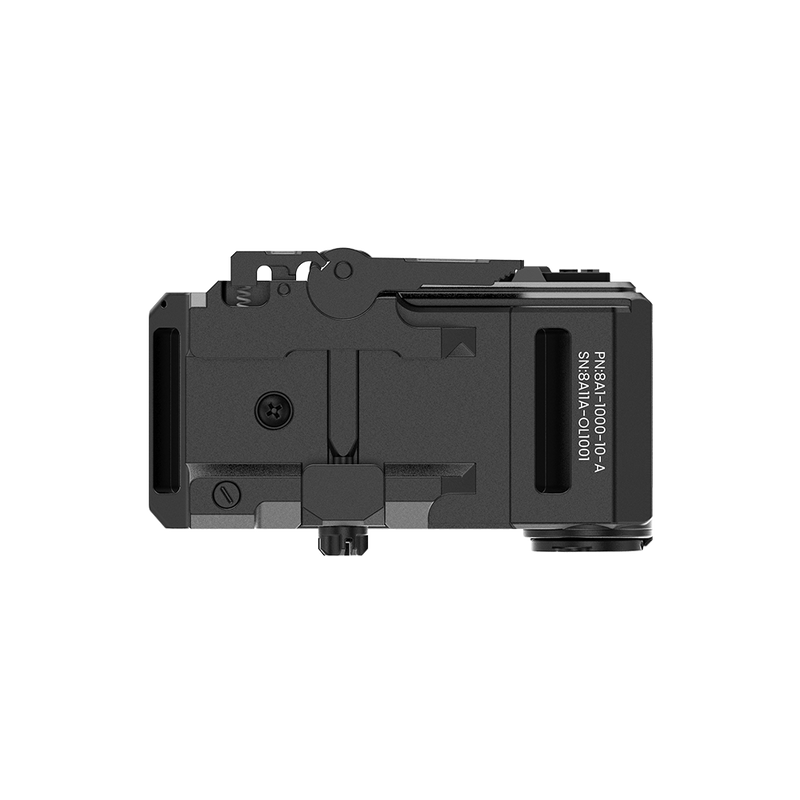

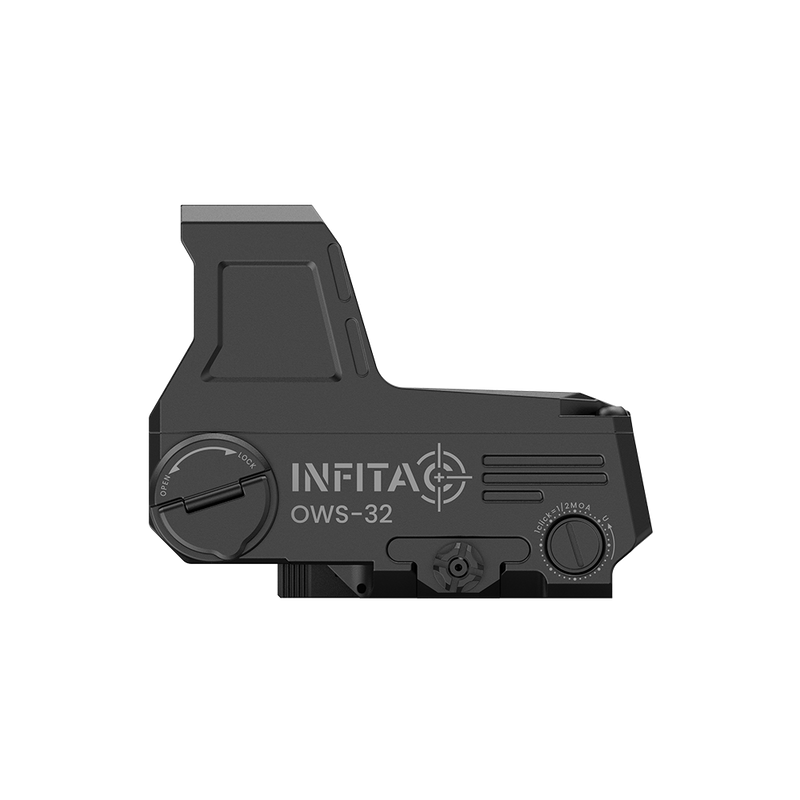

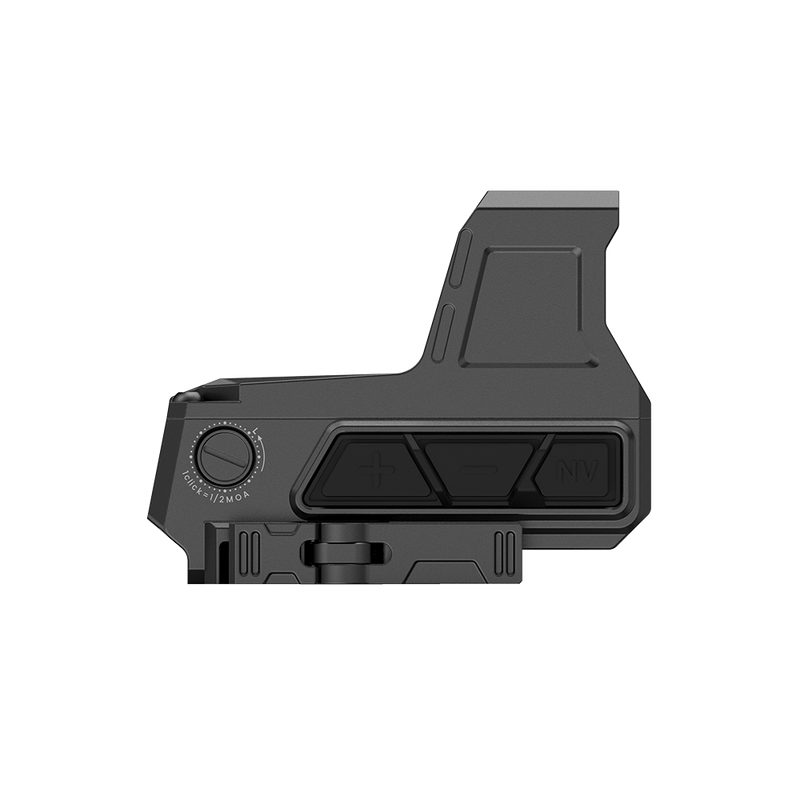

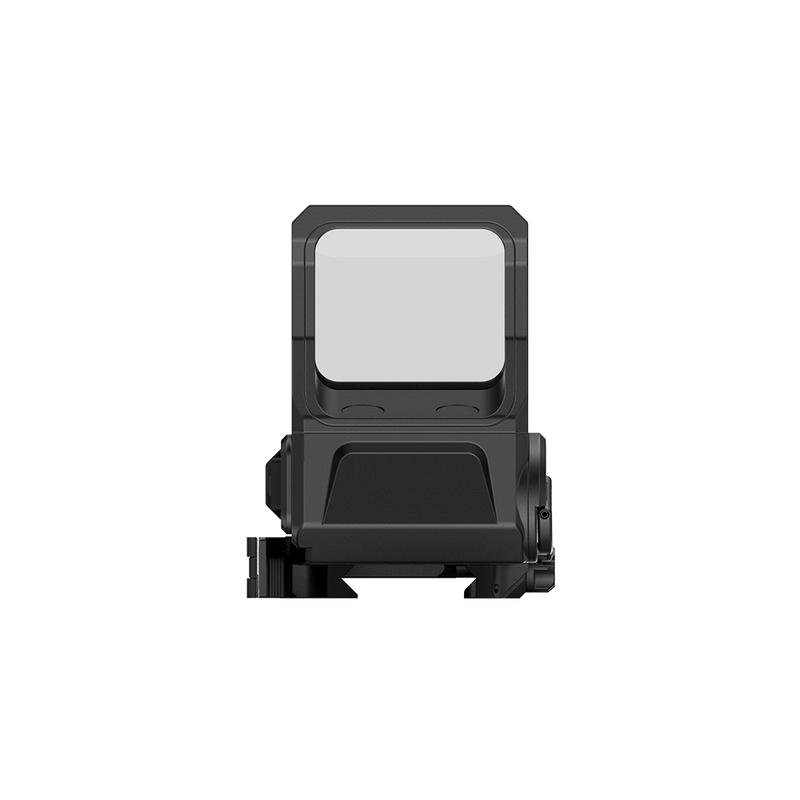

INFITAC USA Optical Waveguide Sight - OWS-32 HUD Glass Reflex Sight, 2 MOA Red Dot & 65 MOA Circle Dot Reticle, Integrated Picatinny Mount, Aircraft-Grade Aluminum Housing, Matte Black Finish - 8A1-1000-10-A / 850067573166
Product Description
Upgrading a hard-use tactical carbine, dynamic home-defense shotgun, or high-volume modern sporting platform requires an optical engine that maximizes situational awareness and target indexing speeds. Traditional enclosed tube-style red dots create a severe "tunnel vision" tube effect that blocks out peripheral tracking lanes, while baseline open reflexes feature delicate glass housings prone to shattering under high-impact drops or heavy field recoil impulses on your bench. The **INFITAC USA® OWS-32 Optical Waveguide Sight (8A1-1000-10-A / 850067573166)** completely flatlines these visual containment and durability limitations, introducing a cutting-edge **Heads-Up Display (HUD) optical waveguide glass matrix** engineered for maximum situational command.
Proudly engineered and torture-tested to extreme recoil metrics by INFITAC USA, the OWS-32 stands apart by utilizing advanced waveguide glass geometry. Rather than projecting an LED beam backward off a curved lens face like standard sights, the waveguide system embeds internal projection layers straight through the glass pane, providing a razor-sharp, distortion-free view with zero parallax error. The robust housing is CNC-machined from high-tensile **6061-T6 structural aircraft-grade aluminum alloy** finished in a non-reflective matte black anodized coating. The internal digital processor handles a versatile **multi-reticle array**—allowing shooters to switch instantly between a precise 2 MOA center dot and a rapid-acquisition 65 MOA circle-dot configuration. Driven by an intelligent battery grid featuring automatic motion-sensing activation loops and ultra-low power draw, this turn-key tactical optic upgrades your targeting accuracy straight from your workbench.
Outfitted with low-profile, click-adjusted windage and elevation dials, and a built-in cross-bolt clamp that mounts to standard mil-spec 1913 Picatinny rails, this factory-calibrated reflex sight ensures absolute tracking stability directly from your workspace bench.
*Armorer Bench Notes & Real-World Optic Staging Guidance: The INFITAC OWS-32 weapon aiming system arrives workspace ready, containing the complete optical waveguide assembly, a pre-installed low-profile Picatinny rail mounting block, 1x adjustment tool driver key, a premium microfiber cleaning cloth, and an illustrated zeroing manual. MIL-STD 1913 PICATINNY RAIL MOUNTING INTERFACE MATRIX: The mounting base tracking lug and cross-bolt screw clamp are engineered natively, strictly, and precisely to anchor onto **standard 1913 Picatinny rail channels**. *Optic Height and Lower 1/3 Co-Witness Checklist:* The OWS-32 chassis is optimized natively for **carbine-length flat-top receiver rails**, setting the optical axis height to line up perfectly for standard cowitnessing arrays with your back-up iron sights on your bench. Armorer Workbench Custom Staging Sequence: 1. Visually and physically confirm your host long gun is completely clear of live ammunition, the magazine is removed, and the fire control chamber is verified empty and safe. 2. Clean your upper receiver\'s Picatinny rail sections with a clean, lint-free cloth to eliminate loose carbon particles or excess storage oils. 3. Position the OWS-32 base down into your preferred rail slots, ensuring the square cross-locking lug seats deep inside the rail channel to handle forward recoil inertia. 4. Use a high-quality hex wrench tool to tighten the side clamping nut clockwise, ensuring the mount locks flush against the rail shoulder. Torque the mounting screw securely to **30 to 35 inch-pounds** on your bench. 5. Thread the primary battery cap off the lateral housing chamber, insert a fresh lithium battery matching the positive orientation marks, and snug the cap back down firmly to seal out dust and moisture. 6. Press the side brightness buttons to activate the reticle, select your preferred dot or circle arrangement, and verify crisp red reticle projection across multiple illumination steps before setting up your zero targets downrange.*
Key Features
- Advanced Optical Waveguide Display: Implements a highly technical heads-up display waveguide window that delivers a perfectly flat, clear view with no target distortion or framing lines.
- Versatile Electronic Multi-Reticle System: Enables seamless digital cycling between a pinpoint 2 MOA aiming dot for precision tracking and a wide 65 MOA circle-dot pattern for rapid close-range indexing.
- Milled 6061-T6 Aluminum Housing: Precision-milled from top-grade aircraft structural aluminum to guard the internal display lens against brutal drop impacts and high recoil energy.
- Motion-Activated Intelligent Power Grid: Features a smart motion sensor that wakes the reticle instantly at the slightest movement and enters sleep mode during periods of inactivity to save battery life.
- Parallax-Free Infinite Eye Relief: The technical lens layout enables lightning-fast target tracking with both eyes open, keeping the reticle locked onto the target regardless of eye position.
- Matte Black Anodized Outer Armor: Encased in a deep Type III hard-coat anodized layer that shrugs off abrasive trail scratches, sweat corrosion, and aggressive chemical bore solvents.
Product Specifications
- Brand: INFITAC USA® (High-Performance Tactical Optics Group)
- Model Line: OWS Series Optical Waveguide Digital Reflex Aiming Systems
- MPN/SKU Code: 8A1-1000-10-A (OWS-32 Red Multi-Reticle Specification Base SKU)
- UPC Code Profile: 850067573166
- Optical Window Architecture: Heads-Up Display (HUD) Waveguide Glass Integration Core
- Reticle Profile Array: Selectable 2 MOA Red Center Aiming Dot / 65 MOA Outer Ring Circle-Dot
- Illumination Brightness Tiers: Multi-Step Adjustable Digital Control Buttons (Daylight & NV Settings)
- Chassis Interface Capability: Integrated Low-Profile Cross-Bolt Base Mount for MIL-STD 1913 Picatinny Rails
- Windage / Elevation Click Adjustments: 0.5 MOA Per Audible Click Mechanical Adjustment Detents
- Structural Material Base: Precision CNC-Machined Solid 6061-T6 Aircraft Grade Structural Aluminum Alloy
- Exterior Finish Dressing: Non-Reflective Matte Black Mil-Spec Type III Hard-Coat Anodized Shield
- Power Supply Architecture: Powered by Standard High-Energy Lithium Cell Battery Grid
- Battery Management Loop: Smart Motion-Sensing Sleep/Wake Optimization Automation
- Full Kit Component Checklist: 1x OWS-32 Optic, 1x Hex Mounting Wrench, 1x Microfiber Cloth, User Setup Manual
- Packaging Format Class: Factory Original Sealed INFITAC Branded Premium Foam-Lined Retail Spec Box
- Product Type Category: Shooting Accessories / Heads-Up Display Reflex Sights & Red Dot Optics
- Optical Window Lens Sizing: ~32 mm Diagonal Large-View Clear Aperture Target Window
- Overall Structural Unit Width: ~1.85 Inches (~47.0 mm Wide-View Exterior Shell Profile)
- Overall Physical Component Length: ~3.65 Inches (~92.7 mm Total Assembled Linear Footprint Space)
- Net System Operating Mass: ~6.80 Ounces (~192.7 Grams Compact High-Strength Balanced Optic Weight)
- Environmental Protection Class: Weatherproof Sealed Housing / Impact-Resistant / Fog-Proof Glass Core
- Warranty Tracking Protection: Fully Backed by INFITAC USA Factory Product Materials Guarantee
