JP Enterprises Gen 2 Silent Captured Buffer Spring System AR 15 Standard Version Builder Kit with 5 Weighted Springs Spacer JPSCS2 15K UPC 812872024011
Product Description
The JP Enterprises® Gen 2 Silent Captured Spring (SCS) Builder's Kit for AR-15 platforms (SKU: JPSCS2-15K / UPC: 812872024011) eliminates traditional buffer tube friction and mechanical cycling rasp, replacing legacy Mil-Spec spring-and-plunger configurations with an integrated, ultra-refined recoil management module. Designed specifically for competitive match shooters, precision gas-gun operators, and tactical builders, the patented SCS design transforms the cycling impulse of the AR-15 platform. By completely isolating the reciprocating mass from the inner walls of the receiver extension, the SCS eradicates the notorious "cheese grater" twang and harmonic rattle, yielding an exceptionally smooth cycle and virtually instantaneous sight recovery.
Engineered around JP's second-generation architectural updates, this system features a precision-machined 7075-T6 aluminum center guide rod that significantly reduces total non-reciprocating weight while maintaining rigid axial alignment. The reciprocating mass assembly incorporates three precision-turned 416 stainless steel weights separated by synthetic elastomer O-rings, a configuration engineered to eliminate metal-on-metal impact, dissipate energy harmonics, and prevent destructive bolt bounce during high-speed lockup. The Builder's Kit includes five alternate-rate ground and polished operating springs, allowing armorers and shooters to systematically dial in cyclic velocity to match lightweight bolt carriers, adjustable gas blocks, suppressor backpressures, or sub-minor custom handloads.
Every JPSCS2-15K assembly ships ready for deployment in standard carbine-length receiver extensions, as well as A1/A2 full-length fixed rifle tubes via the included drop-in synthetic spacer sleeve. Because the entire recoil assembly is self-contained on its internal guide rod, installation requires no interaction with traditional buffer retainer pins, eliminating the danger of loose retaining pins migrating into the fire control group during cycling. Whether optimizing an ultralight 3-Gun rifle for flat-tracking split times or tuning a dedicated suppressed patrol carbine, the JP Silent Captured Spring Builder's Kit provides peerless mechanical refinement and uncompromised cycling reliability.
*Armorer Bench Notes & Real-World Staging Guidance:*
Fitment Matrix: Direct fit in all standard 7.00-inch Mil-Spec carbine receiver extensions and 9.50-inch rifle-length buffer tubes (using the included spacer). Compatible with AR-15 multi-caliber gas platforms (.223/5.56, .300 BLK, 6.5 Grendel, 6.8 SPC, 350 Legend). CRITICAL: NOT compatible with large-frame AR-10 / DPMS LR-308 platforms, NOT compatible with solid 9mm blowback bolt carriers, and NOT compatible with legacy PWS long-stroke piston carriers due to rear carrier bore restrictions. If utilizing a VLTOR A5 extension tube (7.75-inch depth), you MUST purchase the specialized JP A5 spacer (JPSCS2-SPACER-A5). When changing alternate springs, ALWAYS clamp the guide rod cross-hole securely to safely capture the 15-lb spring pre-load, apply Loctite® 243 to the T25 Torx guide rod screw, torque firmly, and allow a full 24-hour cure before live fire.
- Ensure the host firearm is completely clear, magazine removed, bolt locked back, chamber visually and physically confirmed empty, and all live ammunition removed from the armorer bench.
- Depress the existing buffer retainer pin, remove the factory buffer and recoil spring, and (optionally) unscrew the receiver extension to remove the traditional buffer retainer pin and spring entirely for easier SCS maintenance.
- Select your required operating spring rate from the 5-pack (factory standard is 85% Black); if swapping springs, clamp the guide rod flats or insert a punch into the guide rod cross-hole, remove the T25 Torx screw, swap springs, apply Loctite® 243, and torque the screw securely.
- For carbine-length receiver extensions, slide the SCS assembly directly into the buffer tube with the bumper facing rearward toward the stock; for rifle-length A1/A2 tubes, slide the included JP spacer sleeve into the buffer tube first, followed by the SCS unit.
- Close the upper and lower receivers, cycle the charging handle manually to confirm full stroke travel and positive bolt catch engagement on an empty magazine, execute a dry-fire function check, and stage for gas-system tuning at the range.
Key Features
- Patented Self-Contained Recoil Module: Eliminates conventional buffer spring drag against the buffer tube walls, silencing cyclic resonance and eliminating spring "twang."
- Gen 2 Lightweight Aluminum Guide Rod: Precision CNC-machined 7075-T6 aluminum center mandrel reduces non-reciprocating mass while ensuring straight-line cycling stroke.
- Elastomer-Dampened Buffer Mass: Three 416 stainless steel masses (standard carbine equivalent) are isolated with synthetic O-rings to eliminate metal impact and prevent bolt bounce.

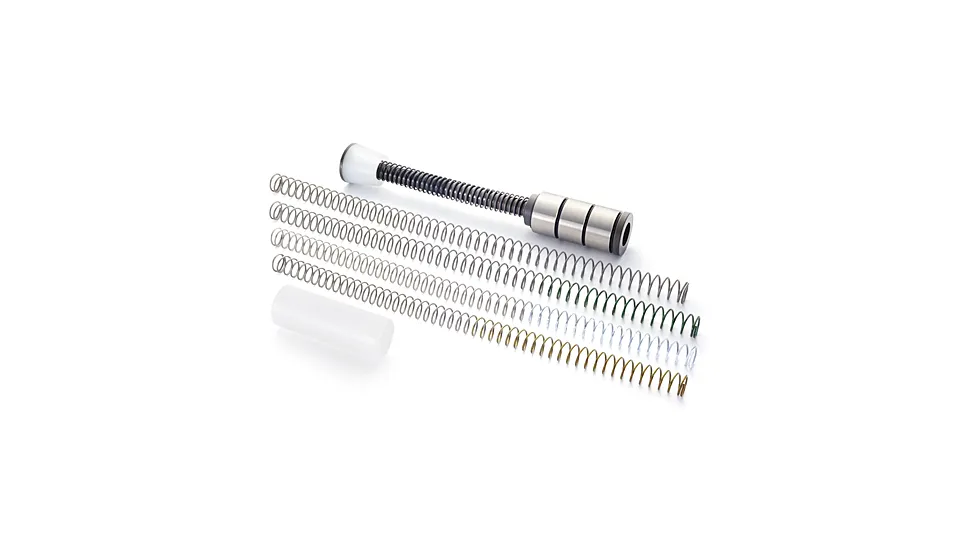

- 5-Spring Builder Tuning Pack: Includes five distinct color-coded spring rates (80%, 85%, 90%, 95%, and 100%) to precisely harmonize gas volume, carrier mass, and cartridge power factor.
- Universal Carbine & Rifle Adaptability: Drops directly into 7.0-inch carbine receiver extensions or pairs with the included spacer for 9.5-inch fixed rifle receiver extensions.
- Drop-In Installation: Functions with or without a factory lower receiver buffer retaining pin, facilitating effortless takedown and field maintenance.
Product Specifications
- Brand: JP Enterprises®
- Model/Series: Gen 2 Silent Captured Spring™ (SCS) Builder's Kit
- MPN / SKU: JPSCS2-15K / JPSCS215K
- UPC: 812872024011
- Platform Compatibility: AR-15 / Small-Frame MSR Receivers (.223/5.56, .300 BLK, 6.5 Grendel, etc.)
- Buffer Tube Compatibility: Mil-Spec Carbine (7.00 in) & Rifle-Length (9.50 in with included spacer)
- Guide Rod Metallurgy: 7075-T6 Hardcoat Anodized Aluminum
- Reciprocating Mass Configuration: 3 Steel Masses (416 Stainless Steel, Standard Weight)
- Reciprocating Buffer Mass: Approx. 3.0 oz (Standard Carbine Buffer Equivalent)
- Included Spring Rates: 80% (White), 85% (Black - Installed), 90% (Green), 95% (Yellow), 100% (Plain)
- Fastener Interface: 10-32 x 1/2 in T25 Torx Guide Rod Retaining Screw
- Country of Origin: United States of America
