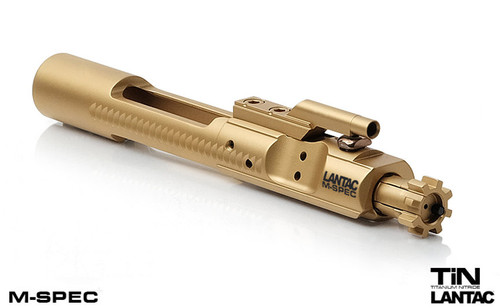

LanTac USA® M-SPEC® 5.56/.223 Bolt Carrier Group – M16 Profile – Gold Titanium Nitride Finish – 01-MSPEC-556-TIN-BCG
The LanTac USA® M-SPEC® 5.56/.223 Bolt Carrier Group (01-MSPEC-556-TIN-BCG) is an elite, professional-grade core cycling component precision-engineered to raise the performance envelope of AR-15 and M16 rifle systems well past standard military ratings. While basic mil-spec bolt carrier groups typically rely on coarse, high-friction manganese phosphate coatings that hold onto carbon fouling and drag down tracking speed—often causing sluggish cycles or out-of-battery failures during heavy training volumes—the LanTac M-SPEC layout thoroughly solves those liabilities. This high-performance premium tracking hub (640117876282) introduces deliberate technical improvements to maximize extraction timing and cycling smoothness, combining an ultra-slick, eye-catching gold barrier with a highly competitive, budget-conscious price point.
The structural foundation of this operational asset starts with a full-mass, M16-profile full-auto carrier machined from premium 8620 case-hardened steel. After heat treatment, every critical internal and external tracking wall is precision-ground and hard-turned to eliminate micro tool marks, ensuring absolute dimensional compliance with exacting blueprints. Instead of traditional porous phosphate, the entire assembly is encased in a premium, high-density Gold Titanium Nitride (TiN) finish. This specialized physical vapor deposition armor significantly boosts surface hardness, reduces mechanical drag to a bare minimum, and simplifies clean-up by preventing baked-on carbon from welding to the metal tail. The bolt assembly itself is precision-ground from choice Carpenter 158 or 9310 structural steel, shot-peened to relieve molecular surface stresses, and stringently Magnetic Particle Inspected (MPI) to guarantee zero subsurface stress fractures or micro-fissures.
The true standout engineering enhancement of the LanTac M-SPEC line is its factory integration of the patented **CP-R360™ Domed Head Cam Pin**. Precision-machined from ultra-tough 17-4PH stainless steel and hardened to an H900 condition, its hand-polished, completely rounded head effortlessly glides through the upper receiver's cam track. This proprietary rounded shape eliminates the aggressive internal gouging, scraping, and receiver-wall friction common to flat-sided mil-spec cam pins, making the entire manual charging stroke feel incredibly smooth. Completed with an expertly four-point staked gas key secured by high-tensile Grade 8 fasteners, this American-made workhorse delivers unyielding structural durability across high-cadence tactical rigs, hard-use patrol carbines, and custom suppressor-ready builds.
Includes: (1) LanTac USA M-SPEC 5.56/.223 M16 Bolt Carrier Group (Gold Titanium Nitride), (1) Carpenter 158/9310 MPI Bolt Assembly, (1) Pre-Installed CP-R360 Stainless Domed Cam Pin, and Factory QC Inspection Sheet.
*Technical Coating Maintenance Tip: The Titanium Nitride (TiN) armor finish provides extreme surface hardness and a low coefficient of friction. To preserve the vibrant, mirror-like gold finish, avoid the prolonged use of aggressive, abrasive copper solvents or wire wire brushes on the exterior carrier flats. Simple nylon brushes and standard carbon-clearing CLPs are all that is required to wipe the carrier down to its factory luster.
Key Features
- Slick Gold Titanium Nitride Armor: High-density TiN chemical armor yields an incredibly smooth, low-friction surface that resists high powder heat, limits friction drag, and wipes clean effortlessly.
- Patented CP-R360™ Domed Cam Pin: Includes a hand-polished 17-4PH stainless steel rounded cam pin that completely stops internal receiver wear, ensuring a buttery-smooth manual action.
- Full-Mass M16 Combat Profile: Delivers the ideal carrier mass needed to extend dwell times, softening perceived recoil and smoothing out extraction cycles under high pressure.
- Shot-Peened & MPI Inspected Bolt: Every Carpenter 158 or 9310 steel bolt face is bombarded with high-velocity shot to densify the metal grain, then magnetically tracked to verify structural perfection.
- Fail-Safe Staked Gas Key: True duty-grade gas key assembly is secured using hardened Grade 8 fasteners and deep four-point metal displacement staking to ensure it never gas-leaks or vibrates loose.
- Elite American Manufacturing: Completely machined, heat-treated, finished, and hand-assembled in the United States to ensure flawless mechanical compliance with demanding field use.
Product Specifications
- Brand: LanTac USA® (Fort Worth, TX)
- Product Line: M-SPEC® Enhanced Duty Component Series
- Model Name: M-SPEC 5.56/.223 TiN BCG
- SKU / MPN: 01-MSPEC-556-TIN-BCG
- Firearm Platform System: Standard AR-15, M4, M16 Pattern Upper Receivers
- Cartridge Caliber Accommodation: 5.56x45mm NATO / .223 Remington / 300 AAC Blackout
- Carrier Profile Style: M16 Full Auto Profile (Increased Mass & Dwell Time)
- Carrier Core Material: 8620 Premium Case-Hardened Steel
- Bolt Steel Chemistry: Carpenter 158 or 9310 Carbon Steel Alloys
- Cam Pin Infrastructure: CP-R360™ Domed 17-4PH Stainless Steel (Hardened to H900)
- Surface Treatment Finish: Physical Vapor Deposition (PVD) Gold Titanium Nitride (TiN)
- Quality Assurance Matrix: Shot-Peened Core & Magnetic Particle Inspected (MPI)
- Gas Fastener Assembly: Properly Staked Grade 8 Hardened Hex Bolts
- Gas Ring Spec: Standard Mil-Spec Triple Stainless Helix Ring Array
- Country of Origin: Proudly Made in the USA
- Product Dimensions: 7.70″ (L) x 1.00″ (W) x 1.40″ (H)
- Product Net Assembly Weight: ~12.00 oz (340.2 g)
- UPC: 640117876282
