LaRue Tactical® LT807-30 Unibody QD Tactical Scope Mount – 30mm Ring Diameter – 1.375" Center Height – LT807-30

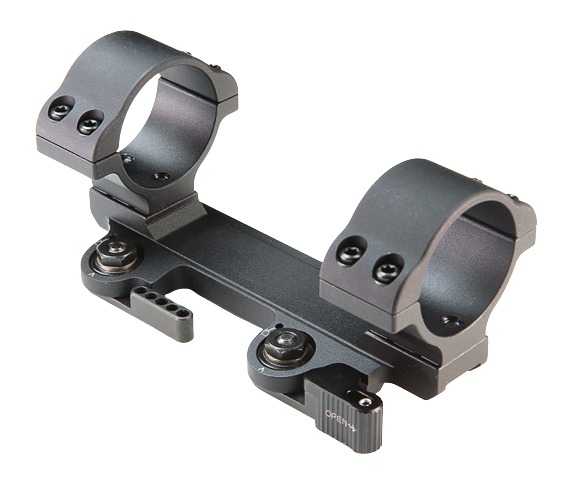

The LaRue Tactical® LT807-30 Precision Quick-Detach 30mm 1-Piece Rifle Scope Mount (LT807-30) represents an elite, military-grade engineering milestone in rugged optical indexing, meticulously machined in Leander, Texas, to satisfy the uncompromising zero-repeatability mandates of elite tier-one operators and long-range marksmen. While standard multi-piece scope rings can experience separate structural flex, uneven side-clamping stress, and catastrophic zero deviation following severe field impacts or rough vehicle transport, the LaRue unibody block completely overhauls tracking architecture. This legendary, 100% American-made component (810143180916) balances massive clamping authority with a rapid-release quick-detach framework, serving as an exceptional primary asset for tactical carbines, designated marksman rifles (DMR), and precision bolt-action platforms.
The structural foundation of this battle-proven platform is precision CNC-machined from a single, monolithic block of premium aircraft-grade aluminum alloy. Treated to an advanced, non-reflective **Mil-Spec hardcoat anodizing**, the frame easily shrugs off deep field abrasions, chemical weapon solvents, and harsh environmental weather spikes. The defining technical layout of the LT807 blueprint is its specialized **1.375-inch optic centerline height**, which delivers an ideal tactical cheek weld on flat-top receiver rails while ensuring comfortable co-witness clearance lines. Boasting a highly generous **2.90-inch internal ring spacing structure**, the mount is specifically contoured to effortlessly house modern, oversized main turret blocks and high-end variable optoelectronic setups without creating physical housing pinch lines.
The true operational highlight of this tactical workhorse lies in its patented, multi-lug connection architecture and dual quick-detach lever configuration. The bottom alignment base is outfitted with a **built-in, full-width recoil lug** that interfaces squarely into Picatinny rail slots, absorbing harsh linear counter-recoils from heavy payloads. Secured to the rail via **LaRue’s patented dual QD lever system**, the mount permits users to detach and re-index their primary optic in seconds with toolless fluid momentum, guaranteeing **dead-on repeatable return-to-zero tracking performance**. Guided smoothly by a robust, multi-screw ring cap configuration that distributes torque pressures uniformly across the 30mm tube boundaries, this 7.00-ounce tactical milestone delivers absolute mechanical authority.
Includes: (1) LaRue Tactical LT807-30 QD 30mm Monolithic Scope Mount, Adjustment Wrench Instrument, T15 Torx Mounting Screws, High-Tier Thread Locking Compound, and Factory Original Branded Retail Packing.
*LaRue QD Lever & Scope Clamping Tension Guidance: To secure flawless return-to-zero performance and protect your 30mm main tube from internal scoring lines, always adhere to LaRue's strict factory installation mandates. Use the included wrench to adjust the quick-detach cam levers so they lock firmly over your Picatinny rail with positive mechanical resistance, ensuring they cannot be bumped loose by field foliage. Additionally, cross-torque the upper ring cap screws incrementally using a calibrated driver set to exactly **15-18 in-lbs**; avoid over-tightening to prevent pinching internal lens cells.
Key Features
- Patented Quick-Detach Lever System: Dual toolless QD cam levers allow operators to drop or re-attach their primary optic in seconds with true return-to-zero reliability.
- Monolithic Unibody Block Core: Precision tool-machined from a single billet of aircraft aluminum to eliminate independent ring twist and maximize tracking rigidity.
- Tactical 1.375" Centerline Height: Optimized height positions the scope axis flawlessly for a rapid, natural cheek weld while accommodating large objective bells.
- Generous 2.9" Internal Ring Gap: Spacious intermediate ring clearance provides plenty of real estate to accept large, modern tactical turret bodies with ease.
- Integrated Heavy-Duty Recoil Lug: Built-in bottom alignment block interfaces directly with rail slots, fully absorbing severe directional impact energy pulses.
- Proudly Built in Leander, Texas: Tooled, stress-vetted, and surface-treated under strict Texas manufacturing protocols to satisfy demanding military duty lifecycles.
Product Specifications
- Brand: LaRue Tactical® (Leander, TX, USA)
- Product Line: Premium Quick-Detach Monolithic Mounting Systems
- Model Name: LT807 Tactical QD Scope Mount - 30mm
- SKU / MPN: LT807-30 (Alternative Factory Identifiers: LT80730 / LAR-LT807-30)
- Optic Tube Compatibility: 30 mm Diameter Main Tubes Only
- Optic Centerline Height: 1.375 Inches (34.92 mm) - Standard Proper Tactical Cheek Weld Height
- Mount Configuration Style: 1-Piece Monolithic Fixed Cantilever Bridge
- Primary Mounting Attachment: Dual Quick-Detach Lever System (Mil-Spec MIL-STD-1913 Picatinny Compatible)
- Internal Ring Span Distance: 2.90 Inches (73.66 mm) - High Turret Clearance Format
- Material Base Class: Monolithic CNC-Machined High-Strength Structural Aircraft Aluminum
- Surface Coating Finish: Matte Black Hardcoat Anodized Protective Coating
- Hardware Matrix: High-Tensile Steel Ring Cap Hex Screws / Adjustable Cam Plates
- Base Lock System Type: Dual Adjustable Friction Locking Throw Levers
- Product Net Assembly Weight: ~7.00 oz (198.4 g) - Heavy-Duty Precision Footprint
- Total Packaging Box Mass: ~0.90 lbs (Enclosed Inside Secure Padded Factory Wrap Box)
- UPC Barcode: 810143180916
