Leupold Mark 4HD Rifle Scope 6 24X Magnification 52mm Objective 34mm Main Tube Diameter Illuminated PR3 MIL Reticle Matte Finish Black First Focal Plane 188843 UPC 030317059798
Product Description

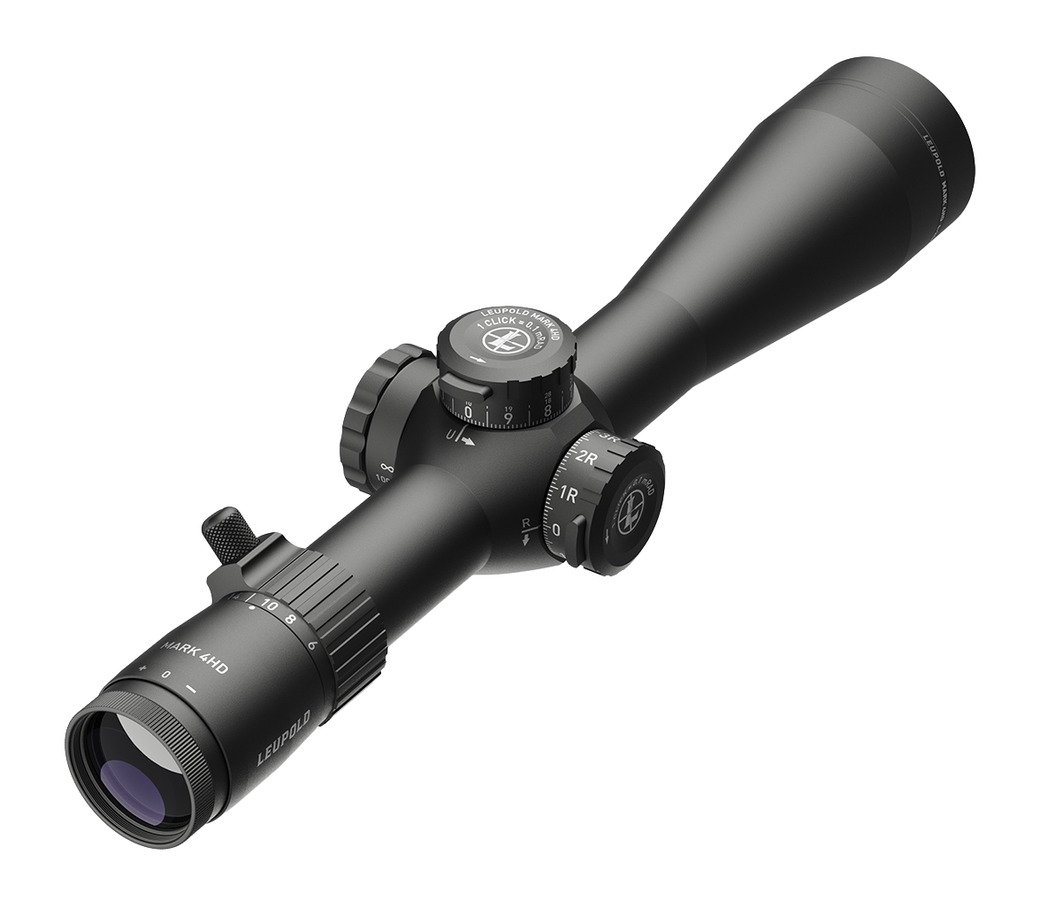

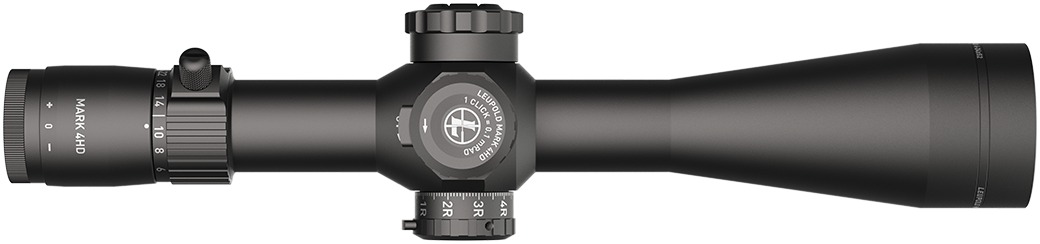

The Leupold® Mark 4HD™ 6-24x52mm M5C3 FFP Riflescope with Illuminated PR3-MIL Reticle (SKU: 188843 / UPC: 030317059798) brings legendary military-grade heritage and cutting-edge optical performance to precision rifle competitors, extreme long-range hunters, and tactical marksmen. Built around Leupold’s Professional-Grade Optical System, this high-magnification optic delivers class-leading light transmission, exceptional edge-to-edge clarity, and unmatched glare reduction even in direct, harsh sun or dusk lighting environments.
Featuring a massive 34mm maintube machined from a single piece of 6061-T6 aircraft aluminum, the 188843 offers up to 125 MOA / 36.4 MIL of elevation adjustment travel to dial out to extreme distances. It is outfitted with Leupold’s M5C3 ZeroLock® 3-turn tactical elevation dial, delivering precise, tactile 0.1 MIL clicks with a push-button zero stop that prevents accidental dial movement. The side-focus parallax dial adjusts down to 25 yards, ensuring tack-sharp target focus and eliminated parallax error at close and extended ranges alike.

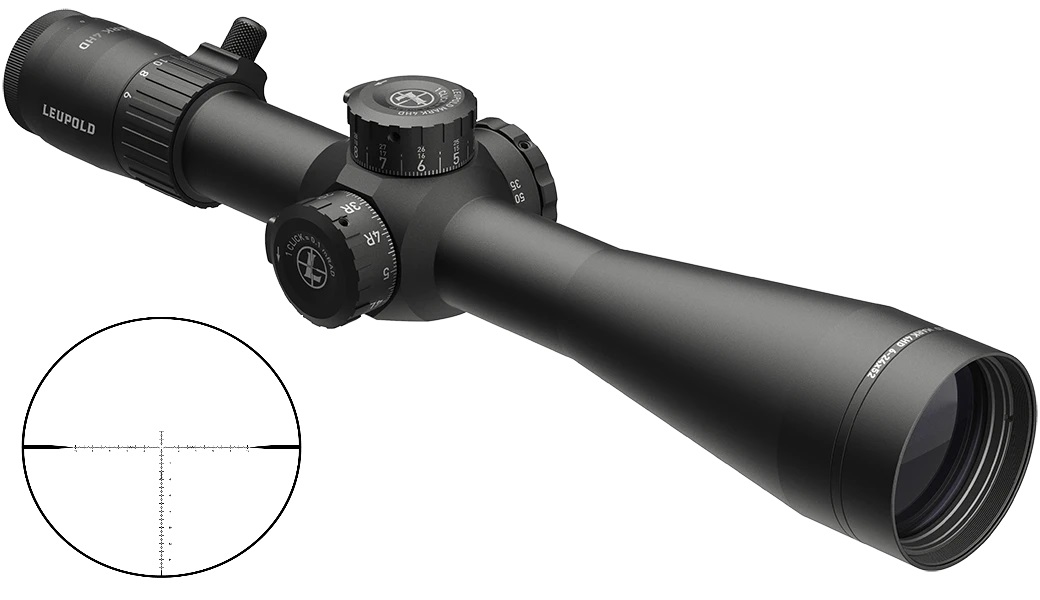

Positioned in the First Focal Plane (FFP), the illuminated PR3-MIL reticle scales proportionately throughout the entire 6x to 24x magnification range for precise holdovers and range estimation at any zoom setting. Leupold’s advanced push-button illumination includes 8 brightness settings, Motion Sensor Technology (MST™) that auto-deactivates the reticle after 5 minutes of inactivity to preserve battery life, and an integrated electronic reticle level. Completely waterproof, fogproof, and tested to the brutal standards of Leupold’s Punisher recoil simulator, the Mark 4HD 188843 is engineered to dominate any precision shooting platform.
*Armorer Bench Notes & Real-World Staging Guidance:*
Fitment Matrix: Requires heavy-duty 34mm scope rings or a 34mm one-piece cantilever mount suitable for the 52mm objective bell diameter. Ideal for bolt-action precision rifles (PRS/NRL), large-frame AR-10 / SR-25 platforms, and ELR setups. When mounting, ensure ring base clearance accounts for the 52mm objective bell. Follow Leupold torque recommendations: 15–18 in-lbs on ring caps, 65 in-lbs on cross-bolts to Picatinny base. Do NOT exceed 20 in-lbs on the maintube ring caps.
- Ensure the host firearm is completely clear, magazine removed, and chamber visually and physically verified empty.
- Level the rifle in a solid gun vise and mount high-quality 34mm scope rings to your Picatinny rail.
- Set the Mark 4HD into the bottom ring halves, set proper eye relief (3.8" to 4.0") at 24x magnification, and level the scope body using feeler gauges or reticle levels.
- Torque the ring cap screws in an alternating X-pattern to 15–18 in-lbs. Install the included CR2032 battery into the illumination turret cap and verify side focus calibration before zeroing.
Key Features
- Professional-Grade Optical System: Provides elite light transmission, high-definition contrast, and superior glare mitigation in harsh lighting.
- First Focal Plane (FFP) Illuminated PR3-MIL Reticle: Reticle subtensions remain completely accurate for ranging and holdovers across all 6x–24x magnifications.
- Motion Sensor Technology (MST™): Auto-shuts off illumination after 5 minutes of stillness and wakes up instantly upon motion detection to preserve CR2032 battery life.
- Integrated Electronic Reticle Level: Reticle flashes to alert shooters when the rifle is canted, ensuring dead-level long-range accuracy.
- 34mm Aircraft-Grade Maintube: Delivers massive elevation travel (up to 36.4 MIL / 125 MOA) for extreme long-range trajectory compensation.
- M5C3 ZeroLock® Elevation Turret: Low-profile 3-turn tactical dial with 0.1 MIL clicks, visual/tactile rev counter, and push-button zero-lock mechanism.
- 25-Yard Side Focus Parallax: Smooth side focus adjustment from 25 yards to infinity eliminates parallax error on rimfire, centerfire, and ELR setups.
- Punisher-Tested Ruggedness: Fully waterproof, fogproof, and shock-tested to withstand thousands of high-energy magnum recoil impulses.
- Includes Reversible Throw Lever: Removable power throw lever allows rapid, effortless magnification transitions with bare or gloved hands.
- Guaranteed for Life: Proudly designed, machined, and assembled in the United States by Leupold.
Product Specifications
- Brand: Leupold®
- Model/Series: Mark 4HD™ 6-24x52mm M5C3 FFP Illuminated
- MPN / SKU: 188843 / 188843
- UPC: 030317059798
- Magnification Range: 6x – 24x
- Objective Lens Diameter: 52mm
- Maintube Diameter: 34mm
- Focal Plane: First Focal Plane (FFP)
- Reticle: Illuminated PR3-MIL (Push-Button, 8 Brightness Settings)
- Elevation Dial Type: M5C3 ZeroLock® (0.1 MIL / Click, 30+ MIL Total Travel)
- Windage Dial Type: Capped 0.1 MIL Adjustment
- Elevation Adjustment Range: 36.4 MIL (125 MOA)
- Windage Adjustment Range: 18.9 MIL (65 MOA)
- Parallax Adjustment: Side Focus (25 Yards to Infinity)
- Eye Relief: 3.8" – 4.0" (97mm – 102mm)
- Field of View @ 100 Yards: 17.3 ft (at 6x) – 4.7 ft (at 24x)
- Battery Type: CR2032 Coin Cell (Included)
- Length: 14.6 Inches
- Weight: 27.5 oz (779.6 g)
- Material: 6061-T6 Aircraft-Grade Aluminum
- Finish/Color: Matte Black
- Country of Origin: United States
