Leupold Mark 5HD 5-25x56mm FFP PR1-MOA Dark Earth Scope - 185070

*CONTACT US FOR A SPECIAL COUPON CODE*

Leupold Mark 5HD 5-25x56mm FFP PR1-MOA Reticle Dark Earth Riflescope - 185070 - UPC 030317040291

Product Description

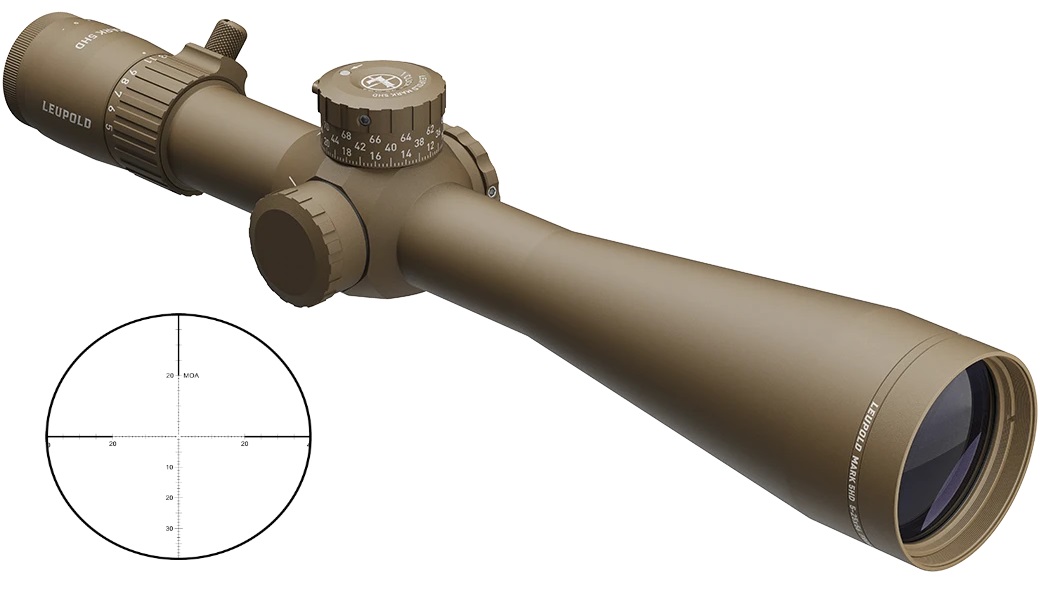

The Leupold Mark 5HD 5-25x56mm Riflescope (185070) in Dark Earth (DE) is a premier long-range optical system engineered for competitive precision shooters, long-range hunters, and tactical operators. Designed around a massive 35mm maintube and a high-grade 56mm objective lens, the Mark 5HD delivers exceptional light transmission, edge-to-edge clarity, and up to 120 MOA of total internal elevation travel. Up to 20 ounces lighter than comparable optics in its class, this optic provides a distinct physical advantage on precision rifle setups without sacrificing structural durability.

Featuring a First Focal Plane (FFP) PR1-MOA reticle, subtensions remain accurate across the entire 5-25x magnification range, allowing precise holdovers, wind corrections, and range estimation at any power setting. The elevation turret incorporates Leupold's patented M1C3 ZeroLock® system, providing tactile 1/4 MOA click adjustments with three full turns of elevation travel, visual/tactile push-button revolution indicators, and an absolute zero stop to prevent lost-zero confusion during dynamic engagements.

Crafted with Leupold's Professional-Grade Optical System and finished in a durable Dark Earth hardcoat anodized surface, the Mark 5HD handles severe glare, harsh environmental conditions, and extreme recoil impulses from heavy magnum calibers. Complete with an integrated high-speed throw lever for rapid magnification changes, this scope represents the pinnacle of American-made long-range optical performance.

*Armorer Bench Notes & Real-World Staging Guidance:

Fitment Matrix: Requires 35mm scope rings or a 1-piece 35mm tactical mount (e.g., Badger Ordnance C1 or Spuhr 35mm mounts). Note: Due to the 56mm objective bell diameter and 35mm tube dimensions, ensure proper ring height clearance (typically 1.35" to 1.54" height depending on rail cant) to clear heavy barrel contours or night vision/thermal clip-on rails.

1. Verify the rifle is verified safe, clear, and unloaded before starting installation.
2. Mount 35mm scope rings onto the Picatinny rail and set the Mark 5HD into the lower ring cradles. Adjust eye relief at 25x magnification in your natural prone shooting position.
3. Level the reticle using a precise bubble level or plumb line, and torque ring cap screws evenly in a cross pattern to manufacturer specifications (typically 15-18 in-lbs; crossbolts to 65 in-lbs).

Key Features

• 35mm Aircraft-Grade Maintube: Delivers maximum structural integrity and up to 120 MOA of internal elevation travel.
• First Focal Plane (FFP) PR1-MOA Reticle: Reticle scales proportionally across the 5x zoom ratio for accurate range estimation and holdovers at any magnification.
• M1C3 ZeroLock® Elevation Turret: Features 3 full revolutions of travel (100+ MOA), 1/4 MOA tactile clicks, visual revolution indicators, and a solid zero stop.
• Lightweight Ergonomic Hull: Up to 20 oz lighter than competing 5-25x long-range optics, reducing rifle mass.
• Professional-Grade Optical System: Delivers elite light transmission, advanced glare reduction, and high resolution in twilight conditions.
• Dark Earth Anodized Finish: Non-reflective, severe-duty finish shields against abrasion, impact, and chemical exposure.

Product Specifications

• Brand: Leupold
• Model: Mark 5HD 5-25x56mm
• MPN: 185070
• UPC: 030317040291
• Magnification Range: 5-25x
• Objective Lens Diameter: 56mm
• Maintube Diameter: 35mm
• Focal Plane: First Focal Plane (FFP)
• Reticle: PR1-MOA (Non-Illuminated)
• Elevation Adjustment Value: 1/4 MOA per click
• Total Elevation Travel: 120 MOA
• Total Windage Travel: 60 MOA
• Eye Relief: 3.6 - 3.8 in (91.4 - 96.5 mm)
• Finish: Dark Earth (DE)
• Waterproof / Fogproof: Waterproof, fogproof (argon/krypton purged)
• Overall Length: 15.7 in (398.8 mm)
• Mass: 30.0 oz (850.5 g)
