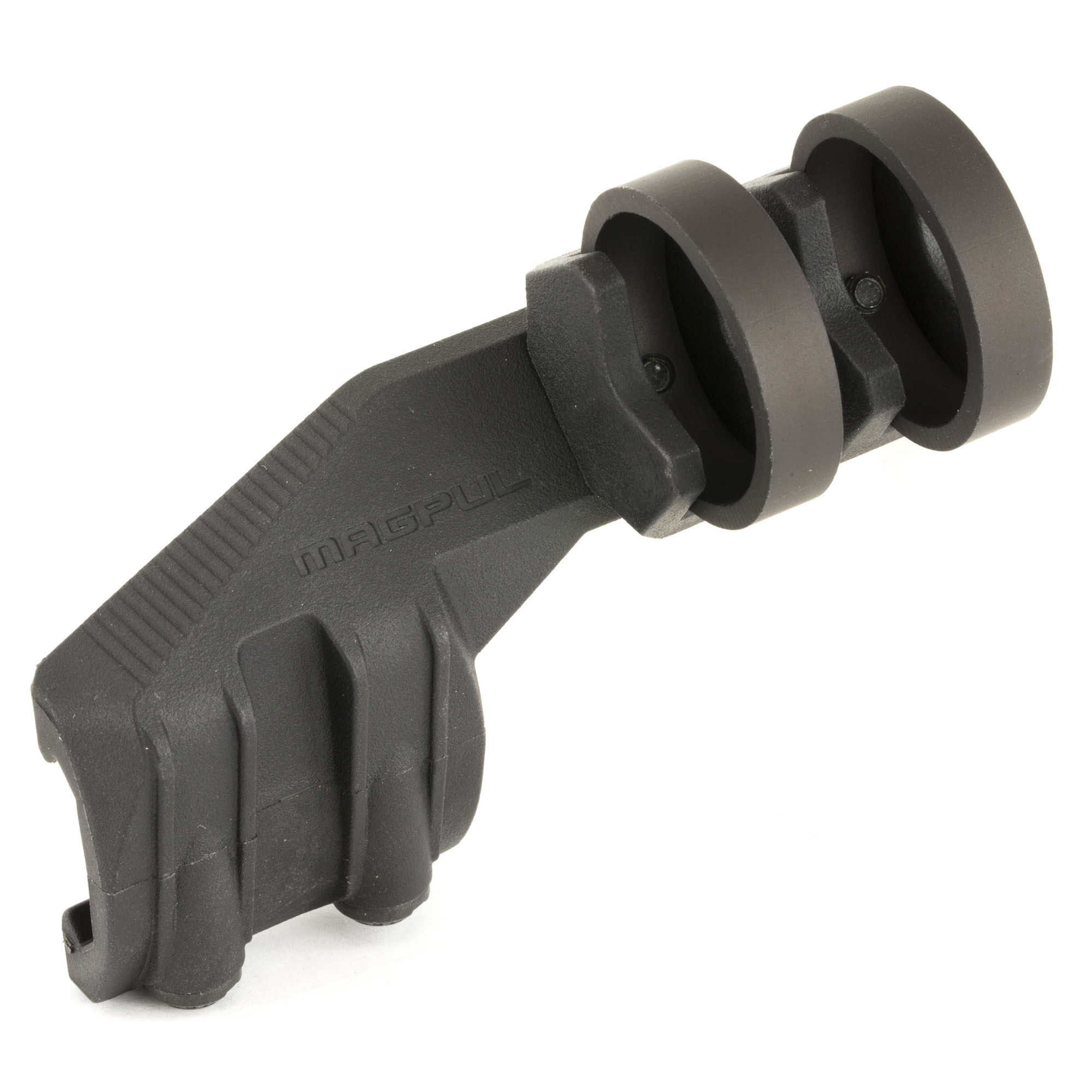

Magpul Rail Light Mount (Right Side) Picatinny Black - MAG498-BLK-RT - UPC 873750009070
Product Description
The Magpul Rail Light Mount in the Right-Side configuration (MAG498-BLK) is a rugged, low-profile illumination mounting solution designed to attach tactical flashlights to MIL-STD-1913 Picatinny rails. Specifically engineered to position the light high and tight against the rail system, the right-side model typically places the flashlight at the 1 o'clock position (when mounted on a top rail). This orientation is ideal for operators utilizing remote tape switches on the top rail or for left-handed shooters who prefer direct tail-cap thumb activation, keeping the weapon profile slim and reducing snag hazards.
Constructed from Magpul's proprietary heavy-duty reinforced polymer and featuring anodized aluminum mounting hardware, this mount offers exceptional rigidity at a fraction of the weight of fully metallic mounts. Its dual-purpose footprint is highly versatile: operators can directly bolt Surefire® 300 and 600 series Scout Lights to the base, or they can use the included polymer rings and textured V-block to securely clamp standard cylindrical handheld lights with body diameters ranging from 0.75 to 1.03 inches.
Designed with a forward-cant architecture, the Magpul Rail Light Mount pushes the flashlight bezel further toward the muzzle. This clears valuable rail estate for backup iron sights (BUIS), laser aiming modules, and aggressive support-hand grips while actively reducing barrel shadow during low-light engagements. Made in the USA, it provides a cost-effective, duty-grade lighting solution for AR-15 carbines, tactical shotguns, and precision rifles.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Mounts directly to any standard MIL-STD-1913 Picatinny rail. The mounting interface directly accepts Surefire Scout Light bodies (M300/M600 series). The included rings accommodate handheld lights with an outer diameter (OD) between 0.75" and 1.03" (e.g., Surefire 6P, G2X, Streamlight PolyTac).
- Verify the firearm is completely safe, clear, and unloaded prior to installation.
- For Scout Lights: Remove the polymer rings from the Magpul base and use the supplied screws to bolt the Scout Light body directly to the mount.
For Handheld Lights: Place the textured V-block onto the mount, set the flashlight body into the channel, and secure the polymer rings over the body.- Position the assembly onto the Picatinny rail, ensure the crossbolts engage the rail slots, and torque the clamping hardware firmly (do not over-torque polymer components beyond 15 in-lbs).
Key Features
- Right-Side Orientation: Positions the light tightly against the right side of the rail, optimizing ergonomics for tape switches or left-handed tail-cap operation.
- Surefire Scout Compatible: Features integral mounting holes to directly accept Surefire 300 and 600 series Scout Light bodies.
- Universal Ring System: Includes mounting rings and a V-block to securely hold round flashlight bodies from 0.75" to 1.03" in diameter.
- Forward Cant Architecture: Pushes the light bezel forward to maximize grip space and minimize distracting barrel shadow.
- Reinforced Polymer Construction: Combines Magpul's legendary high-strength polymer with aluminum hardware for a lightweight, impact-resistant setup.
Product Specifications
- Brand: Magpul Industries
- Model: Rail Light Mount (Right Side)
- MPN: MAG498-BLK / MAG498-BLK-RT
- UPC: 873750009070
- Mounting Interface: MIL-STD-1913 Picatinny Rail
- Light Compatibility: Surefire Scout Series (Direct Mount) or 0.75"–1.03" OD Handheld Lights
- Material: Reinforced Polymer and Aluminum
- Orientation: Right Side
- Color: Black
