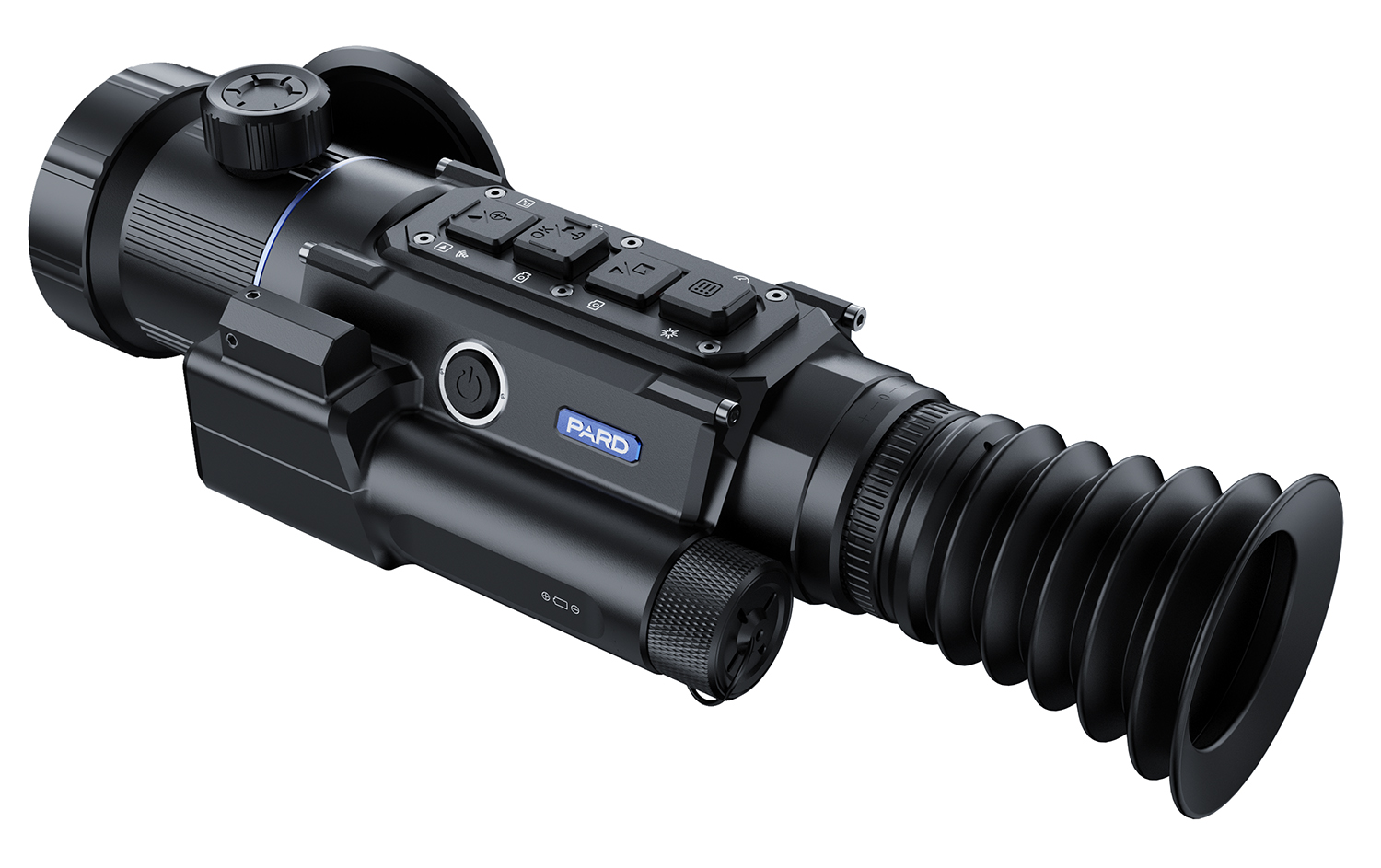

PARD OC6Z25/50/LRF OCELOT 640 25/50MM Thermal Scope - SKU: OC6Z25/50/LRF - UPC: 850050408673
Product Description
The PARD Ocelot OC6Z25/50/LRF is a flagship 640x512 thermal riflescope featuring a dual field-of-view (Dual-FOV) optical system that seamlessly bridges wide-area scanning and long-range target identification. Powered by an ultra-sensitive 12-micron VOx thermal core with a ≤20mK NETD thermal rating and a smooth 50 Hz refresh rate, this optic captures rich thermal detail and subtle temperature gradients even under harsh atmospheric conditions like fog, rain, or heavy humidity.
The core innovation of the Ocelot 25/50 dual-lens design is its true optical zoom system, allowing operators to switch instantly between a 25mm wide field-of-view lens for rapid scanning/close-quarters situational awareness and a 50mm telephoto lens for high-magnification target identification. By shifting physical optical lenses rather than relying solely on digital zoom, the thermal resolution and image clarity remain razor-sharp without pixelation. Integrated into the housing is an onboard 1,000-yard laser rangefinder (LRF) that feeds real-time target distance measurements into the built-in ballistic calculator to automatically project precise holdover solutions onto the high-definition display.
Encased in a lightweight, IP67 waterproof aircraft-grade aluminum chassis, the OC6Z25/50/LRF is recoil-rated up to 6000J (.300 Win Mag / .375 H&H). Powered by a rechargeable 18650 lithium-ion battery, the scope offers self-activated video recording, Wi-Fi streaming, multiple reticle options, and intuitive control ergonomics designed for high-stress nocturnal hunting and tactical monitoring.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Mounts directly to standard MIL-STD-1913 Picatinny receiver rails via the included heavy-duty cantilever optic mount.
- Verify host firearm is completely clear, magazine removed, and chamber physically confirmed empty before installation.
- Insert a fully charged flat-top 18650 lithium-ion battery into the battery compartment, observing proper polarity.
- Attach the included cantilever Picatinny mount base to the receiver rail, positioning for optimal eye relief (approx. 3.5 inches).
- Torque rail mounting cross-bolts to 30-35 in-lbs using a calibrated torque wrench.
- Power on the unit, adjust the ocular diopter to sharpen display menus, and use the objective lens control ring to focus thermal targets. Input caliber-specific ballistic profile data via the internal menu prior to range sight-in.
Key Features
- Dual-FOV Optical Zoom System: Switch between 25mm wide-angle scanning and 50mm telephoto optical identification without losing thermal resolution.
- High-Sensitivity 640x512 Core: 12μm VOx sensor with ≤20mK NETD thermal rating yields crisp imagery in thermal-neutral environments.
- Integrated LRF & Ballistics: Onboard 1,000-yard laser rangefinder calculates instant target distance and automated reticle holdovers.
- 6000J Heavy-Recoil Rating: Rugged aluminum body withstands severe impact forces from centerfire magnum platforms.
- Recoil-Activated Video Recording: Automatically captures and saves footage before and after round discharge onto onboard memory.
Product Specifications
- Brand: PARD
- MPN: OC6Z25/50/LRF
- UPC: 850050408673
- Sensor Resolution: 640 x 512 VOx (12 Micron)
- Thermal Sensitivity: ≤20mK NETD
- Frame Rate: 50 Hz
- Objective Lens: 25mm / 50mm Dual Focal Length
- Display Type: OLED High-Definition Display
- Laser Rangefinder Range: 1,000 Yards
- Power Source: Rechargeable 18650 Battery
- Waterproof Rating: IP67
- Body Finish: Matte Black Anodized
