Riton Optics X301QD Precision 30mm & 1" Quick Detach Scope Mount Black - X301QD

Riton Optics Precision Scope Mount X301QD UPC 019962524868

Product Description

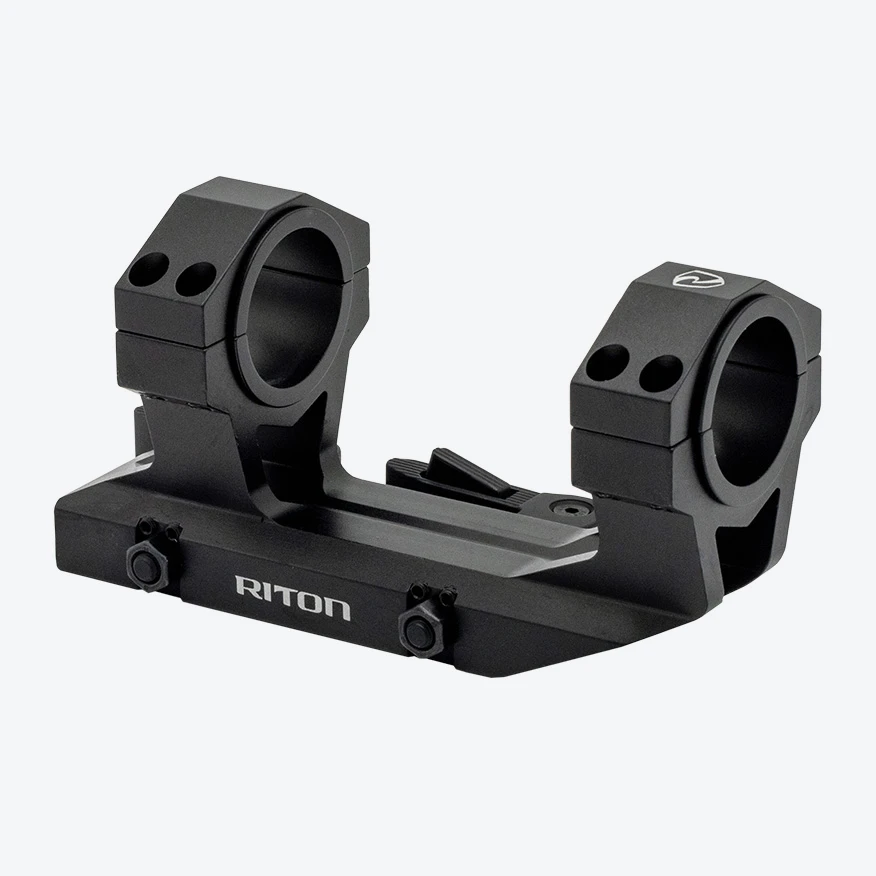

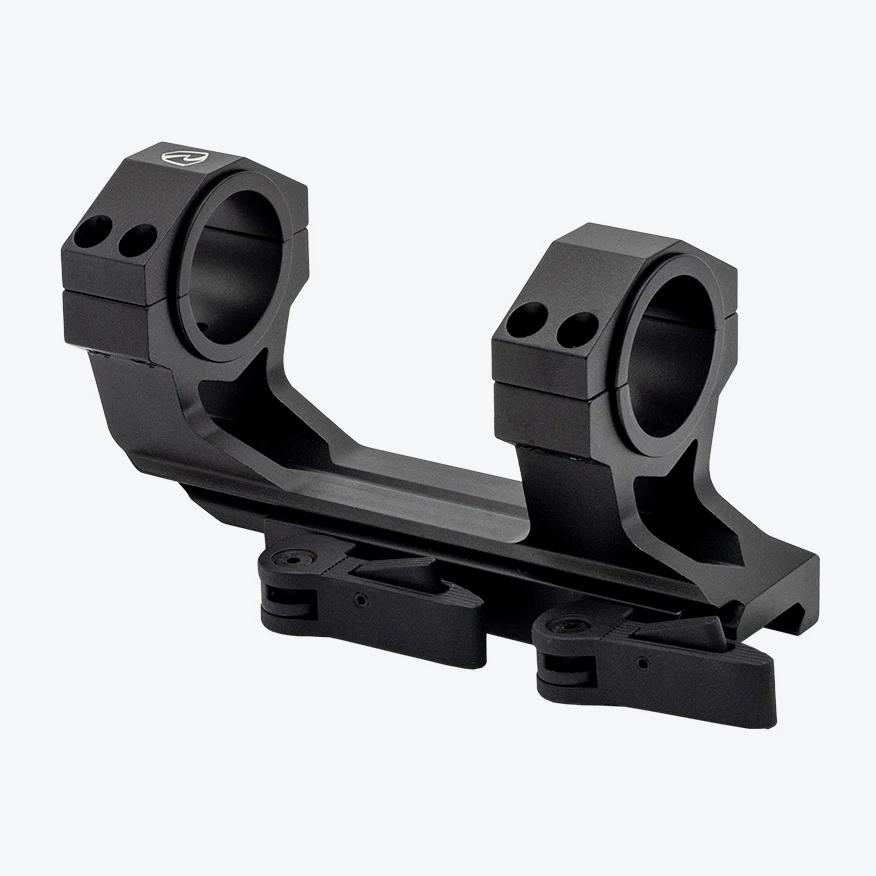

The Riton Optics Precision Scope Mount X301QD (UPC 019962524868) is a highly versatile, heavy-duty quick-detach (QD) cantilever optic mounting system engineered to accommodate both 30mm and 1-inch riflescope main tubes. Designed with removable internal reduction inserts, this mount provides custom-fit adaptability for standard hunting and tactical scopes without requiring separate mounting rings.

Precision CNC-machined from 6061-T6 aircraft-grade aluminum, the X301QD features a forward-cantilever orientation that positions your optic at an optimal eye relief and a comfortable 1.5-inch centerline optical height over receiver rails. The dual heavy-duty quick-detach locking levers feature adjustable locking tension mechanisms to ensure a rock-solid, repeatable lockup on standard MIL-STD-1913 Picatinny receiver rails, maintaining true return-to-zero performance after removal and reinstallation.

Finished in a non-reflective matte black hard-coat anodized coating, the Riton Precision X301QD mount incorporates wide ring caps secured by four heavy-duty Torx screws per ring. This dual-ring construction evenly distributes clamping force around scope tube walls to prevent tube crushing while ensuring complete zero retention under heavy recoil forces.

*Armorer Bench Notes & Real-World Staging Guidance:*

Fitment Matrix: Fits 30mm scope tubes out of the box. Includes precision polymer/aluminum reduction ring inserts to fit standard 1-inch (25.4mm) scope tubes. Mounts to any standard MIL-STD-1913 Picatinny top rail section.

1. Ensure the host firearm is completely clear, magazine removed, and chamber visually and physically verified empty.
2. Select configuration: leave the 30mm main rings open for 30mm scopes, or seat the included reduction inserts flush into the lower ring halves for 1-inch main tubes.
3. Place the mount onto the receiver Picatinny rail, pushing forward toward the muzzle to seat the cross-bolts against the recoil slots. Engage the QD levers and adjust thumb nut tension until levers lock with firm hand pressure.
4. Place riflescope into lower ring halves, align reticle level using a leveling block, and torque top ring caps evenly in a cross-pattern to 15–18 in-lbs using a quality torque wrench.

Key Features

• Dual 30mm & 1" Scope Tube Compatibility: Includes removable precision reduction inserts to seamlessly convert between 30mm and 1-inch scope tubes.
• Dual Quick-Detach (QD) Levers: Adjustable locking lever assembly provides rapid, tool-free mounting and reliable return-to-zero performance.
• 6061-T6 Aircraft Aluminum Construction: Precision CNC-machined body engineered for maximum structural rigidity and low overall mass.
• 1.5" Centerline Optical Height: Standard AR-15 optical centerline height ensures natural cheek weld and eye alignment.
• Type III Matte Black Anodized Finish: Hard-coat surface treatment protects against scratches, chemical exposure, and field wear.

Product Specifications

• Brand: Riton Optics
• Model/Series: Precision Scope Mount X301QD
• MPN / SKU: X301QD / X301QD
• UPC: 019962524868
• Scope Tube Diameter: Fits 30mm AND 1 Inch (via included inserts)
• Optical Centerline Height: 1.50 Inches
• Mount Type: Dual QD Lever Cantilever Mount
• Material: 6061-T6 Billet Aircraft Aluminum
• Finish/Color: Matte Black Hard-Coat Anodized
• Country of Origin: Imported / USA Quality Control
