Shinenyx AIM101 Fusion Thermal & Night Vision Scope with 1200m LRF - AIM101

*CONTACT US FOR A SPECIAL COUPON CODE*

Shinenyx AIM101 Fusion Scope 640x512 Thermal NightVision 1200LRF 20.8x48mm Digital Reticle 1920x1080 Resolution AIM101 UPC 663899909757

Product Description

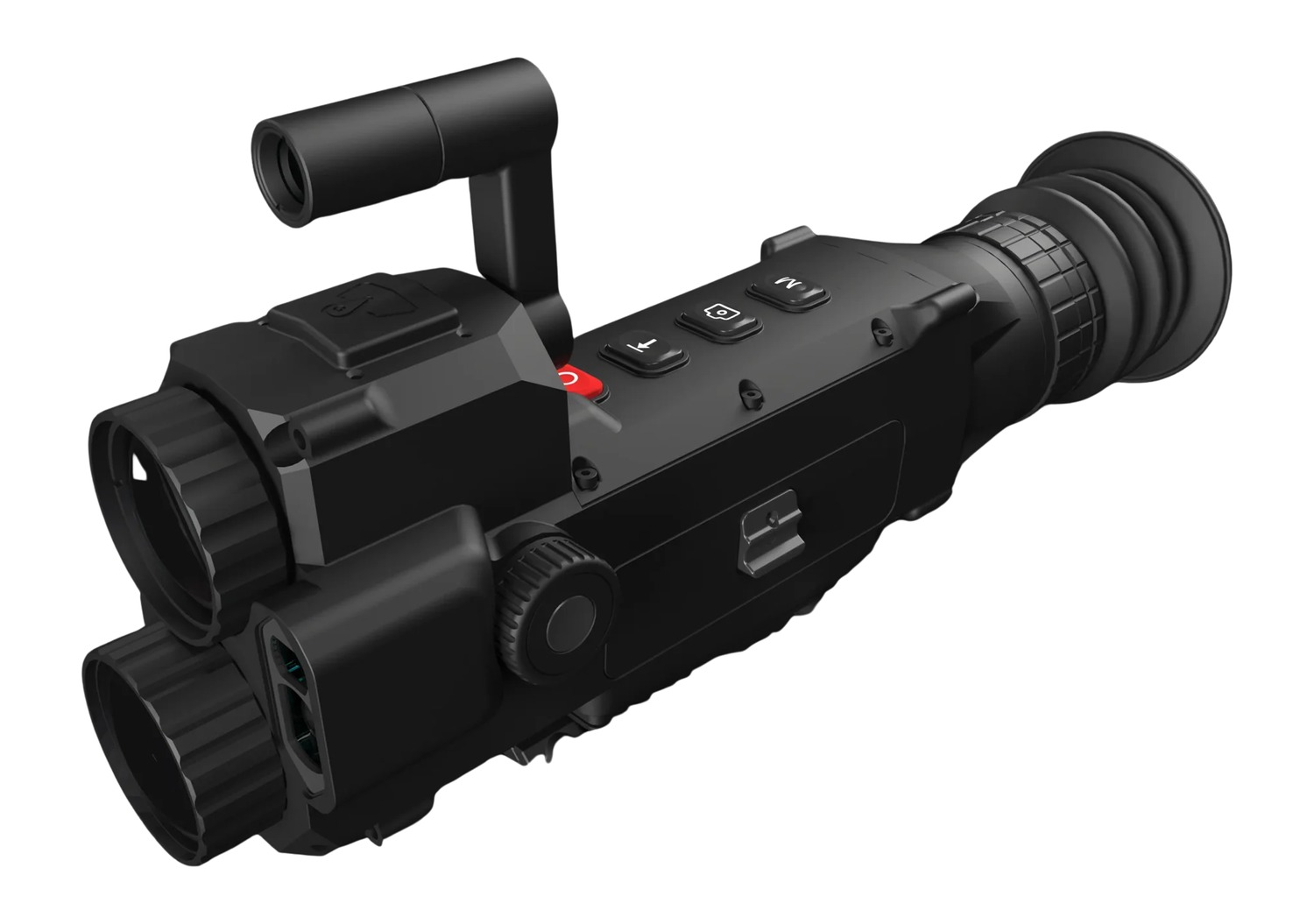

The Shinenyx AIM101 Fusion Scope (AIM101) is an advanced multi-spectrum electro-optical sight that combines uncooled thermal imaging, digital day/night vision, and an integrated 1,200-meter Laser Rangefinder (LRF) into a single rugged optic housing. Designed for tactical operations, predator control, and long-range night hunting, the AIM101 merges a high-sensitivity 640×512 thermal core with a crisp 1920×1080 Full HD optical sensor onto a ultra-high-definition OLED display, allowing shooters to detect heat signatures through thick brush, fog, or smoke while simultaneously retaining high-resolution visual identification.

Featuring a versatile 20.8x magnification envelope paired with a 48mm objective lens system, the AIM101 offers clear target recognition across extreme distances. Its integrated 1,200-meter laser rangefinder feeds distance data directly into the onboard ballistic calculator, instantly adjusting digital reticle holdovers to guarantee ethical first-round hits under complete darkness. The scope's dynamic fusion display modes allow seamless toggling between full thermal, night vision, Picture-in-Picture (PiP), and multi-spectrum optical overlay.

Engineered to withstand heavy firearm recoil shock up to .300 Win Mag and 12-gauge loads, the AIM101 housing is IP67 waterproof and weather-sealed against dust, torrential rain, and sub-zero temperatures. Outfitted with onboard video recording, Wi-Fi streaming, customizable digital reticles, and long-lasting rechargeable power cells, the Shinenyx AIM101 sets a new benchmark for multi-spectral targeting dominance.

Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Mounts securely to standard MIL-STD-1913 Picatinny rails using the included heavy-duty quick-detach (QD) mount assembly. Suitable for bolt-action rifles, AR-10 / SR-25 precision platforms, and tactical carbines.

1. Perform a complete firearm safety check: drop the magazine, lock the action rearward, and visually inspect the chamber to verify zero live rounds are present.
2. Attach the included quick-detach Picatinny mount to the base of the AIM101 housing using the provided high-strength steel mounting fasteners.
3. Place the scope assembly onto your rifle's top Picatinny rail, selecting a rail slot that ensures proper eye relief (typically 2.5 to 3.0 inches from the rubber eyecup).
4. Adjust the QD lever tension thumb-nuts until the mount clamps firmly to the rail without binding or lateral slop.
5. Insert fully charged power cells into the weather-sealed battery compartment, paying careful attention to proper polarity indicators.
6. Power on the unit, adjust the ocular diopter ring until the digital reticle menu appears perfectly sharp, and perform a live-fire thermal/day zeroing procedure at 100 yards using heat pads or zeroing targets.

Key Features

• Multi-Spectrum Fusion Technology: Fuses 640×512 thermal imaging and 1920×1080 digital night vision onto a single high-definition display.
• Integrated 1,200m Laser Rangefinder: Onboard laser rangefinder calculates exact target distance to feed real-time ballistic holdover solutions.
• High-Resolution 640×512 Thermal Core: Thermal sensor detects subtle thermal gradients through dense fog, smoke, tree canopy, and total darkness.
• High-Definition OLED Display: Displays 1920×1080 color and monochrome imaging with rich contrast and zero delay.
• Onboard Ballistic Calculator: Features customizable weapon profiles and automatic digital reticle offset based on measured LRF ranges.
• Recoil-Proof Weather-Sealed Chassis: IP67 waterproof housing engineered to absorb violent recoil impulse from heavy hunting calibers.

Product Specifications

• Brand: Shinenyx
• Model/Series: AIM101 Fusion Thermal & Night Vision Scope
• MPN / SKU: AIM101
• UPC: 663899909757
• Thermal Sensor Resolution: 640×512 pixels
• Digital Optical Sensor Resolution: 1920×1080 Full HD
• Display Resolution: 1920×1080 HD OLED
• Objective Lens: 48mm
• Magnification: Up to 20.8x Digital/Optical Zoom
• Laser Rangefinder Distance: Up to 1,200 Meters
• Display Modes: Thermal, Night Vision, Day Color, Multi-Spectrum Fusion, PiP
• Mounting Interface: MIL-STD-1913 Picatinny Rail Mount
• Ingress Protection: IP67 (Waterproof & Dustproof)
• Weight: 31.7 oz
• Country of Origin: Imported
