Sig Sauer TANGO-MSR Compact 1-10x24mm FFP Riflescope w/ ALPHA-MSR Cantilever Mount - SOTMC11002 - UPC 798681720668
Product Description
The Sig Sauer TANGO-MSR Compact 1-10x24mm First Focal Plane (FFP) Riflescope (SOTMC11002) represents the next generation of lightweight, ultra-versatile low power variable optics (LPVO). Purpose-built to reduce overall length and rail footprint without sacrificing optical performance, this Compact variant houses a powerful 1x-to-10x magnification system inside a streamlined 30mm main tube, making it an exceptional choice for maneuverable modern sporting rifles, short-barreled rifles (SBRs), and carbines.
Featuring a First Focal Plane (FFP) illuminated reticle placement, the glass-etched MSR-BDC10 reticle scales proportionately across the entire zoom range. This guarantees that your ballistic drop compensation (BDC) holdovers, range estimation, and windage subtensions remain 100% accurate at every magnification setting. High-performance glass elements, treated with Sig Sauer's proprietary optical coatings, deliver high light transmission, edge-to-edge resolution, and crisp visual clarity in challenging lighting environments.
The SOTMC11002 is delivered as a complete, out-of-the-box tactical package. It includes a factory-matched ALPHA-MSR 30mm aluminum cantilever mount engineered to provide optimal optical height and eye relief on flat-top receiver rails. Complete with an integrated removable thread-in throw lever for rapid magnification transitions, lay-flat flip-up lens covers, and 11 reticle brightness settings, the TANGO-MSR Compact 1-10x24 FFP provides rapid red-dot-style engagement up close alongside precise long-range capabilities.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Direct fit for AR-15, M4, AR-10, and bolt-action rifles featuring a standard top MIL-STD-1913 Picatinny rail. Includes a matching 30mm ALPHA-MSR 1-piece aluminum cantilever mount. Note: Torque the mount base to 45–65 in-lbs to the receiver rail, and torque the ring cap screws evenly to 15–18 in-lbs in a crisscross pattern.
- Verify host firearm is completely clear, safe, and unloaded before positioning optical components.
- Install the ALPHA-MSR cantilever mount onto the receiver Picatinny rail, set eye relief while shouldering the rifle at 10x magnification, and level the reticle.
- Torque ring cap screws evenly, dial in the fast-focus ocular diopter for your eyesight, set reticle illumination, and perform zeroing at your preferred baseline distance (e.g., 50/200 yards).
Key Features
- Streamlined Compact Design: Reduced overall length and mass minimizes top-weight and upper receiver rail clutter.
- 1-10x Magnification Range: True 1x low end for rapid two-eyes-open close-quarters shooting scaling to 10x for long-range target identification.

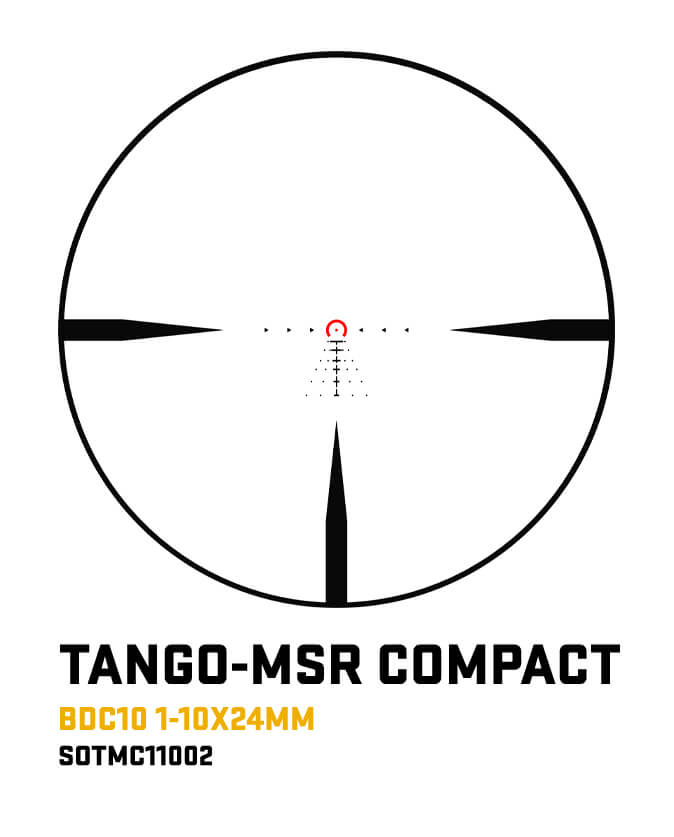

- First Focal Plane (FFP) MSR-BDC10 Reticle: Reticle subtensions scale dynamically with magnification, keeping holdovers accurate at any power level.
- 30mm Aircraft-Grade Main Tube: One-piece 30mm tube construction provides rugged structural durability against severe recoil and impact.
- Included ALPHA-MSR Cantilever Mount: Factory-matched 30mm aluminum mount ensures optimal cheek weld and eye relief on AR platforms.
- Complete Out-of-the-Box Package: Includes removable thread-in throw lever, lay-flat flip-up lens caps, and CR2032 battery for immediate staging.
Product Specifications
- Brand: Sig Sauer
- Series: TANGO-MSR Compact
- Model: 1-10x24mm FFP LPVO
- MPN / Part Number: SOTMC11002
- UPC: 798681720668
- Magnification: 1-10x
- Objective Lens Diameter: 24mm
- Main Tube Diameter: 30mm
- Focal Plane: First Focal Plane (FFP)
- Reticle: Illuminated MSR-BDC10
- Adjustment Graduation: 0.5 MOA per click
- Eye Relief: 3.5 Inches (88.9mm)
- Illumination Settings: 11 Positions
- Battery Type: CR2032
- Mount Included: 30mm ALPHA-MSR Aluminum Cantilever Mount
- Finish / Color: Matte Black
- Mass (Optic Only): ~18.2 oz (516.0 g)
