Sig Sauer XRAY5 SIG LOC COMPACT Solid State Advanced Red Dot Sight 3 5 MOA SOX54300 UPC 798681746989
Product Description

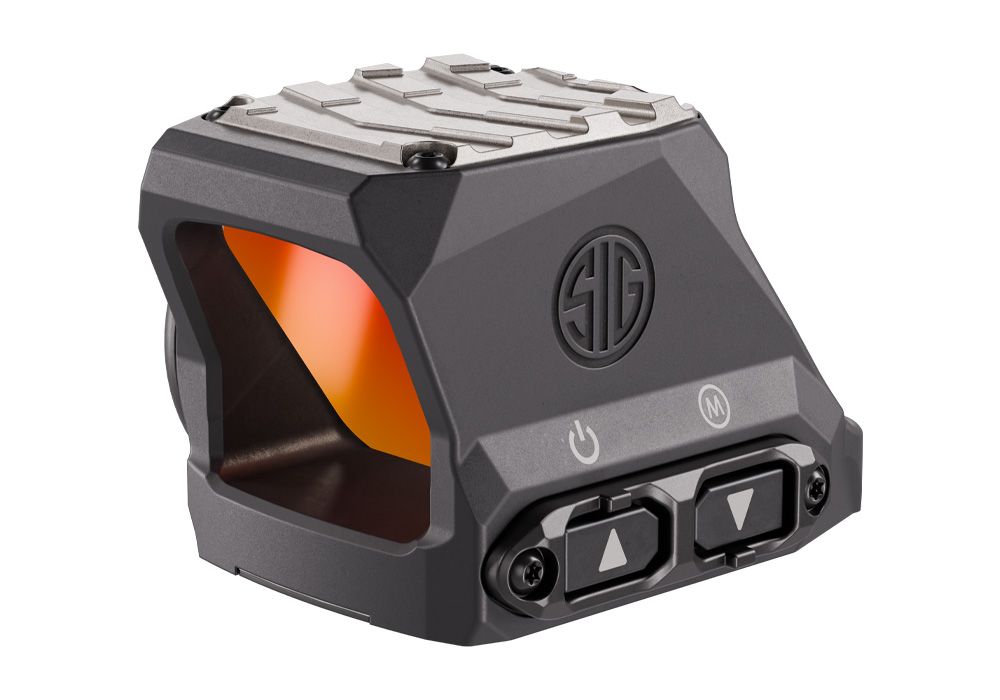

The Sig Sauer XRAY5™ SIG-LOC COMPACT Solid-State Advanced Red Dot Sight in Black (SKU: SOX54300 / UPC: 798681746989) redefines micro-compact handgun optics by incorporating revolutionary solid-state architecture into a Shield RMSc / Compact footprint. Engineered for slimline concealed carry and subcompact pistols, this ultra-durable reflex sight replaces traditional mechanical turrets with a 225-pixel digital red dot matrix, eliminating all internal moving parts to guarantee zero point-of-impact drift under extreme slide velocity and harsh everyday carry conditions.
Featuring Sig Sauer’s patented Zero Distortion Optic (ZDO™) system and ALT™ precision-molded aspheric glass, the XRAY5™ Compact provides a 24mm diagonal clear aperture that eliminates edge distortion and visual chromatic aberration. Shooters can perform digital zeroing directly via manual housing button presses or wirelessly through the XRAY5™ mobile app—allowing instant profile saving and calibration recall. The optic comes fully loaded with advanced features, including LightFight™ adaptive reticle illumination, a digital resettable round counter (D.A.R.C.), and MOTAC™ motion-activated power management.
Constructed from CNC-machined 7075-T6 aluminum reinforced with a Grade 5 Titanium front lens shield, the fully enclosed optic is argon-purged and IPX8 waterproof rated down to 40 meters (132 feet). Powered by a side-loading CR2032 battery with up to 10,000 hours of runtime, the low 1.20-inch profile fits slimline slides seamlessly while maintaining direct co-witness with factory iron sights.
*Armorer Bench Notes & Real-World Staging Guidance:*
Fitment Matrix: Fits subcompact and micro-compact optic-ready slides using the Shield RMSc / COMPACT footprint (such as Sig Sauer P365 series, P365-XMACRO, Springfield Hellcat, and optic-cut slimline slides). Will NOT fit full-size RMR or standard SIG-LOC PRO footprints without an adapter plate.
- Ensure the host handgun is completely clear, magazine removed, and chamber visually and physically verified empty.
- Clean the slide optic cut surface and seat the XRAY5 COMPACT base onto the slide mounting posts and screw holes.
- Apply medium-strength threadlocker to the included mounting screws and torque to 12-15 in-lbs.

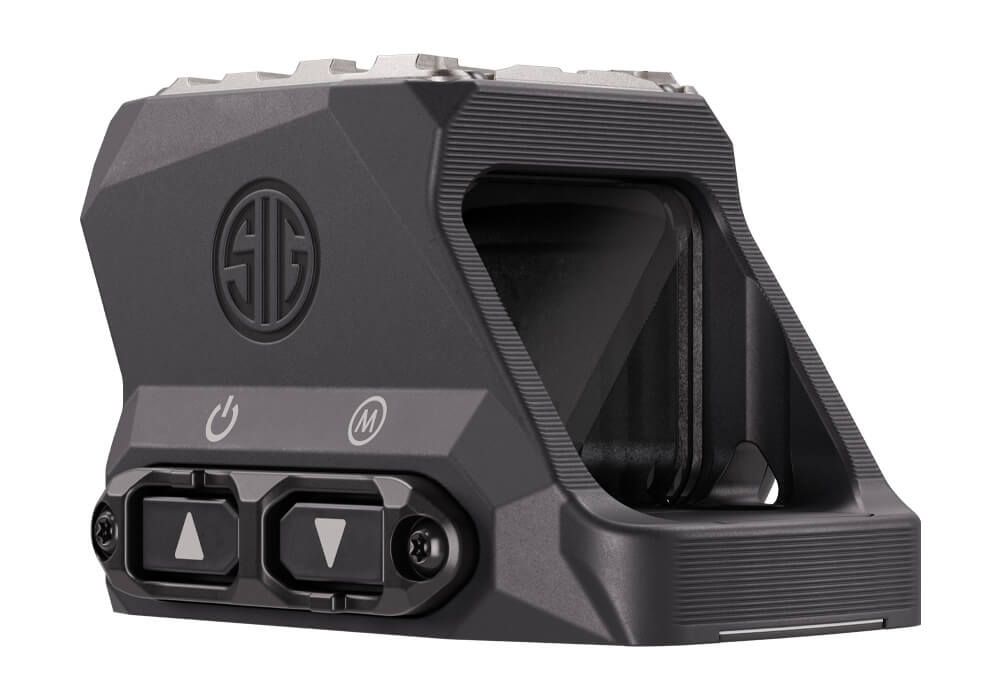

- Insert a fresh CR2032 battery into the side-loading tray, power on the sight, and use either the manual frame buttons or the XRAY5 app to perform digital zero alignment prior to live firing.
Key Features
- Solid-State 225-Pixel Digital Matrix: Eliminates mechanical elevation/windage turrets and internal moving parts to maintain permanent zero stability.
- Compact / Shield RMSc Footprint: Engineered for direct mounting on micro-compact concealed carry pistols like the P365 series.
- Zero Distortion Optic (ZDO™) System: ALT™ precision-molded aspheric glass delivers an edge-to-edge clear 24mm diagonal sight picture.
- Digital Zero & App Profile Storage: Calibrate pixel coordinates using manual button controls or the XRAY5 mobile app to save and recall zero profiles.

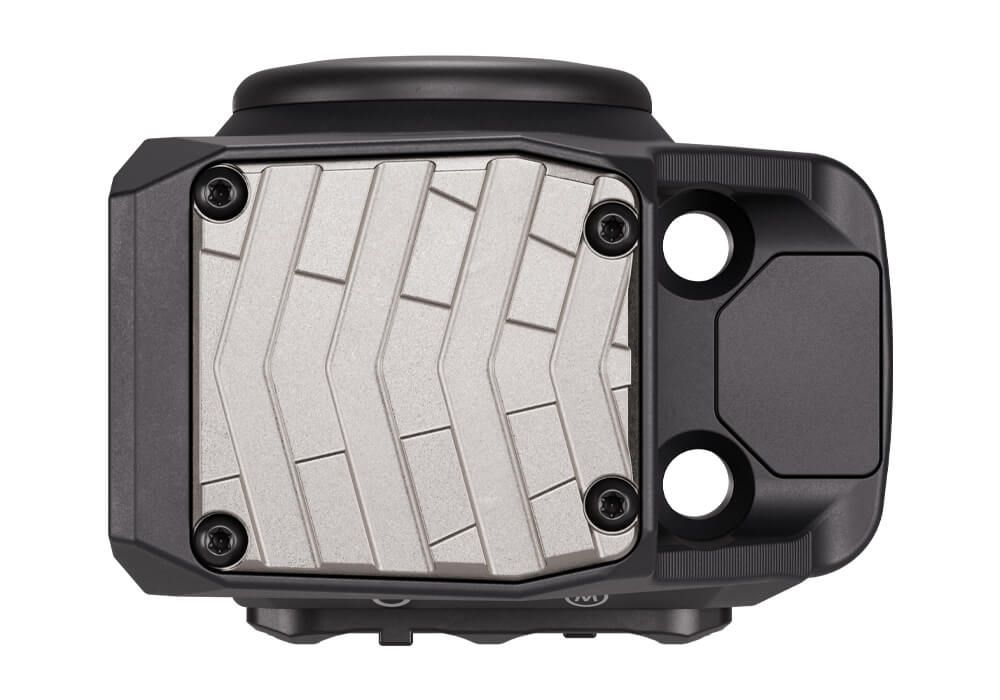

- 7075 Aluminum Housing w/ Titanium Shield: Rugged aluminum body topped with a Grade 5 Titanium hood to shield optic glass during dynamic slide racking.
- LightFight™ Adaptive Illumination: 15 brightness settings (13 Daylight / 2 Night Vision) that automatically adapt to ambient lighting conditions.
- Fully Enclosed IPX8 Waterproofing: Completely sealed, argon-purged housing provides IPX8 waterproof protection submersible to 40 meters (132 feet).

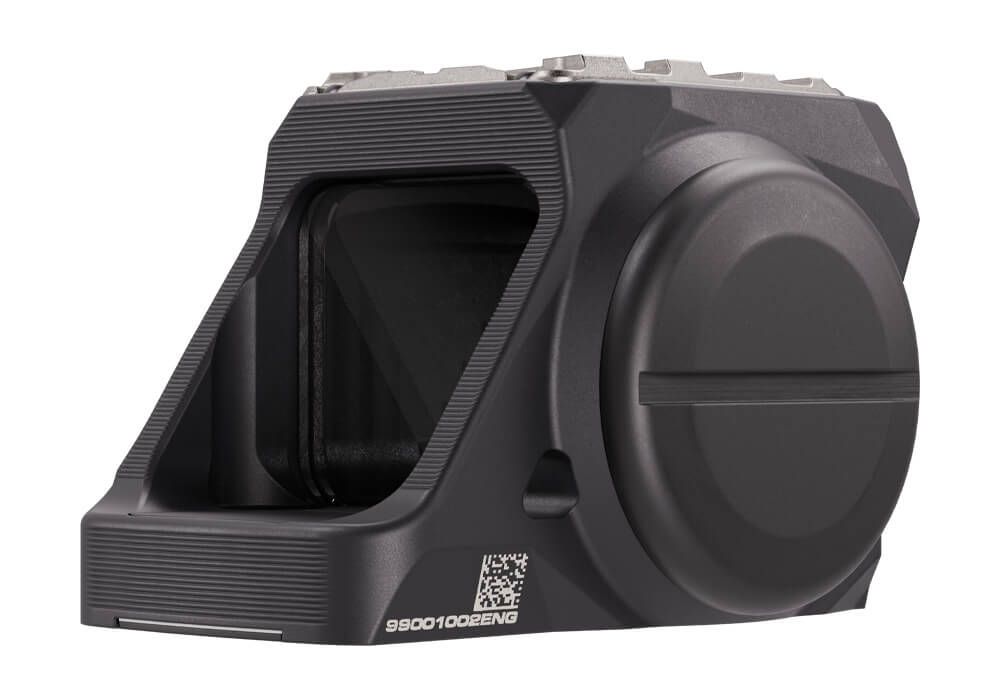

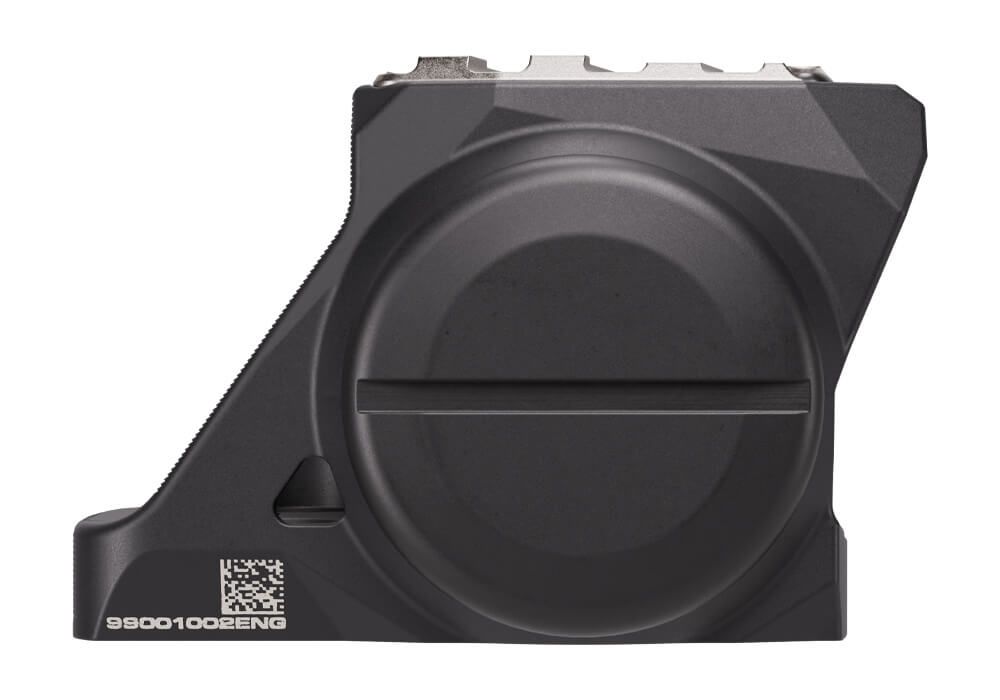

- Digital Round Counter (D.A.R.C.) & Side Battery Access: Features an electronic resettable round tracking counter and side-loading CR2032 battery compartment.
- Sig Sauer Infinite Guarantee™: Unlimited, fully transferable lifetime manufacturer warranty.
Product Specifications
- Brand: Sig Sauer
- Model/Series: XRAY5™ Enclosed COMPACT Advanced Red Dot Sight
- MPN / SKU: SOX54300 / SOX54300
- UPC: 798681746989

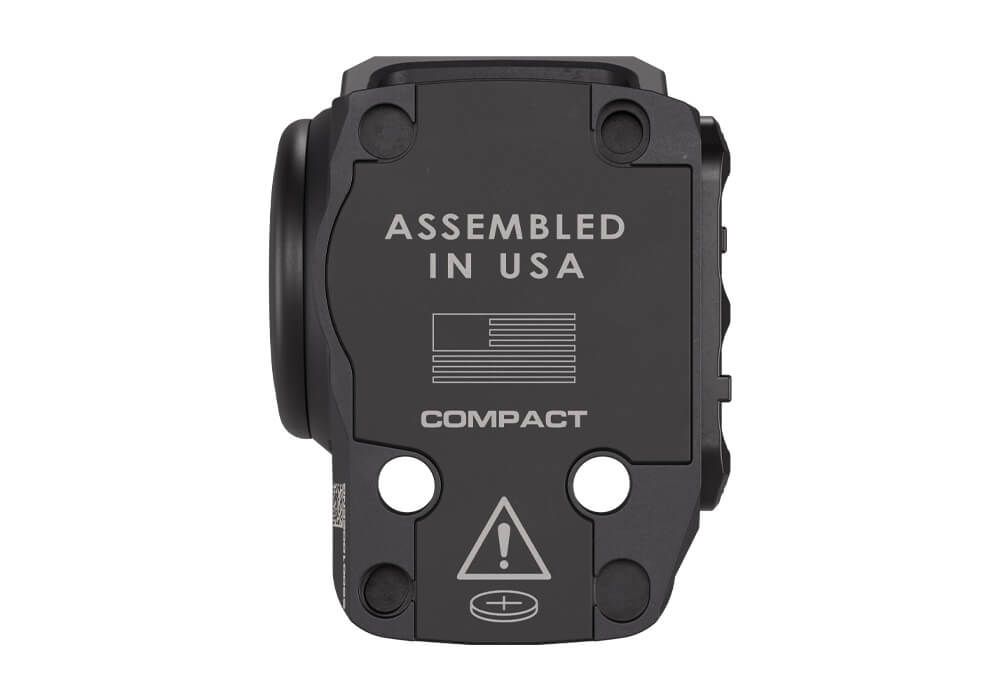

- Footprint / Mount Type: COMPACT (Shield RMSc Footprint) / Top Mount
- Reticle: Red 3.5 MOA Dot (225-Pixel Digital Matrix)

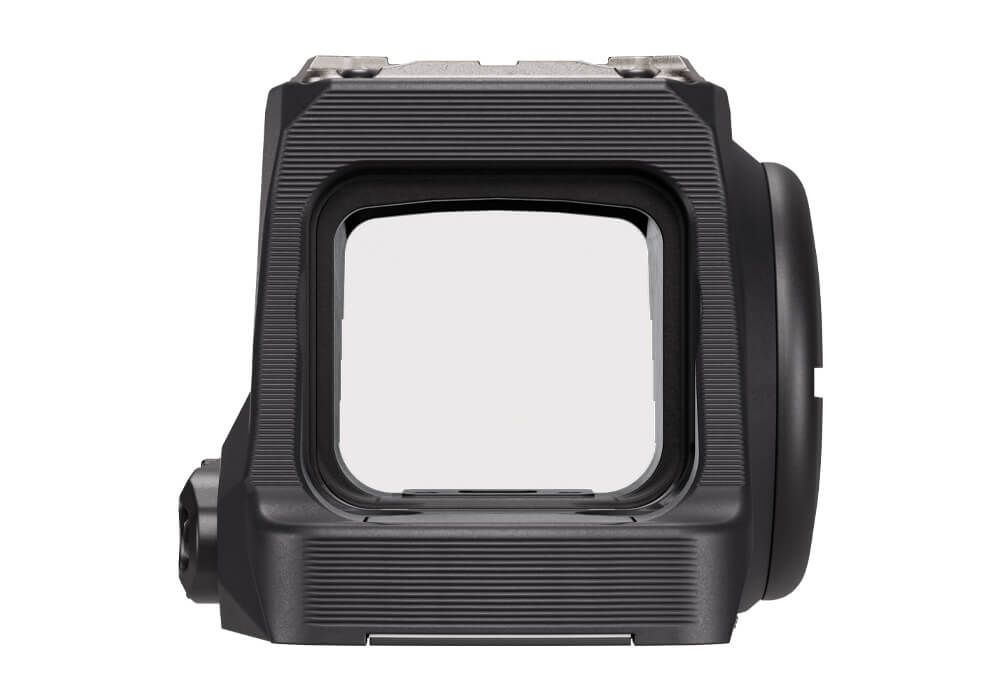

- Clear Aperture Diameter: 24 mm (Measured Diagonally)
- Illumination Settings: 15 Settings (13 Daylight / 2 Night Vision) w/ LightFight™
- Windage / Elevation Travel: 80 MOA Total Elevation / 80 MOA Total Windage
- Adjustment Method: Digital (Optic Buttons / XRAY5 Smartphone App)
- Overall Dimensions (L x W x H): 1.74 in x 1.32 in x 1.20 in [44.20 mm x 33.53 mm x 30.48 mm]
- Housing / Shield Material: 7075 Aluminum Housing / Grade 5 Titanium Shield
- Battery / Runtime: (1) Side-Loading CR2032 / Up to 10,000 Hours (MOTAC™ Enabled)
- Environmental Protection: Fully Enclosed / Argon Purged / IPX8 Waterproof (40m / 132 ft)
- Finish/Color: Black Anodized
- Country of Origin: Designed, Developed, Tested, and Assembled in USA
