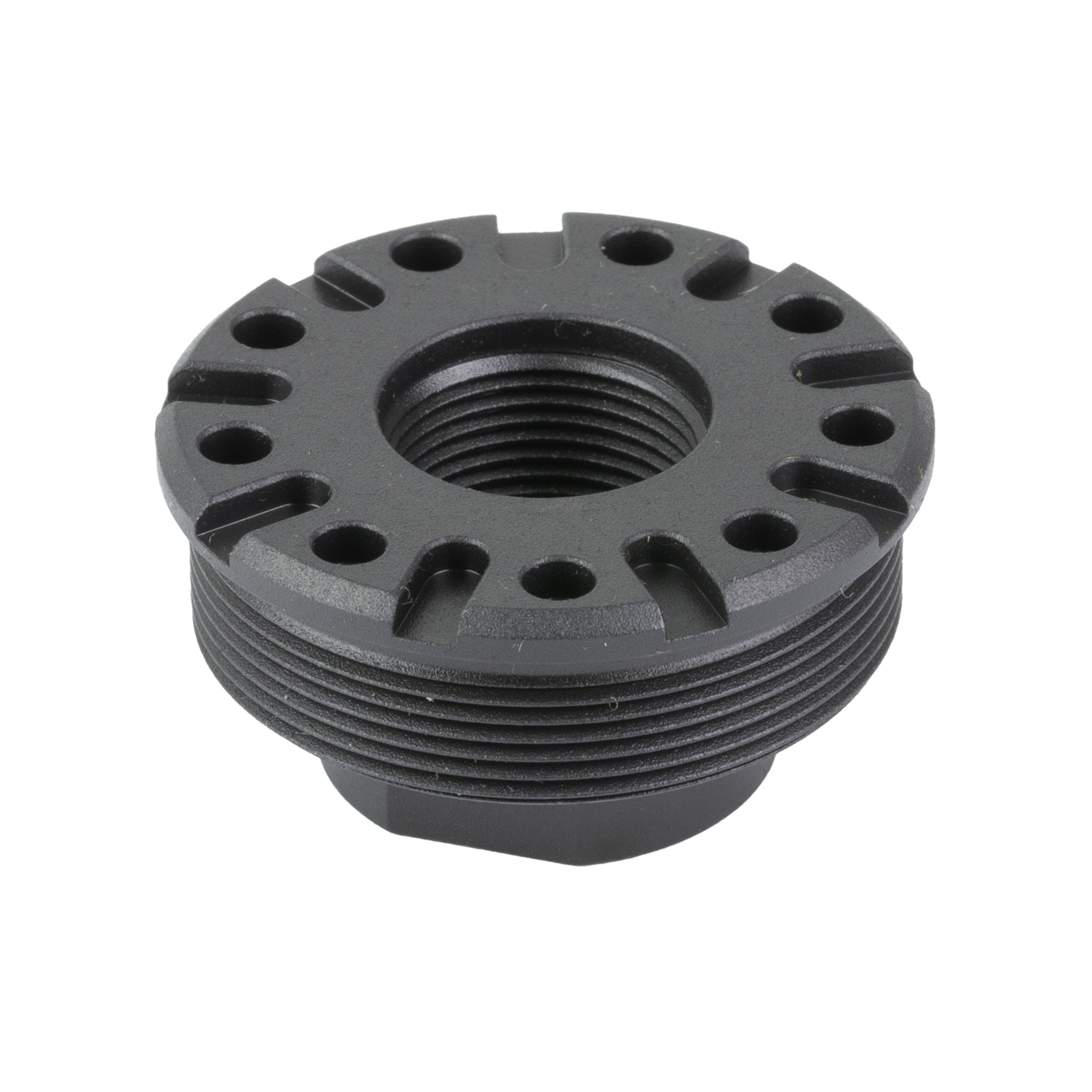

SilencerCo Bravo Direct Thread Mount 3/4x20 (HUB 1.375x24) Matte Black - AC4767 / AC4757
Product Description
Equipping a hard-use precision rifle or big-bore platform with a suppressor delivers undeniable acoustic advantages and recoil mitigation, but standard quick-detach (QD) mounting systems frequently introduce mechanical and spatial bottlenecks. Heavy QD muzzle brakes and ratcheting adapter packages accumulate unnecessary front-end weight, expand the total physical footprint of your suppressor, and introduce a complex layer of moving mechanical components that can fail, wear loose, or cause accuracy-destroying concentricity drift. The SilencerCo Bravo Direct Thread Mount completely eliminates these multi-piece vulnerabilities, providing an ultra-rigid, rock-solid baseline mounting solution that converts your suppressor into a streamlined, high-performance direct-thread configuration.
Precision-machined from a premium block of high-tensile structural stainless steel, this heavy-duty adapter is engineered to handle the severe mechanical forces, extreme gas pressures, and sharp thermal expansion unique to heavy firing schedules. The entire exterior surface is encapsulated in a highly resilient matte black oxide conversion treatment, maximizing surface slickness, shielding the underlying steel from abrasive carbon blast erosion, and matching the non-reflective aesthetics of your silencer chassis. By replacing a bulky active-locking QD system with this low-profile interface, you shorten the overall extended length of your suppressor package by a full 3/4 of an inch, shifting the weapon's center of gravity backward to preserve nimble handling and linear tracking speed.
In physical application, this direct thread mount features the industry-standard Bravo / HUB outer thread pattern (1.375x24 TPI), allowing it to integrate flawlessly with a massive library of premier suppressors, including the SilencerCo Omega 300, Hybrid 46, Harvester EVO, and Scythe-Ti. The internal muzzle interface is cut to a specialized 3/4x20 thread pitch, providing a dedicated and concentric interface for specialized barrel profiles. By screwing directly to your barrel's primary shoulder, this adapter eliminates the secondary tolerances and physical play common to ratcheting adapters, ensuring an absolute zero-drift centerline that guarantees maximum accuracy and worry-free stabilization on every shot.
*Armorer Bench Notes & Technical Maintenance Guidance: The SilencerCo Bravo direct thread adapter utilizes dual internal component paths that require precise tool interfaces. When anchoring the Bravo-pattern mount into your suppressor's main tube, ensure the internal threads are completely degreased and clean of old carbon residue. Utilize the dual-pin spanner wrenches provided with your SilencerCo suppressor to torque the mount firmly into the suppressor body to a specification of 20–25 ft-lbs; a drop of high-temperature thread locking compound can be applied to semi-permanently secure this host connection. Because direct-thread silencers can gradually break free under the distinct vibrational counter-recoil harmonic of semi-automatic or bolt actions, always check that the suppressor is snugged tight against the barrel shoulder before initiating a fresh string of fire. Regularly run a dedicated 338 or matching caliber bore alignment rod through the system to ensure complete mechanical concentricity and protect against a catastrophic internal baffle strike.
Key Features
- Streamlined Length Reduction: Shortens the overall extended length of your suppressor package by 3/4 of an inch compared to traditional ASR quick-detach mount assemblies.
- Universal Bravo HUB Interface: Machined with an external 1.375x24 thread pitch, guaranteeing cross-compatibility across the Omega 300, Hybrid 46, Scythe-Ti, and identical HUB tubes.
- Dedicated 3/4x20 Threading: Meticulously cut to a specialized 3/4x20 internal thread profile to anchor securely onto matching custom-threaded big-bore rifle barrels.
- Monolithic Stainless Steel Core: Crafted entirely from premium, high-strength stainless steel to comfortably withstand severe thermal shifts and intense muzzle pressure blast waves.
- Matte Black Oxide Finish: Treated with a professional black oxide protective layer that lowers thread friction, prevents carbon seizing, and blocks corrosive moisture.
Product Specifications
- Brand: SilencerCo
- Model Line: Suppressor Interface Accessories
- MPN/SKU: AC4767 / AC4757
- UPC: 816413026755
- Mount Interface (Suppressor Side): Bravo / HUB Pattern (1.375x24 TPI)
- Thread Pattern (Barrel Side): 3/4"x20 TPI (Threads Per Inch)
- Material Configuration: Heavy-Duty Hardened Stainless Steel
- Finish Base: Non-Reflective Matte Black Oxide
- Primary Firearm Application: Fixed-Barrel Rifles, PCCs, and Big-Bore Platforms
- Suppressor System Compatibility: Omega 300, Hybrid 46, Harvester 338, Harvester EVO, Scythe-Ti, Scythe STM, Bravo MAAD Brake
- Country of Origin: United States
