SilencerCo Charlie IFH Front Cap AC5219 UPC 816413028889
Product Description

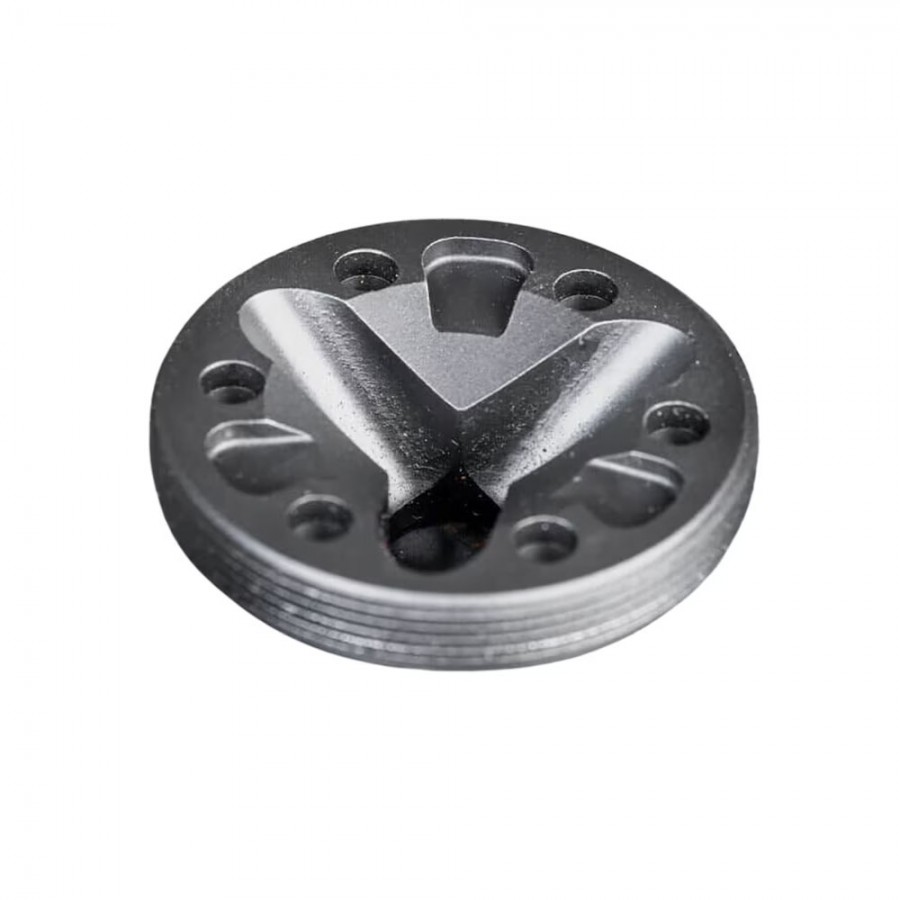

The SilencerCo Charlie IFH (Integrated Flash Hider) Front Cap (MPN: AC5219) is a performance-enhancing muzzle accessory engineered to optimize sound signature, reduce muzzle flash, and customize end-cap bore clearance on SilencerCo suppressors utilizing the Charlie mounting ecosystem. Designed specifically for 5.56mm NATO / .223 Remington platforms, this front cap integrates three pronounced flash-hiding tines directly into the end cap face to virtually eliminate unburned powder flash signatures during low-light, night-vision, and tactical engagements.
Precision CNC-machined in the USA from high-strength stainless steel and finished in a tough matte black finish, the AC5219 replaces standard flat front caps on compatible Charlie-series suppressors (including the Saker ASR, Chimera 300, and Charlie-compatible Velos LBP). By matching the front cap aperture specifically to the 5.56mm projectile diameter rather than a larger .30-caliber opening, it restricts over-bore gas bypass, yielding measurable decibel reduction and enhanced backpressure performance.
Engineered for effortless field installation using standard SilencerCo Charlie front cap tools, the AC5219 protects the suppressor body threads from impact damage while providing professional flash suppression for tactical operators and night-hunting setups.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits SilencerCo suppressors with a Charlie front cap interface (Saker ASR series, Chimera 300, Velos LBP with Charlie end cap). Optimized for 5.56mm NATO / .223 Rem projectiles. (Not compatible with Bravo/Omega front caps, Alpha front caps, or suppressors with non-removable welded end caps).
- Perform a complete firearm safety check: drop the magazine, lock the action rearward, and visually inspect the chamber to verify zero live rounds are present.
- Ensure the suppressor is completely unmounted from the firearm and cool to the touch.
- Engage the factory SilencerCo Charlie front cap tool into the notches of the existing front cap.
- Unscrew the existing front cap counter-clockwise and remove it from the suppressor body tube.
- Clean the interior body threads thoroughly and apply a light coat of high-temperature anti-seize compound to the threads of the AC5219 Charlie IFH front cap.
- Thread the AC5219 cap into the suppressor body by hand until seated, then torque securely using the Charlie front cap tool.
- Verify bore alignment visually or using a 5.56mm alignment rod prior to live fire.
Key Features
- Integrated Flash Hider Tines: Tri-prong flash suppression geometry drastically reduces muzzle signature and flash bloom under night vision.
- Caliber-Matched Aperture Efficiency: Tight 5.56mm bore restriction minimizes gas escape to squeeze maximum decibel reduction out of .30-caliber suppressor bodies.
- High-Strength Stainless Steel Construction: Built to withstand intense muzzle blast erosion, extreme thermal expansion, and hard tactical field use.
- Matte Black Protective Finish: Non-reflective surface treatment resists chemical solvents, heat discoloration, and carbon adhesion.
- Direct Thread Replacement: Easily replaces factory flat caps on all standard Charlie suppressor housings using standard armorer end-cap wrenches.
- Made in the USA: Manufactured under SilencerCo's legendary quality standards in West Valley City, Utah.
Product Specifications
- Brand: SilencerCo
- Model/Series: Charlie IFH (Integrated Flash Hider) Front Cap
- MPN / SKU: AC5219
- UPC: 816413028889
- Caliber Compatibility: 5.56mm NATO / .223 Remington
- Suppressor Ecosystem Compatibility: SilencerCo Charlie Series (Saker ASR, Chimera 300, Velos LBP)
- Material: Stainless Steel
- Finish / Color: Matte Black
- Weight: 1.8 oz
- Country of Origin: USA
