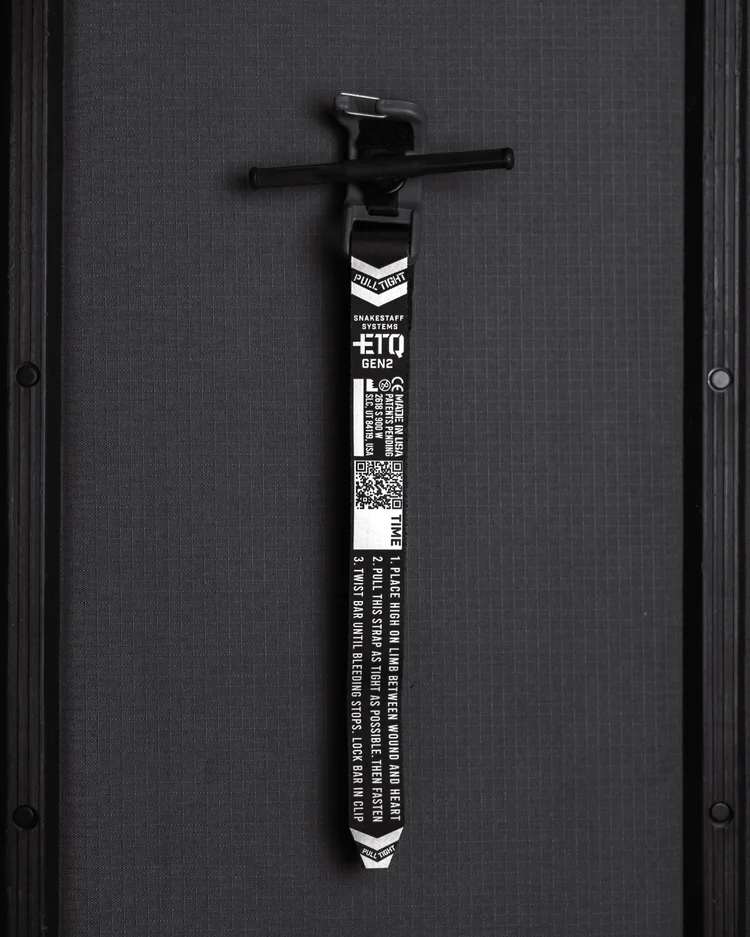

Snakestaff Systems ETQ Gen 2 Everyday Carry (EDC) Tourniquet - 1.00" - Grey - 162-00014
Product Description
Equipping a low-visibility patrol belt, everyday carry (EDC) pocket, or compact individual first aid kit (IFAK) for severe medical emergencies reveals an immediate physical bottleneck: the massive, awkward bulk of standard windlass tourniquets. Traditional trauma gear is built with thick, unyielding backplates that stick out in civilian clothing, forcing off-duty officers, hunters, and prepared citizens to leave their life-saving bleeding control gear in a vehicle or equipment locker. This creates a dangerous vulnerability when a severe arterial hemorrhage occurs. The **Snakestaff Systems™ Everyday Carry Tourniquet - Gen 2 (162-00014)** completely eliminates this compromise, packing an incredibly narrow **1.00-inch arterial compression band** into a revolutionary, flat-folding framework that is roughly **50% smaller** than industry-standard alternatives.
Meticulously engineered and assembled in the United States by an FDA-registered medical device manufacturer, the Gen 2 ETQ 1-inch model builds directly upon field-tested designs to deliver a minimized physical footprint under severe stress. The foundation of this life-saving tool is its **Mil-Spec 4088 structural webbing strap**, measuring 37.5 inches long to effortlessly secure limbs ranging from large adult thighs down to thin 1-inch K9 and pediatric extremities. This high-tensile material is backed with a specialized rigid webbing layer that prevents the strap from twisting or folding over itself when threaded through high-friction loops. Finished in a low-visibility tactical **Grey tone**, it integrates cleanly with modern grey chest rigs, uniform lines, or deep-concealment pocket spaces on your staging bench.
In high-stakes, fast-moving bleeding control frames where blood loss leads to shock within seconds, the patent-pending mechanical upgrades of the Gen 2 design provide a massive technical advantage. It introduces the **Power Curve™ slot**, a curved channel that evenly distributes incoming strap tension across the band to maximize occlusion pressure while guarding against localized tissue pinching. The windlass is controlled by a re-engineered **Tri-Grip Windlass™ rod**, utilizing three flat geometric surfaces per side to give bloody, slippery, or gloved hands superior rotational leverage over standard round bars. Supported by an integrated **steel Power Ring™** that elevates the windlass to clear the lock gate, users gain massive mechanical advantage on their very first twist. Once flow is controlled, the rod snaps cleanly into an enlarged **Carabiner Lock gate** to ensure absolute, failsafe security during rugged patient transport loops.
*Armorer Bench Notes & Technical Field Application Guidance: The Snakestaff Systems 162-00014 is a high-performance hemorrhage-control tool designed for immediate self-aid or buddy-aid applications; taking a certified Stop the Bleed® course is highly recommended to build real-world proficiency. CRITICAL MOUNTING & INITIAL LOCKUP RULES: The 1.00-inch variant provides the ultimate reduction in bulk, making it an outstanding standalone carry asset for slim jeans or low-profile storage. When staging this tourniquet in your pocket, mag pouch, or medical gear pack on your workbench, ensure the loop routing is pre-set for rapid deployment. **Application Advisory:** When applying the ETQ to a bleeding extremity, position the band **2 to 3 inches above the wound** (between the injury and the heart), and *always* pull the hook-and-loop strap completely tight and snug before you begin turning the windlass. Failing to remove the initial slack first will cause the internal webbing to bind up, wasting windlass rotations and delaying complete arterial occlusion. Once bleeding stops entirely, lock the windlass into the carabiner gate, note the application time on the integrated write-on surface, and pass the patient straight to professional EMS tracking.*
Key Features
- Ultra-Slim 1.00" Compression Band: Delivers a highly compact profile that minimizes friction along the skin while achieving maximum application pressure on targeted arterial pathways.

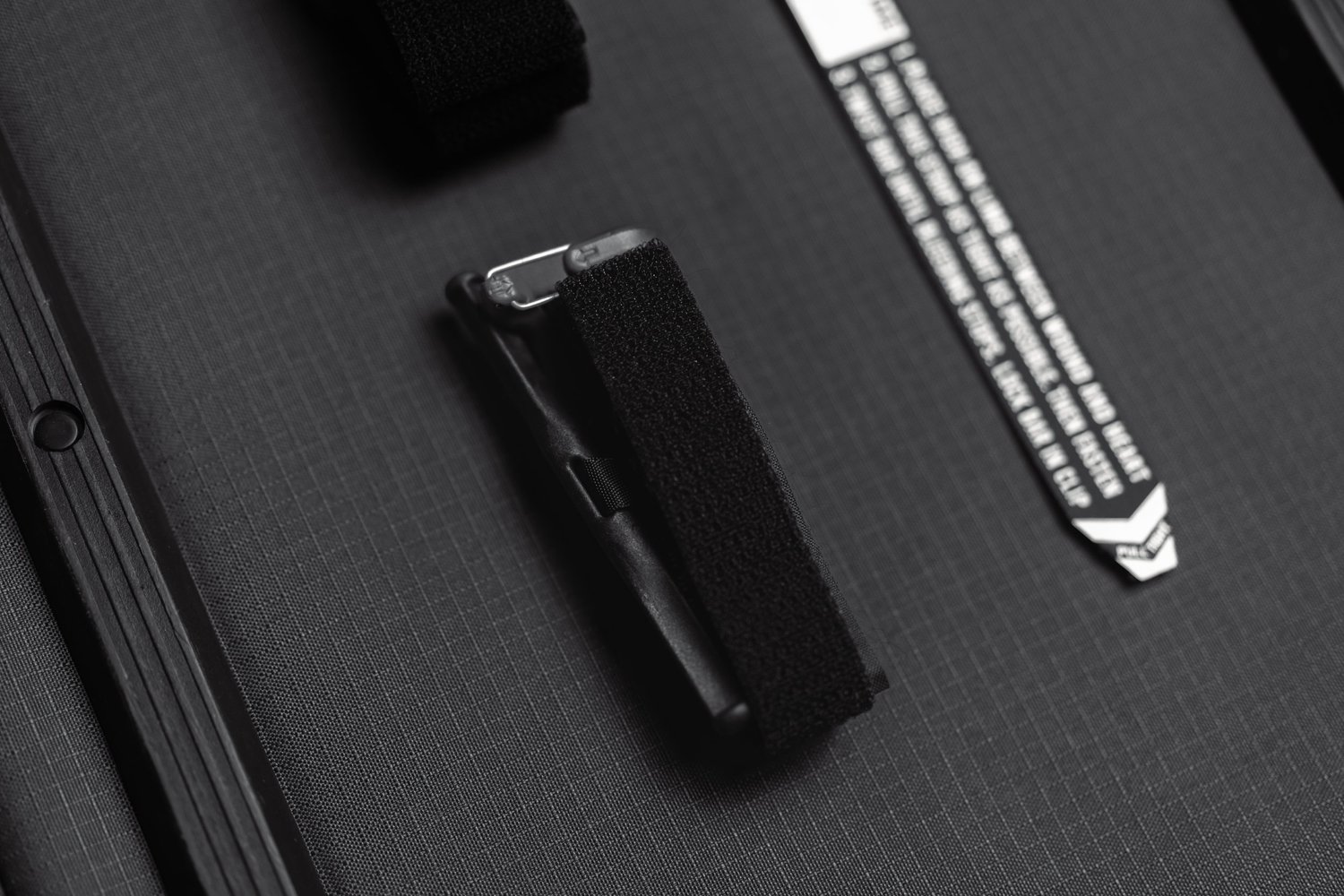

- 50% Smaller EDC Profile: The ultimate flat-folding, hyper-compact footprint easily slides into standard jeans pockets, multi-tool cases, or small pistol mag pouches, ending bulky gear excuses.
- Patent-Pending Power Curve™ Tech: Features a specialized curved slot interface that perfectly balances strap load across the band, preventing localized tissue edge tracking damage.

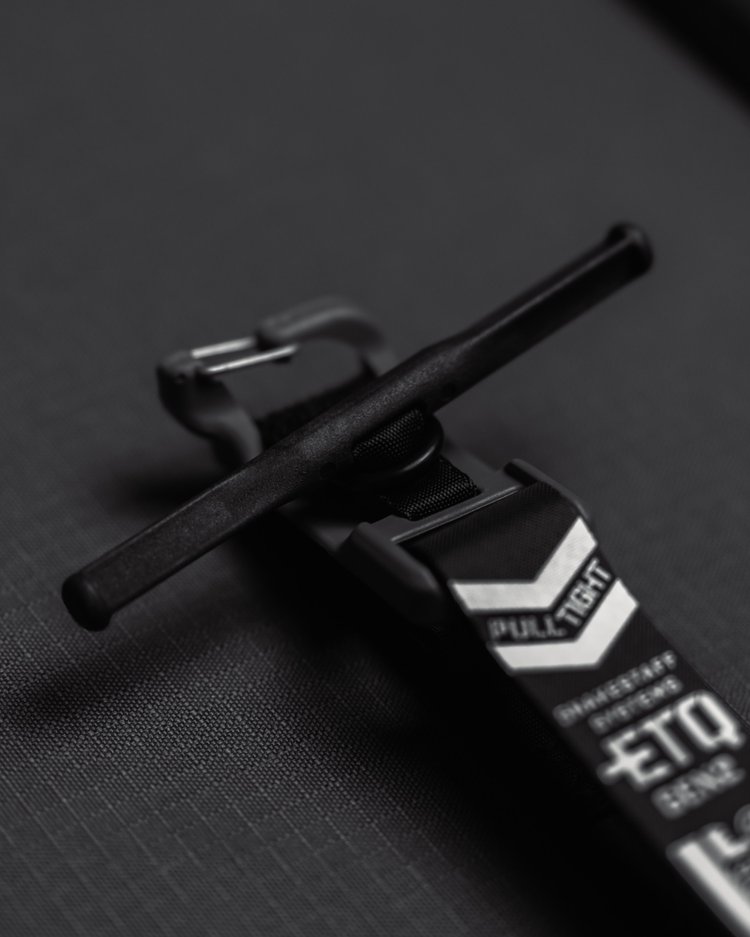

- High-Leverage Tri-Grip Windlass™: Designed with an injection-molded, high-strength composite rod utilizing three flat sides per section to ensure non-slip grip control with bloody or gloved hands.
- Failsafe Carabiner Lock: Built-in rigid wire-gate carabiner lock module features an enlarged entry window to simplify fast windlass storage and prevent accidental unlocking during transport.
Product Specifications
- Brand: Snakestaff Systems
- Model Line: Everyday Carry Tourniquet (ETQ™) Series - Generation 2
- MPN/SKU: 162-00014 (Also tracked as ETQ-GEN2-GRY)
- UPC Code Profile: 850080943069
- Application Profile: Emergency Hemorrhage Control / Severe Arterial Bleeding Control
- Strap Compression Width: 1.00 Inch (Ultra-Slim Footprint)
- Total Open Webbing Length: 37.5 Inches
- Patient Fitment Range: Adults, Children, and K9 Units (Effective on limbs down to 1" diameter)
- Strap Construction Material: Mil-Spec 4088 Structural Webbing with Rigid Web Support
- Windlass Structural Baseline: High-Strength UV-Stable Injection-Molded Polymer Composite
- Mechanical Lift Engine: Integrated Steel Power Ring™ Mechanical Advantage Base
- Retention Lock Architecture: Enlarged Wire-Gate Polymer Carabiner Shield
- Enclosure Finish Color: Tactical Combat Grey (Low-Vis Finish)
- Absorptive Properties: Completely Non-Absorbent, Marine Environment and Maritime Ready
- User Guidance Enhancements: Built-In Quick-Read Graphic Instructions & Integrated QR Code Reference Link
- Net System Mass: 1.50 Ounces (42.5 Grams - Ultra-Lightweight Medical Survival Core)
- Country of Manufacture: United States of America (Utah)
