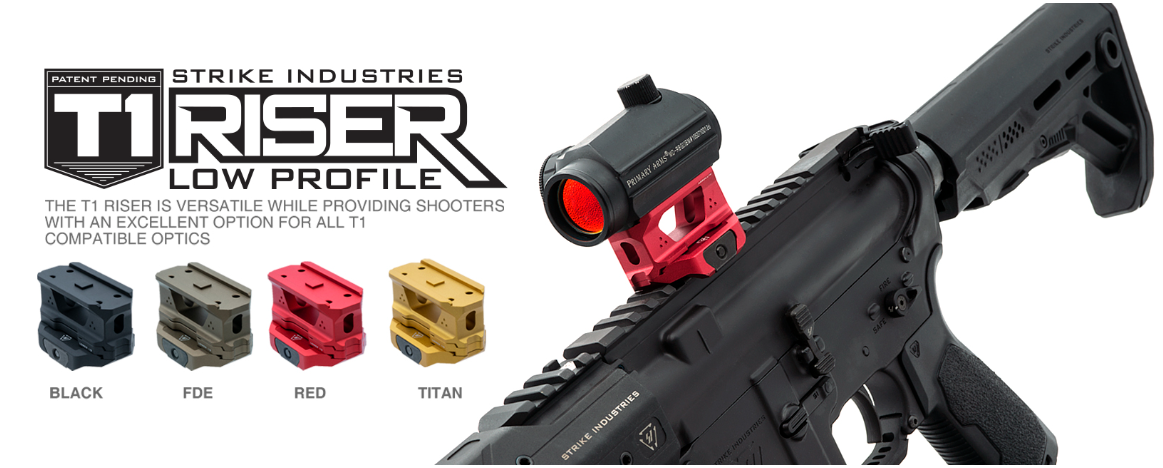

The REX T1 Riser Mount is a low profile, lightweight, T1 mount for AR platforms. Set at the ideal height for an absolute co-witness or lower 1/3 utilizing an additional spacer. The T1 Mount is versatile while providing shooters with an excellent option for all T1 compatible optics. With its modular design, you are able to mount your optics at your preferred heights.
Included Options:
T1 Riser in Lower 1/3 or Absolute
Dimensions
23.6 mm x 25.6 mm x 53 mm
Base 34 mm x 47.5 mm
Weight: 2.3 oz
Base: 6061-T6 Al, requires 5 rail sections/
Spacer: 6061-T6 Al
Clamp: Steel/ Screw: Steel
Finish: TIII Hard anodize (BK)/ TII Color Anodize
Package Includes
1X Single Use Locktite
1X 4mm Hex key
1X T10 Torx Wrench
4X M3 x 0.5mm Thread x 24mm Length Screws
4X M3 x 0.5mm Thread x 28mm Length Screws
1X Rail Mount Base
1X Lower 1/3 Height Spacer
1X Absolute T1 Mount
