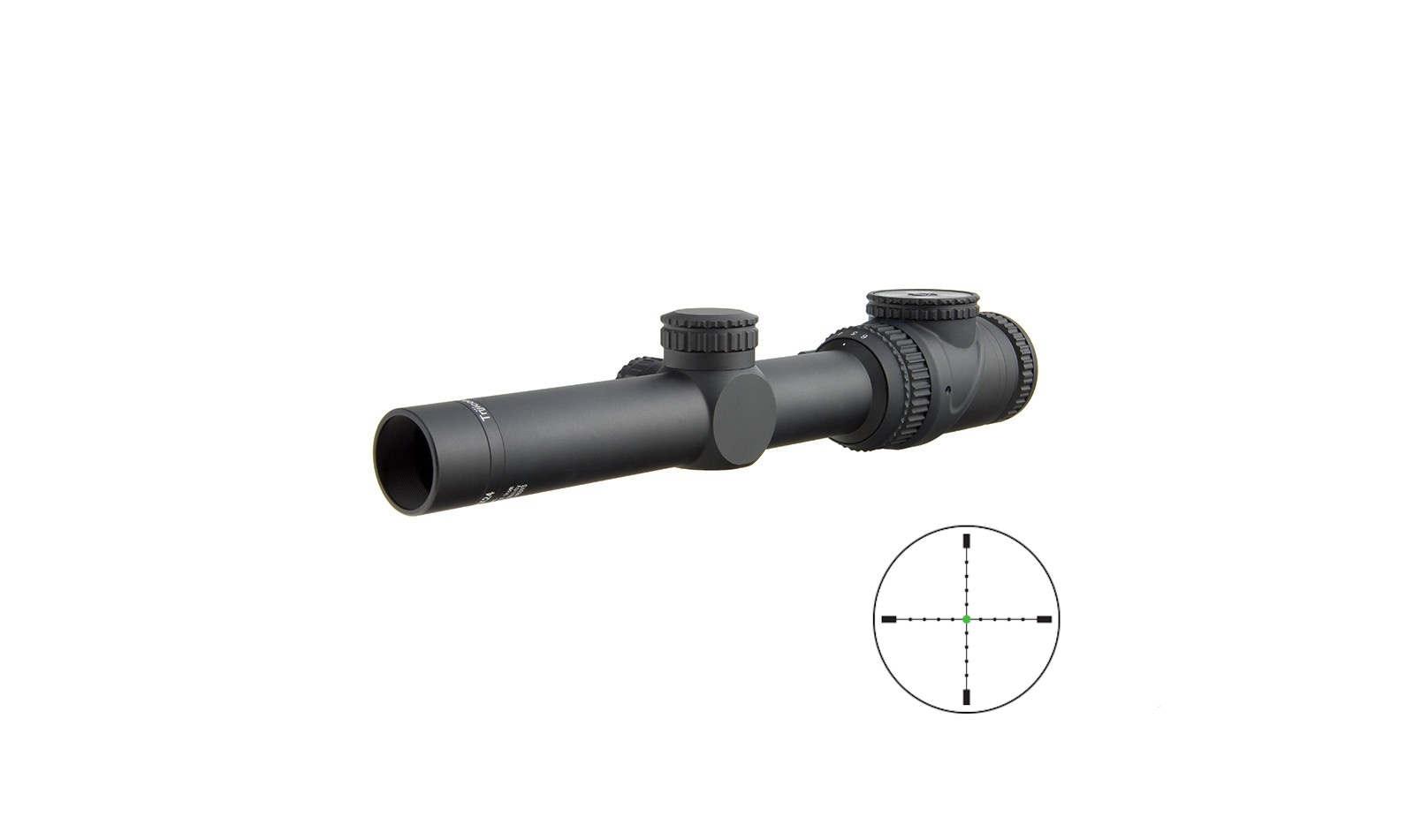

Trijicon AccuPoint 1-6x24mm SFP Rifle Scope - 30mm Tube, Mil-Dot Crosshair with Green Center Dot - Dual Tritium & Fiber Optic Illumination - Matte Black Finish - TR25-C-200095
Product Description
Staging a defensive carbine, long-range tactical platform, or multi-gun competition long gun for versatile target acquisition reveals an immediate, critical technological vulnerability: reliance on batteries. Traditional electronic red dots and illuminated low power variable optics (LPVOs) can fail unpredictably due to frozen circuits, corroded contacts, or depleted cell life when stored in emergency vehicle locks or tracking layouts on your workbench. The **Trijicon® AccuPoint® 1-6x24mm Variable Rifle Scope (TR25-C-200095)** completely eliminates electronic failure loops. Operating via a self-luminous, battery-free optical engine, this premier tactical glass provides an unrelenting, daylight-bright center point that remains completely active through any grid collapse or extreme climate shift.
Precision-machined from a monolithic block of premium, rugged **6000-series structural aircraft-grade aluminum alloy billet**, the 30mm main tube provides exceptional cross-axis stiffness and unyielding zero-retention internal alignment. The entire chassis is nitrogen-purged, shockproof, waterproof, and coated in a uniform, non-reflective **matte black hardcoat anodized shield** that actively repels trail moisture, carbon baking, and abrasive field scratching on your armorer's bench. At the center of its optical drive is an upgraded 1-6x zoom magnification system featuring a high-efficiency multi-coated lens array. This advanced glass path yields pristine light transmission, edge-to-edge geometric clarity, and an expanded variable range that speeds up snapshot execution at close quarters while granting extra reach at distance.
In high-velocity dynamic match stages, complex wind tracking environments, or tactical staging blocks, the advanced dual-illumination system of the **719307401716** blueprint provides an immense operational asset. It incorporates a top-mounted **advanced fiber-optic collector window** that automatically gathers ambient daylight to illuminate the center aiming dot with high-visibility green intensity. For total darkness tracking, an integrated **Tritium isotope capsule** takes over seamlessly, generating a soft, night-vision-compatible glow with zero manual switches. Positioned in the Second Focal Plane (SFP), the highly practical **Mil-Dot Crosshair** maintains its physical line dimensions across the entire 1x to 6x power spectrum, allowing marksmen to utilize time-tested mil-dot subtensions for ranging, windage, and elevation holdovers at maximum magnification.
*Armorer Bench Notes & Technical Field Assembly Guidance: The Trijicon AccuPoint TR25-C-200095 scope arrives completed and factory-packaged with 1x Trijicon Logo Scopecoat neoprene cover, a set of clear flip-up lens caps, an optional focus throw lever screw thread-in plug, a specialized lens cleaning pen, and an authorized technical alignment manual portfolio on your workbench. CRITICAL MOUNTING & OPTICAL RETICLE CALIBRATION LAWS: To secure this LPVO to a modern sporting rifle lower receiver, a premium 30mm cantilever scope mount (sold separately) is mandatory. Position the scope unibody inside the ring bases on your bench. Prior to anchoring the caps, verify the reticle horizontal line is perfectly aligned with your receiver using a precision bubble level system. **Torque Drive Parameters:** Secure the mount base clamps to the receiver rail at **30 in-lbs**. Tighten the 30mm top ring fasteners incrementally in a cross-star pattern to exactly **15 in-lbs**. Pro-Tip Illumination Adjustments: This battery-free scope features an integrated, rotating physical sunshade cover over the external fiber-optic housing on the eyepiece. Armorers can manually rotate this dial to cover the fiber window under blinding midday desert sun, instantly tailoring the green dot's contrast to prevent reticle bloom and lock in absolute aiming precision downrange.*
Key Features
- Battery-Free Dual Illumination: Combines advanced fiber optics for automatic daytime illumination with an internal Tritium core for total night target tracking without batteries.
- Daylight-Bright Green Center Dot: Employs a high-visibility green fiber center dot nested within a Mil-Dot crosshair, delivering immediate red-dot tracking speed at 1x magnification.
- Extended 1-6x Variable Spectrum: Upgraded low power variable optic properties support true 1x magnification for close-quarters threat indexing, scaling smoothly up to 6x for mid-to-long-range targets.
- Monolithic 30mm Armor Tube: CNC-machined from ultra-tough 6000-series structural aircraft aluminum billet to provide a shockproof, waterproof framework that withstands heavy recoil.
- Manual Fiber Optic Sunshade Cover: Outfitted with an external sliding dial ring over the fiber collector, allowing manual control of dot brightness to eliminate reticle bloom.
- Tactical Mil-Dot SFP Reticle: The multi-purpose Mil-Dot reticle configuration remains uniform in size across all magnifications, ensuring an unobstructed field of view while allowing manual calculation tracking at 6x.
Product Specifications
- Brand: Trijicon® (Wixom, Michigan)
- Model Line: AccuPoint® High-Performance Low Power Variable Optic (LPVO) Series
- MPN/SKU: TR25-C-200095 (Also cataloged as TR25-C-200095-MILDOT)
- UPC Code Profile: 719307401716
- Magnification Spectrum: 1x - 6x Variable Range
- Objective Lens Diameter: 24 mm Clear Aperture
- Main Tube Structural Diameter: 30 mm Monolithic Tube
- Reticle Pattern Profile: Mil-Dot Crosshair with Illuminated Center Dot
- Illumination System Core: Tritium Isotope (Low Light) & Dual Fiber Optic Cable Matrix (Daylight)
- Illumination Dot Color: Daylight-Bright High-Contrast Green
- Focal Plane Location: Second Focal Plane (SFP / Reticle dimensions stay fixed)
- Adjustment Click Graduation: 1/4 MOA (Minutes of Angle) Per Click Detent
- Total Windage & Elevation Travel: 110 MOA Total Adjustment Tracking Window
- Linear Field of View @ 100 Yds: 1x: 117.50 Feet | 6x: 18.80 Feet (Ultra-Wide Scanning Lane)
- Eye Relief Parameter Window: 3.50 Inches - 3.90 Inches (Extremely Forgiving Eyebox Profile)
- Exit Pupil Diameter Range: 1x: 12.0 mm | 6x: 4.1 mm
- Chassis Housing Material: 6061-T6 / 6000 Series Aircraft-Grade Structural Aluminum Billet
- Exterior Coating Shield: Matte Non-Reflective Black Hardcoat Anodization
- Turret Style Configuration: Capped Low-Profile Resettable Hunting/Tactical Turrets
- Environmental Protection Level: Fully Submersible Waterproof, Fogproof, and Extreme Mil-Standard Shock Resistance
- Overall Optic Unit Length: 11.00 Inches (279.4 mm Extended Carbine Footprint)
- Net System Mass: 19.20 Ounces (544.3 Grams Lightweight Agile Optics Architecture)
- Country of Assembly: Proudly Built, Inspected, and Calibrated by Trijicon USA technicians
- Manufacturer Warranty: Fully Backed by Trijicon Limited Lifetime Warranty (Tritium Lamp Cover for 15 Years from Build Date)
