Trijicon RCR Sealed Reflex Sight - 3.25 MOA Red Dot - RCR1-C-3300001
Product Description
Deploying a primary duty pistol or tactical carbine system for harsh field operations, military patrol, or high-intensity self-defense highlights an immediate optical bottleneck: open-emitter reflex sight exposure. Traditional open red dot sights are vulnerable to mud splash, torrential rainfall, drifting snow, or loose pocket lint settling directly over the internal LED emitter diode. This physically blocks the projecting laser path, instantly washing out your aiming dot and stripping away downrange target tracking capabilities when split-seconds matter most. The **Trijicon® RCR™ (Ruggedized Closed Reflex) Sight** completely eliminates these battlefield liabilities, wrapping a precision-machined, completely sealed nitrogen-purged optical block around an elite dual-magnification lens array built to survive the harshest combat environments.
Precision-engineered in Wixom, Michigan, from a single block of high-tensile, patented **7075-T6 structural forged aluminum alloy**, the RCR is built to withstand extreme abuse. It features a unique, angular unibody profile that actively redirects heavy impact forces away from the multi-coated glass viewing windows. This design echoes the legendary durability lines of Trijicon’s battle-proven RMR series. The entire metal unibody is wrapped in a uniform, non-reflective hard-anodized black jacket that resists abrasive holster wear, corrosive hand sweat, and chemical solvents. By implementing an innovative **capstan screw mounting matrix**, Trijicon eliminates the need for proprietary adapter rails—the RCR mounts natively onto standard **Trijicon RMR® footprint** slides and optics plates using standard thread holes, ensuring an ultra-low-profile centerline without compromising on hardware strength.
In high-velocity live-fire tracking sequences or extreme lighting transitions, the crisp **3.25 MOA Red Dot reticle** provides a substantial mechanical advantage. This balanced reticle size offers an optimized, high-speed combination: a dot large enough for instantaneous close-quarters target indexing, yet sharp enough for precision shot placement out at extended ranges. Driven by an advanced, top-loading LED circuit block, the system features **10 manual brightness steps**—including 3 dedicated night-vision profiles and 1 super-bright daylight mode. Backed by an intelligent automatic illumination logic track and a **top-loading CR2032 battery deck** that lets you swap power on your bench without unseating the optic or shifting your physical live-fire zero, this sealed powerhouse locks down complete situational authority.
*Armorer Bench Notes & Technical Installation Guidance: The Trijicon RCR (MPN: RCR1-C-3300001) features native cross-compatibility with standard **Trijicon RMR footprints**, meaning it fits flush over existing slide cuts without an extra high-rise plate. CRITICAL MOUNTING INSTRUCTIONS: Because the enclosed housing prevents driving vertical screws straight through the top, you must utilize the included capstan screws and specialized Allen-pin drive tool. Guide the capstan fasteners into the side channels and rotate them horizontally to cinch the base frame downward onto the slide, torquing to a firm 15 in-lbs. Never exceed 15 in-lbs or use traditional vertical hex bits, which will mar the side walls. When setting up your zero, note that the windage and elevation click dials operate on 1 MOA per graduation increments and feature positive detent snaps. Keep the dual-pane glass surfaces clean using a microfiber cloth; the assembly is completely waterproofed and submersible to a depth of 65 feet (20 meters).

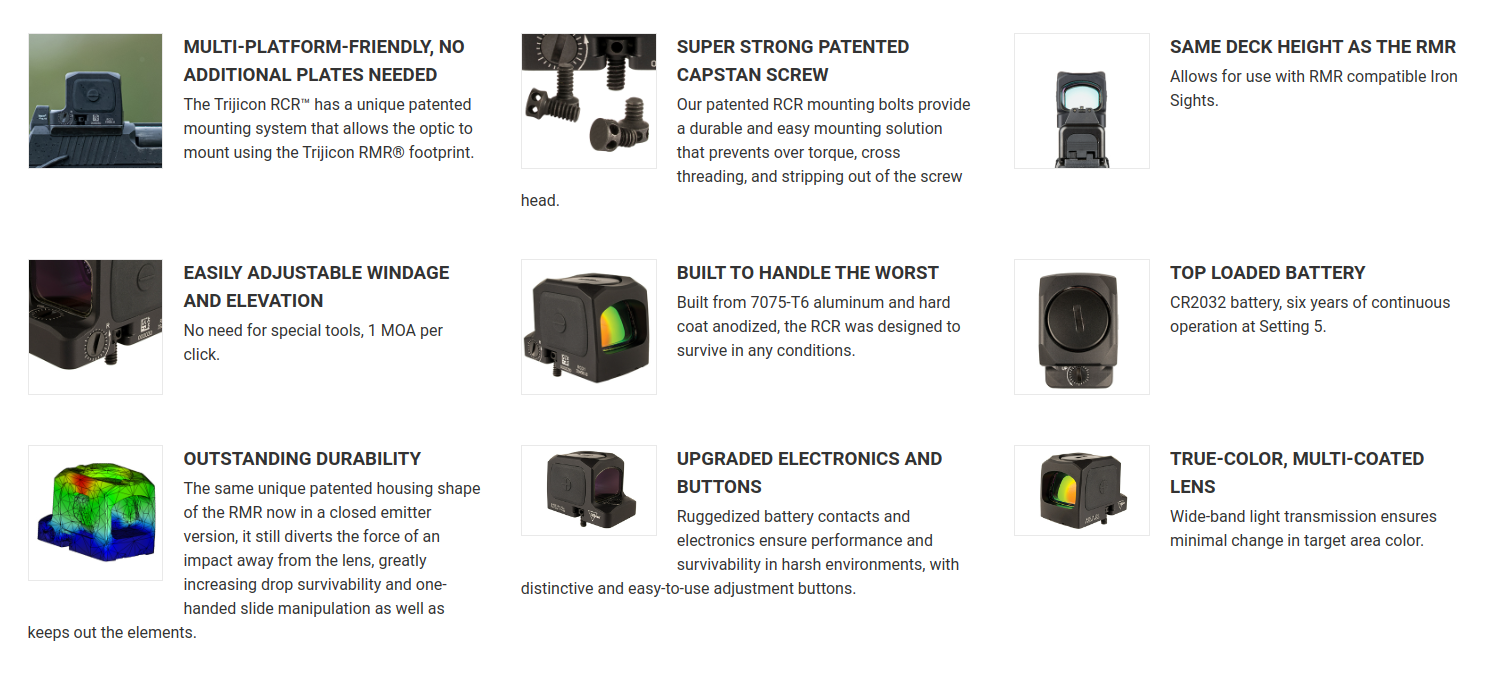

Key Features
- Completely Enclosed Optical Deck: Seals the LED emitter inside a rugged, nitrogen-purged dual-pane glass chamber, keeping the dot safe from mud, rain, and debris.
- Direct RMR Footprint Integration: Mounts natively onto existing RMR-cut slides and optic plates via patented capstan screws, preserving your low-profile deck height.
- Forged 7075-T6 Structural Alloy: Engineered from the same high-end military aluminum alloy as standard receiver blocks, absorbing heavy slide velocities and drop impacts.
- Top-Loading CR2032 Battery Tray: Features a top-accessible battery cap that allows operators to swap power cells instantly on the bench without altering rifle or handgun zeros.
- 10 Illumination Brightness Settings: Outfitted with user-adjustable buttons providing 1 super-bright daylight tier and 3 clear night-vision options for seamless multi-role operation.

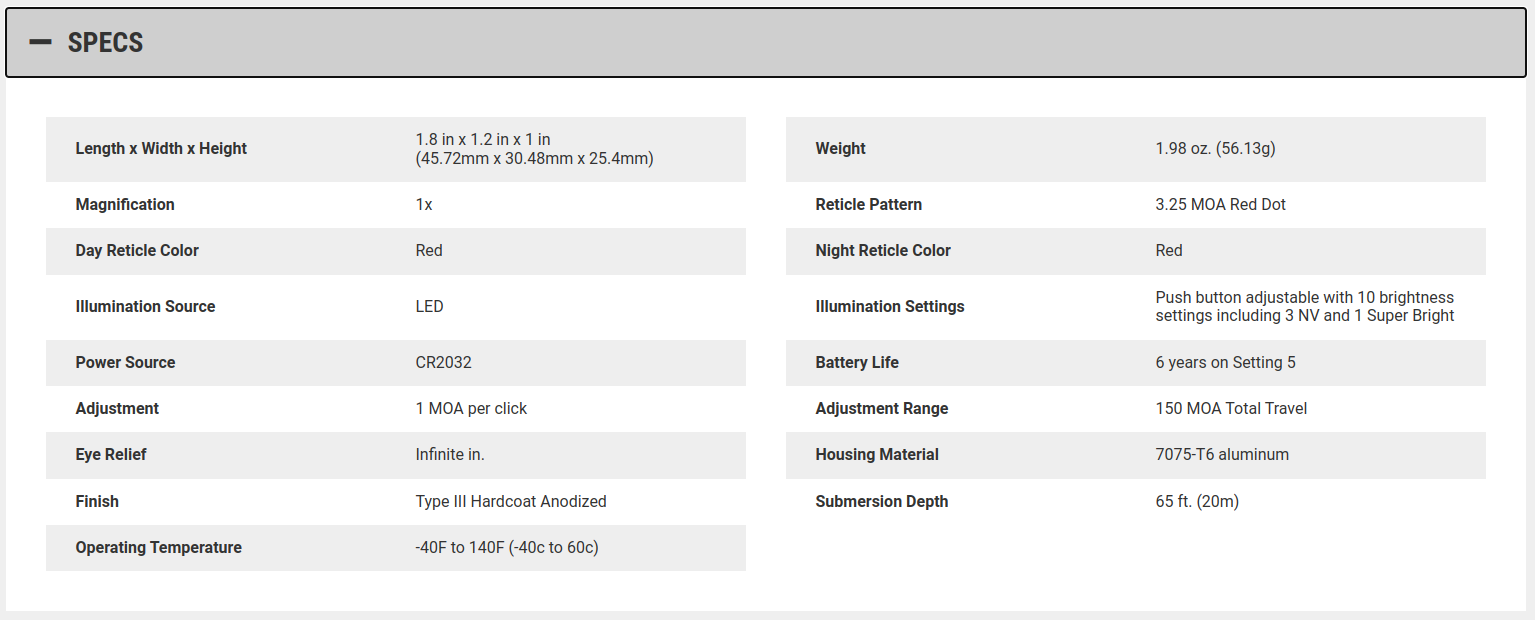

Product Specifications
- Brand: Trijicon
- Model Line: Ruggedized Closed Reflex (RCR) Series
- MPN/SKU: RCR1-C-3300001
- UPC Code Profile: 719307619609
- Optic Type Focus: Sealed Combat Reflex Sight (Enclosed Emitter)
- Magnification Power: True 1x Zoom
- Reticle Geometry Pattern: 3.25 MOA Aiming Red Dot
- Illumination Source Type: High-Efficiency Adjustable LED Drive
- Reticle Color Tone: Daylight-Bright Red
- Brightness Graduation Matrix: 10 Settings Total (6 Standard Manual / 1 Super-Bright / 3 Night Vision Modes)
- Adjustment Turret Graduation: 1 MOA Click Value Steps
- Total Adjustment Travel Range: 150 MOA Total Elevation & Windage Travel Scope
- Slide Mount Interface: Patented Capstan Screws (Natively Fits Trijicon RMR® Geometric Footprint)
- Chassis Housing Core Material: Forged 7075-T6 Aerospace Aluminum Structural Block
- Exterior Finish Treatment: Hardcoat Matte Black Anodization
- Waterproof Certification Level: Fully Submersible to 65 Feet (20 Meters / IP68 Baseline Profile)
- Power Supply Configuration: 1x CR2032 Lithium Button Cell Battery
- Active System Battery Life: Up to 6 Years of Continuous Runtime at Mid-Setting 4
- Viewing Window Dimensions: 0.87" x 0.63" (22 x 16 mm)
- Overall Unit Geometry: 1.9" L x 1.7" W x 1.3" H (48 x 43 x 33 mm)
- Net Optic Mass: 1.95 Ounces (Including Integrated Battery Core)
- Country of Manufacture: United States of America
