Trijicon ACOG 3.5x35 BAC Scope Red Crosshair .223 BDC - TA11-J-100158

*CONTACT US FOR A SPECIAL COUPON CODE*

Trijicon ACOG 3.5x35 BAC Riflescope Red Crosshair .223 BDC - TA11-J-100158 - UPC 719307302730

Product Description

The Trijicon ACOG 3.5x35 BAC Riflescope (TA11-J-100158) is a battle-proven fixed-magnification optical sighting system purpose-built for M16, M4, and AR-15 flattop carbine platforms. Utilizing Trijicon's legendary battery-free dual illumination technology, daytime reticle brightness is automatically regulated by an external fiber optic light pipe, while a phosphor tritium lamp illuminates the aiming point in total darkness. Featuring an illuminated Red Crosshair reticle with a integrated Bullet Drop Compensator (BDC), this optic provides precise holdover reference points out to 1,000 meters calibrated specifically for 5.56x45mm NATO / .223 Remington ballistics.

Engineered around a forged 7075-T6 aircraft-grade aluminum housing, the 3.5x35 TA11 model delivers exceptional impact resistance, structural integrity, and thermal stability in extreme combat environments. The 3.5x magnification combined with a generous 2.4-inch eye relief and a massive 10mm exit pupil provides rapid target acquisition and a forgiving eyebox. Utilizing the Bindon Aiming Concept™ (BAC), shooters can engage targets rapidly with both eyes open, preserving critical peripheral vision and situational awareness during close-quarters or dynamic engagements.

Equipped with the combat-proven TA51 flattop thumbscrew mount, the ACOG clamps securely to any standard MIL-STD-1913 Picatinny receiver rail. Nitrogen-filled to completely eliminate internal fogging and waterproofed to 100 meters, the TA11-J-100158 provides unyielding, battery-independent operational readiness across all tactical lighting conditions.

*Armorer Bench Notes & Real-World Staging Guidance:

Fitment Matrix: Mounts directly to MIL-STD-1913 Picatinny flattop upper receivers via the included TA51 thumbscrew mount. BDC reticle is calibrated for standard 5.56 NATO / .223 Remington loads out of 16-inch barrel configurations.

1. Clean top upper receiver Picatinny rail slots to ensure a solid clamping interface free of debris or grease.
2. Place the TA51 mount onto the receiver rail, pushing the optic forward toward the muzzle to seat cross-bolts firmly against the rail recoil slots.
3. Hand-tighten thumbscrews until snug, then secure an additional 1/4 turn using a coin or screwdriver. Apply Blue Loctite 242 to thumbscrew threads for duty staging.

Key Features

• Dual Illumination Battery-Free System: Fiber optics automatically regulate daytime brightness while tritium illuminates the reticle at night.
• 3.5x35 Optical Configuration: Offers a wide field of view, generous 2.4" eye relief, and forgiving 10mm exit pupil for fast sight alignment.
• Red Crosshair .223 BDC Reticle: Clean, precise crosshair interface featuring bullet drop compensation holdovers out to 1,000 meters.
• Bindon Aiming Concept™ (BAC): Facilitates dual-eye shooting for enhanced situational awareness and rapid target acquisition.
• Forged 7075-T6 Aluminum Housing: Mil-spec ruggedness capable of withstanding extreme recoil, environmental moisture, and impact shock.

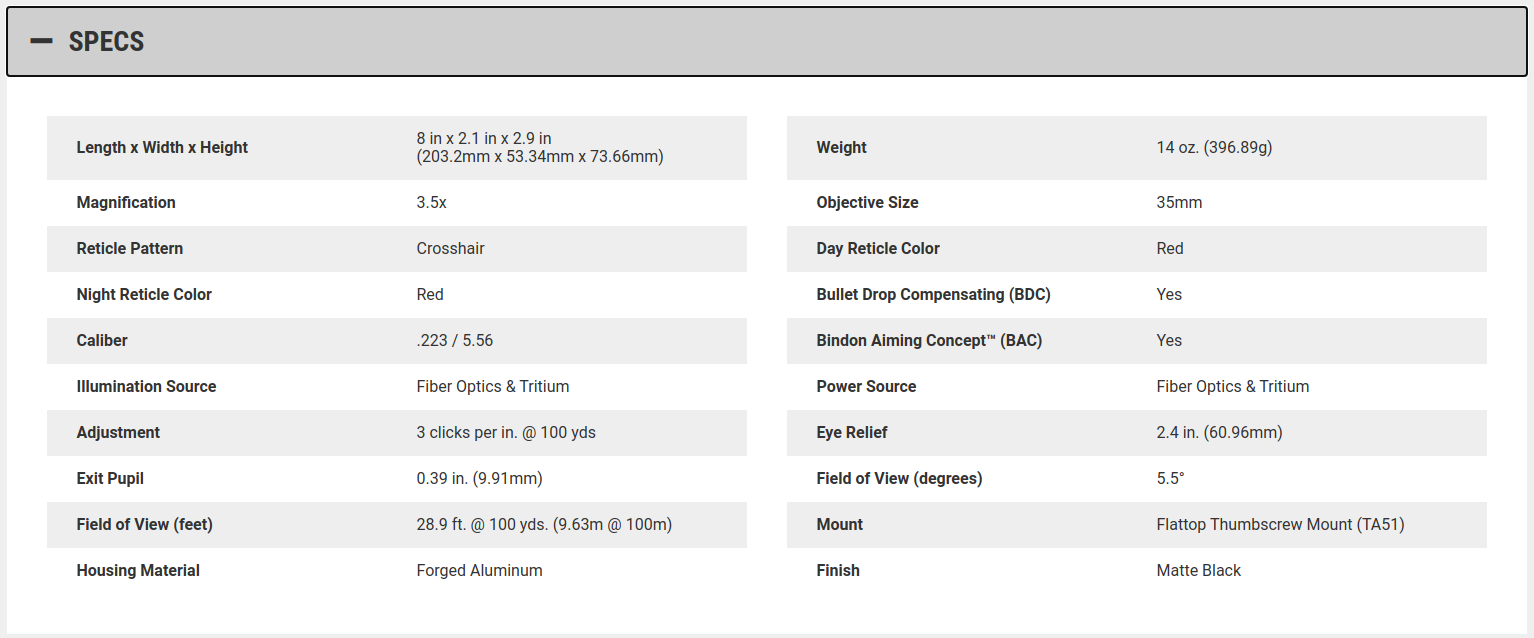

Product Specifications

• Brand: Trijicon
• Model: ACOG 3.5x35 BAC Riflescope
• MPN: 100158 (TA11-J-100158 / TA11J)
• UPC: 719307302730
• Magnification: 3.5x
• Objective Lens Diameter: 35 mm
• Reticle Pattern: Crosshair with BDC
• Illumination Color: Red
• Caliber Calibration: .223 Remington / 5.56x45mm NATO
• Eye Relief: 2.4 in (60.96 mm)
• Exit Pupil: 10.0 mm
• Housing Material: Forged 7075-T6 Aluminum
• Mount Type: TA51 Flattop Thumbscrew Mount (MIL-STD-1913)
