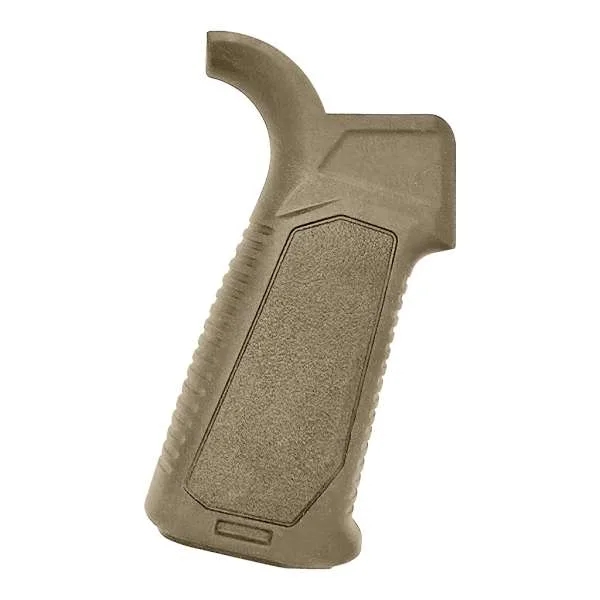

XTS 15 Degree AR Rubberized Pistol Grip Fits AR 15 Flat Dark Earth XTS 501TNK UPC 767820118604
Product Description
The XTS 15-Degree AR Rubberized Pistol Grip in Flat Dark Earth (MPN: XTS-501TNK) is an ergonomic control interface designed to optimize hand positioning, wrist comfort, and weapon manipulation on modern AR-15 rifles and short-barreled carbines. Featuring a modern reduced 15-degree grip angle (compared to traditional 25-degree A2 profiles), this grip brings the shooter's wrist into a natural, vertical alignment—drastically reducing wrist fatigue on compact Personal Defense Weapons (PDWs), short-barreled rifles (SBRs), and carbines with collapsed stocks.
Constructed with an impact-resistant polymer core overmolded with a textured, tacky rubberized outer layer, the XTS-501TNK provides superior non-slip traction under all weather conditions, whether operating with wet hands or tactical gloves. The ergonomic palm swell and subtle finger grooves naturally index the shooting hand, promoting consistent trigger finger placement and enhanced recoil absorption during rapid-fire strings.
Finished in a clean Flat Dark Earth (FDE) tone, the grip installs easily onto any standard Mil-Spec AR-15 or AR-10 lower receiver. The package includes an integrated bottom storage compartment cap, allowing shooters to store spare batteries, small tools, or emergency cleaning supplies directly inside the grip handle. Backed by XTS's commitment to high-value firearm accessories, the XTS-501TNK is an essential ergonomic upgrade for custom rifle builds.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits standard Mil-Spec forged and billet AR-15, M4, M16, AR-10, LR-308, and PCC lower receivers. (Note: Takes standard AR pistol grip mounting screws; take care during installation to capture and align the safety selector detent spring located in the lower receiver right-side grip channel).
- Perform a complete firearm safety check: drop the magazine, lock the bolt rearward, and visually inspect the chamber to verify zero live rounds are present.
- Place the lower receiver upside down on a padded bench block.
- Remove the existing pistol grip screw and washer from inside the old grip cavity using a long hex key or flathead screwdriver.
- Slowly pull the old grip upward, ensuring you capture the exposed safety selector detent spring and detent pin.
- Place the safety selector detent spring into the receiving channel of the new XTS-501TNK grip.
- Align the grip onto the lower receiver grip tang, ensuring the spring compresses straight into its receiver pocket without bending or crushing.
- Insert the mounting screw and washer through the interior grip cavity into the receiver threads, torquing to manufacturer specification (approx. 25–30 in-lbs). Test safety selector mechanical engagement before range deployment.
Key Features
- Modern 15-Degree Vertical Angle: Brings wrist into a natural, vertical orientation to reduce fatigue on compact carbines and short-LOP stocks.
- Rubberized Overmolded Traction Surface: Tacky rubber exterior provides a high-friction, non-slip grip under wet conditions or with gloves.
- Ergonomic Contour & Palm Swell: Designed to naturally index hand placement for consistent, repeatable trigger finger positioning.
- Integrated Storage Compartment: Hollow core features a secure hinged or trapdoor bottom plug for storing batteries, oil bottles, or small parts.
- Impact-Resistant Core Construction: Reinforced polymer inner chassis withstands severe mechanical stress and thermal variance.
- Flat Dark Earth (FDE) Tactical Finish: Color-matched FDE finish seamlessly coordinates with popular modern tactical component schemes.
Product Specifications
- Brand: XTS (Xtreme Tactical Optics)
- Model/Series: 15 Degree AR Rubberized Pistol Grip
- MPN / SKU: XTS-501TNK
- UPC: 767820118604
- Grip Angle: 15 Degrees
- Platform Compatibility: Universal AR-15 / M4 / AR-10 / LR-308 / PCC Lower Receivers
- Material: Impact-Resistant Polymer w/ Rubberized Overmold
- Finish / Color: Flat Dark Earth (FDE)
- Weight: 3.6 oz
- Country of Origin: USA / Imported
