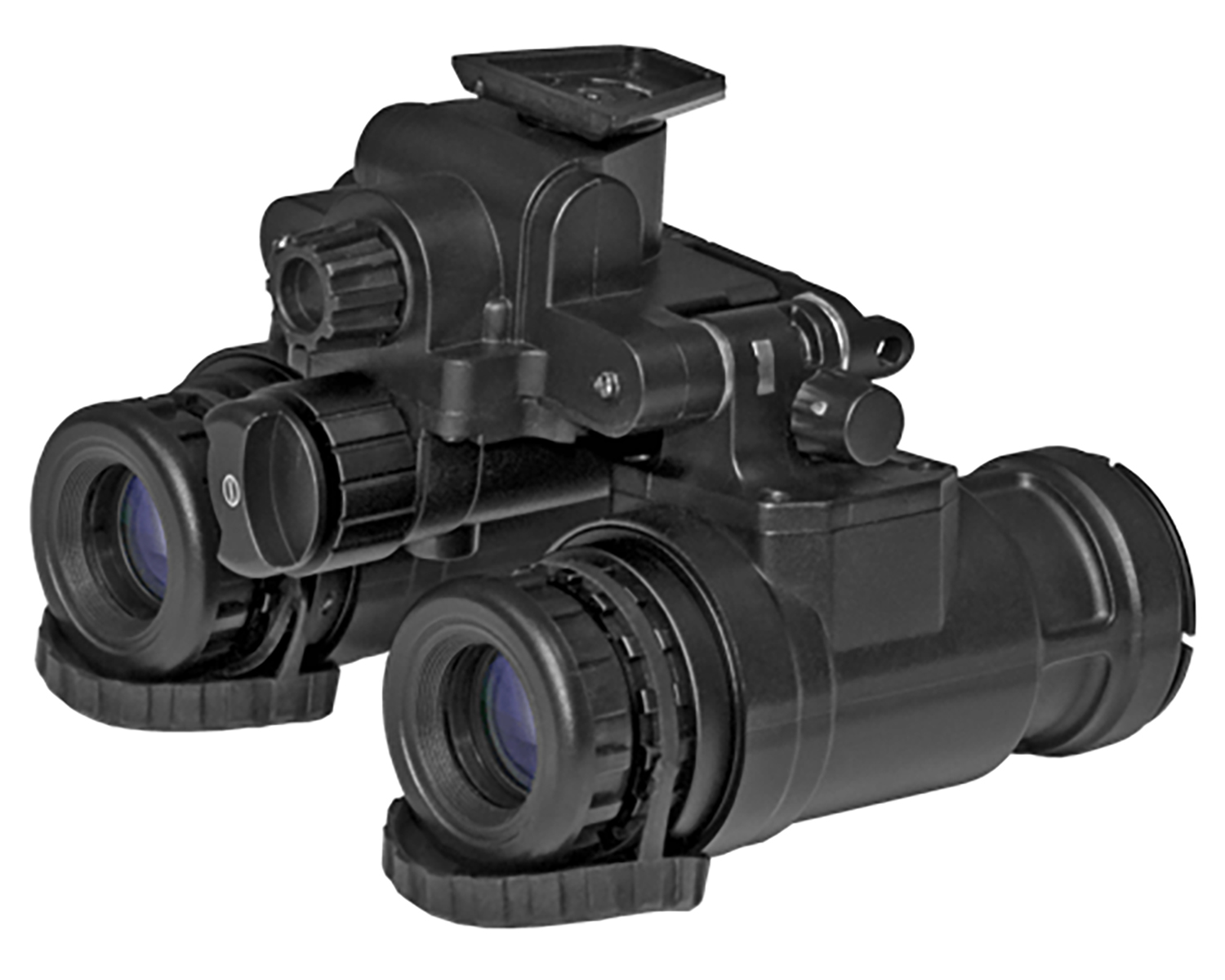

ATN PS31-3W Tactical Dual-Tube Night Vision Goggle - Gen 3 Auto-Gated White Phosphor IIT, 1X Magnification, Flip-Up Articulating Pods, Matte Black Waterproof Housing - NVGOPS3143W
Product Description
Navigating rough terrain or conducting multi-hour observation loops in complete darkness with a single-tube monocular forces a difficult compromise. Relying on a one-eye optic eliminates your depth perception and causes quick mental fatigue on your staging bench. The **ATN® PS31-3W Gen 3 Auto-Gated White Phosphor Dual-Tube Night Vision Goggle (NVGOPS3143W)** solves this structural limit. It delivers a full binocular night vision layout anchored by dual, synchronized **Generation 3 image intensifier tubes** to maximize stereoscopic depth tracking downrange.
Proudly engineered to meet uncompromised tactical and field-service specifications, the PS31 system platform uses an advanced **Auto-Gated power supply network**. This specialized matrix actively manages photocathode voltage on and off in fractions of a second, buffering your view against sudden light dynamic surges—such as flashlights, headlights, or urban streetlights—to prevent image blooming and shield the tube's core from burn damage. The premium **WPT White Phosphor** technology outputs a clean, natural black-and-white field of view that is far easier for the human eye to process than traditional green hued screens, sharpening object outlines across thick brush or complex building layouts.
Each independent optical tube is built onto a rugged, articulating hinge system. This allows you to flip one or both pods up out of your line of sight instantly when transitioning between low-light areas, providing elite tactical staging control on your workbench.
The Complete Tactical Binocular Bundle Checklist
- PS31-3W Dual-Tube Night Vision Goggle Assembly
- Oversized Flip-Up Rubber Eye Cups Shrouds
- Sacrificial Windows Front Glass Protectors
- Demist Shields Eyepiece Anti-Fog Sleeves
- Universal NVG Dovetail Interface Mounting Shoe
- High-Capacity External Battery Pack Module (with power cable)
- Waterproof Hard Shell Tactical Presentation Case
- Lens Cleaning Microfiber Cloth Unit
- 1x Lithium CR123A Battery Core
- Factory Packing Container & Detailed Operator Manual
Key Features
- True Dual-Tube Stereoscopic View: Outfitted with two dedicated Gen 3 tubes to deliver complete depth perception, making driving, running, and climbing natural at night.
- Gen 3 Auto-Gated Power Core: Features advanced auto-gating power cycles that instantly buffer sudden light surges, preserving the tube's resolution while protecting your eyes from temporary blindness.
- White Phosphor Technology (WPT): Provides a high-contrast black-and-white image interface that minimizes eye fatigue and sharpens structural lines compared to classic green phosphor screens.
- Independent Articulating Pods: Engineered with dual pivoting arms that allow you to swing one or both tubes up against your helmet brim when passing into lit areas.
- Integrated Infrared (IR) Illuminator: Equipped with a discrete, built-in infrared light pocket and focus lens to provide active illumination when working in total darkness.
- Compact Lightweight Structural Goggle: Housed inside an ultra-rugged, fiber-reinforced polymer shell that minimizes helmet neck strain during long-distance tracking loops.
Product Specifications
- Brand: ATN® / American Technologies Network Corp. (Doral, Florida)
- Model Line: PS31 Series High-Performance Professional Dual-Tube Night Vision Systems
- MPN/SKU Code: NVGOPS3143W (Also cataloged as PS31-3W / NVGOPS313W)
- UPC Code Profile: 658175125198
- Image Intensifier Tube Class: Dual Generation 3 Auto-Gated Photocathode Tubes (WPT Spec Core)
- Phosphor Screen Type Profile: White Phosphor Technology (Natural Contrast High-Definition Display)
- Standard Resolution Matrix: 64-72 lp/mm (Line Pairs Per Millimeter Duty Grade System)
- Optical System Lens Build: 27mm, F/1.2 Multi-Coated Heavy-Duty Structural Glass Lens Group
- Magnification Rating Profile: True 1X Fixed Optical Level (No tracking distortion footprint)
- Field of View (FOV) Window: 40.0 Degrees Extra-Wide Tactical Spatial Awareness Path
- Diopter Adjustment Spectrum: -6 to +2 dpt Focus Ring Dial Rotation
- Interpupillary Distance Adjust: 54mm to 76mm Dual-Axis Lateral Tracking Slider Slide
- Focus Tracking Distance Range: 0.25 Meters (~0.8 Feet) out to Infinity Alignment Limits
- Onboard Power Supply: 1x 3V CR123A Battery (Accepts external 4x AA battery pack for extended runtimes)
- Total Battery Life Endurance: Continuous ~60 Hours Operating Level using external power pack cell matrix
- Waterproofing Rating Profile: IP67 Standard Sealed Core Assembly (Waterproof submersibility up to 1m)
- Operating Thermal Threshold: -40°C to +50°C (-40°F to +122°F Duty Staging Envelope)
- Product Type Category: Electro-Optics / Tactical Dual Tube Night Vision Goggles
- Overall Unit Core Dimensions: ~4.50" x 4.00" x 3.30" (~115 mm x 101 mm x 84 mm Chassis)
- Net Component Module Mass: ~16.80 Ounces (~476.2 Grams Ultra-Light Balanced Dual-Pod Core Weight)
- Country of Engineering Design: Conceived, Calibrated, and Quality Inspected to Rigid Field Parameters
- Warranty Tracking Protection: Fully Backed by ATN Factory 2-Year Limited Warranty Cover
