LANTAC UPS-S Ultimate Takedown Pin Set

$27.99 - $36.99
No reviews yet Write a Review
  • $7.95 Flat Rate Shipping

  • Easy Returns

  • Safe Payments

  • The Best Products

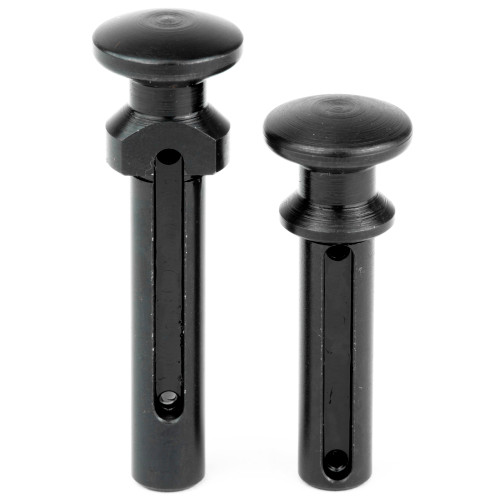

PS-S™  Ultimate Takedown Pin Set.

Precision machined on Swiss style turning centers our Ultimate Takedown Pin sets are manufactured from the highest quality materials to the highest standards.
They ship complete with our 3D printed rear pin removal tool (RTT™).
The Patent Pending UPS™ (Ultimate Pin Set) allows the user to install and remove an AR15 Pivot Pin without the use of a tool.
The unique design incorporates a ramped groove that holds the detent in place at the time of installation and another ramp allows access to the retaining slot
at 90° to groove.
Pins feature Patent Pending aggressively crenulated heads for improved grip, this facilitates easier removal of the pin from the receiver.
QUICKSAFE™
Our UPS™ Pin system has a built in safety feature that can be utilized by anyone wanting to make it difficult for an Upper Receiver to be fitted to a Lower Receiver.
To render a lower receiver inoperable the user can quickly remove the front Pivot Pin (Spring & Detent) and insert it through the rear Takedown pin hole from
the other side of the receiver. Then remove the rear Takedown and allow the Pivot Pin to retain its detent.
If the pin is rotated so that the detent registers with the groove on its end then it becomes impossible to remove the pin without removing the castle nut and end plate.

1) Black Nitride

Material: 17-4PH Stainless Steel, H900 Condition
Finish: QPQ Nitride Black.
Weight: Pivot Pin: .25oz, Takedown: .20oz

2) Titanium

Material: Titanium, 6AL-V4GR5
Finish: Natural.
Weight: Pivot Pin: .15oz, Takedown: .10oz

3) Black Nitride with QPD TiN Finished

Material: 17-4PH Stainless Steel, H900 Condition
Finish: QPQ Nitride.
Weight: Pivot Pin: .25oz, Takedown: .20oz





Complete with KNS Detents & Stainless Detent Springs.
Manufactured in the USA.
