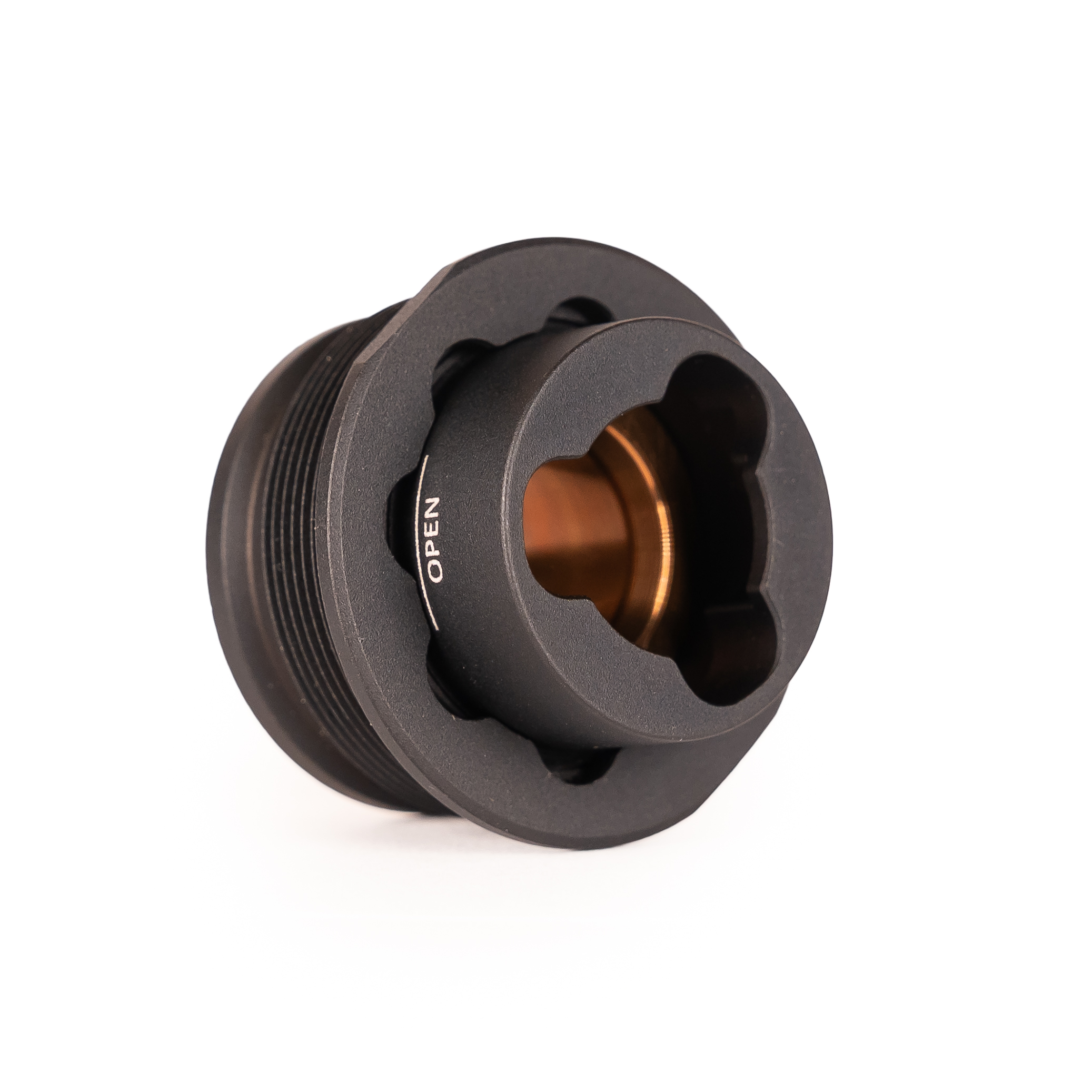

Rugged Suppressors Universal 3-Lug Mount (HUB 1.375x24) - Bixler-Style Taper-Locking Tri-Lug Mount, HK-Spec Compatible, Black Nitride / Anodized Finish - RU3 / 850044499366
Product Description
Mounting HUB-threaded suppressors to subguns, pistol-caliber carbines (PCCs), or lever-action platforms often involves bulky thread adapters, long stack heights, or spring-loaded 3-lug interfaces susceptible to carbon lock and rotational wobble on your bench. Traditional spring-assisted tri-lug mounts rely on mechanical tension alone, which can degrade under rapid-fire heat and carbon fouling. The **Rugged Suppressors® Universal 3-Lug Mount (RU3 / 850044499366)** solves these alignment and mounting challenges, delivering a direct **1.375x24 (HUB) threaded 3-lug adapter** utilizing a heavy-duty Bixler-style taper lockup.
Engineered and manufactured in the United States by Rugged Suppressors, the RU3 threads directly into any 1.375x24 HUB-compatible 9mm suppressor cavity—such as the Rugged Alaskan360 or SUB9—eliminating the need for secondary adapters or extension cages. Designed for seamless lockup on standard **HK-spec 9mm 3-lug muzzle devices**, the RU3 utilizes a Bixler-style tapered lockup mechanism. Instead of relying purely on spring tension, twisting the lock ring pulls the mount tight against the muzzle device's taper, delivering repeatable concentricity, zero carbon-wobble, and a long service life under high rates of fire directly from your armorer bench.
Precision-machined to interface natively with 1.375x24 HUB suppressor bodies and standard HK-spec 9mm tri-lug adapters, this factory-calibrated mount delivers rock-solid, taper-locked suppressor retention directly from your workspace bench.
*Armorer Bench Notes & Real-World Suppressor Staging Guidance: The Rugged RU3 package arrives workspace ready, containing the black nitride/anodized 3-lug mount unit and a specialized Rugged Universal 3-Lug installation wrench tool. 1.375x24 HUB & 3-LUG CALIBER RATING MATRIX: This mount features industry-standard **1.375x24 (HUB) threads**. *Caliber & Model Restrictions Checklist:* The RU3 is engineered strictly for **9mm / handgun and straight-wall pistol calibers**. It is *not* rated for bottleneck rifle calibers (e.g., 5.56 NATO or .308 Win). Obsidian Series Compatibility Note: This mount is designed for 1.375x24 HUB suppressors (Alaskan360, SUB9, etc.) and will **NOT** fit Rugged Obsidian9 or Obsidian45 pistol suppressors (which utilize smaller internal piston threads). Armorer Workbench Custom Staging Sequence: 1. Visually and physically confirm your host PCC or subgun is completely clear of live ammunition, the magazine is removed, and the chamber is checked safe and empty. 2. Thoroughly clean the 1.375x24 internal threads of your suppressor body using isopropyl alcohol to remove carbon buildup or anti-seize grease. 3. Apply a light drop of high-temperature anti-seize to the external threads of the RU3 mount. 4. Hand-thread the RU3 into the rear of your HUB suppressor, then insert the included Universal 3-Lug Tool and torque to **25 foot-pounds** using a 3/4" socket or wrench on your bench. 5. To mount on your firearm, twist the RU3 retainer collar counter-clockwise until the "OPEN" mark is visible, push the suppressor firmly over the HK-spec 3-lug adapter, and rotate clockwise until hand-tight to lock the taper. 6. Perform a visual alignment inspection down the bore using a 9mm alignment rod before rolling downrange.*
Key Features
- Direct 1.375x24 HUB Suppressor Threads: Threads directly into standard HUB-compatible 9mm suppressors without requiring secondary thread adapters or extension cages.
- Bixler-Style Taper-Lock System: Utilizes an active tapered mechanical lockup for superior concentricity, rock-solid stability, and resistance to carbon locking under rapid fire.
- Universal HK-Spec 3-Lug Compatibility: Locks cleanly onto all standard HK-spec 9mm tri-lug adapters and integral subgun 3-lug barrels.
- Compact Low-Profile Footprint: Minimizes added overall length and weight to keep subgun and PCC setups nimble and perfectly balanced.
- Corrosion-Resistant Black Nitride / Anodized Finish: Protected by a heavy-duty black finish that resists extreme blast heat, carbon fouling, and chemical cleaning solvents.
- Includes Dedicated Installation Tool: Ships complete with Rugged's proprietary 3-lug installation tool to allow precise 25 ft-lb torque application during bench assembly.
Product Specifications
- Brand: Rugged Suppressors® (Travelers Rest, SC / Made in the USA)
- Model Line: Universal / HUB Suppressor Accessories - 3-Lug Mount Series
- MPN/SKU Code: RU3 (Rugged Universal 3-Lug Mount Black Standard SKU)
- UPC Code Profile: 850044499366
- Suppressor Interface Threading: 1.375"x24 TPI (Industry-Standard HUB Pattern)
- Muzzle Device Interface: HK-Spec 9mm Tri-Lug / 3-Lug Adapters
- Caliber Rating Restriction: 9mm Luger & Straight-Wall Pistol Calibers (Not Rifle Rated)
- Locking Mechanism Type: Bixler-Style Manual Taper-Lock Ring Assembly
- Structural Material Base: Precision CNC-Machined High-Grade Steel Alloys
- Exterior Finish Dressing: Heavy-Duty Black Nitride / Anodized Protective Coating
- Full Kit Component Checklist: 1x Rugged RU3 3-Lug Mount, 1x Installation Wrench Tool
- Packaging Format Class: Factory Original Sealed Rugged Suppressors Poly Bag / Box Package
- Product Type Category: NFA Accessories / Suppressor Mounts & Tri-Lug Adapters
- Net System Operating Weight: ~3.80 Ounces (~107.7 Grams Mount Mass)
- Global Quality Certifications: Formulated to Rigid US Professional Duty and NFA Standards
- Warranty Tracking Protection: Fully Backed by Rugged Suppressors Unconditional Lifetime Warranty
