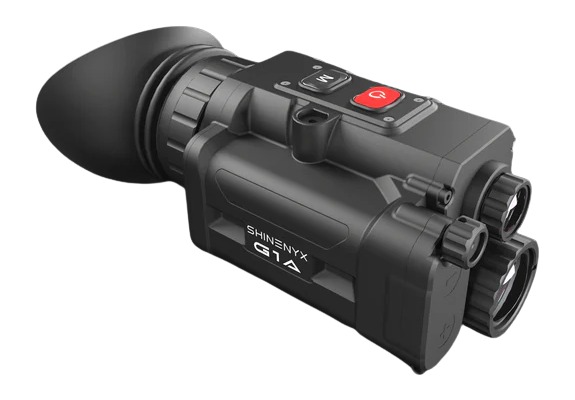

Shinenyx G1A with Mount 640X512 Thermal Military Grade Nightvision Image Fusion Monocular Goggle Scope G1A UPC 663899909740
Product Description
The Shinenyx G1A Thermal and Night Vision Fusion System (G1A) is an ultra-compact, multi-purpose electro-optical device engineered for helmet-mounted goggle operations, handheld scouting, and weapon-mounted optic applications. Combining a high-sensitivity 640×512 thermal imaging sensor with high-definition digital night vision, the G1A fuses both spectrums into a single seamless visual presentation—allowing operators to spot hidden thermal heat signatures through thick brush, fog, or smoke while simultaneously retaining fine visual detail and spatial awareness.
Designed for maximum versatility, the G1A comes complete with a rugged helmet/rail mounting interface. Its lightweight, weather-sealed chassis allows it to transition effortlessly from a hands-free helmet goggle to a handheld spotting monocular or a direct-mounted thermal sight. The high-resolution internal OLED display presents rich contrast and vibrant imaging across multiple dynamic palette modes, including full thermal, full night vision, highlight fusion, and picture-in-picture (PiP).
Engineered to withstand heavy recoil shock, environmental dust, immersion, and extreme ambient temperatures, the Shinenyx G1A features intuitive button controls designed for easy gloved operation. Powered by high-efficiency rechargeable lithium power cells, the G1A is an essential force multiplier for tactical operators, night search and rescue teams, and serious predator hunters.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Mounts to standard helmet shroud assemblies via the included dovetail/Wilcox style mount interface, as well as weapon Picatinny rails via the quick-detach mount.
- Perform a complete firearm safety check if weapon mounting: drop the magazine, lock the action rearward, and visually inspect the chamber to verify zero live rounds are present.
- To helmet-mount: align the G1A mounting interface with your helmet mount swing arm, locking it firmly into the dovetail receiver until a positive click is felt.
- Adjust interpupillary distance, eye relief, and flip-up tension on the helmet mount to align the ocular lens directly with your dominant eye.
- To weapon-mount: attach the included QD Picatinny mount base to the G1A housing and lock onto the top rail forward of your day optic or primary sight.
- Power on the unit, adjust the ocular diopter ring for reticle/menu sharpness, and select your preferred display fusion mode (Thermal, NV, or Fusion Overlay).
Key Features
- 640×512 High-Sensitivity Thermal Core: Detects subtle temperature differentials across extreme distances in total darkness, smoke, and camouflage.
- Multi-Spectrum Image Fusion: Blends thermal target detection with digital night vision detailing for complete environmental recognition.
- Modular Multi-Role Design: Configurable as a helmet-mounted goggle, handheld monocular, or weapon-mounted thermal sight.
- Includes Helmet & Rail Mount Assembly: Comes complete with high-strength mounting hardware for immediate field staging.
- High-Definition OLED Display: Delivers sharp image rendering, zero lag, and customizable color/fusion display palettes.
- Recoil-Rated & IP67 Weather-Sealed: Rugged housing protects sensitive internal optical sensors against heavy recoil and environmental immersion.
Product Specifications
- Brand: Shinenyx
- Model/Series: G1A Fusion Monocular / Goggle System
- MPN / SKU: G1A
- UPC: 663899909740
- Thermal Sensor Resolution: 640×512 pixels
- Optical System: Digital Night Vision + Thermal Fusion
- Display Type: High-Definition Color OLED
- Operating Modes: Thermal, Night Vision, Fusion Overlay, PiP
- Mounting Interfaces Included: Helmet Dovetail Mount & Quick-Detach Picatinny Rail Mount
- Ingress Protection: IP67 Submersible / Waterproof
- Weight: 17.5 oz
- Country of Origin: Imported
