Sig Sauer JULIET5T AMR 5x24mm Compact Magnifier w Flip to Side Mount Auto Modified Reticle System IPX8 Waterproof Aluminum Housing Black SOJ5MT01 UPC 798681707171
Product Description

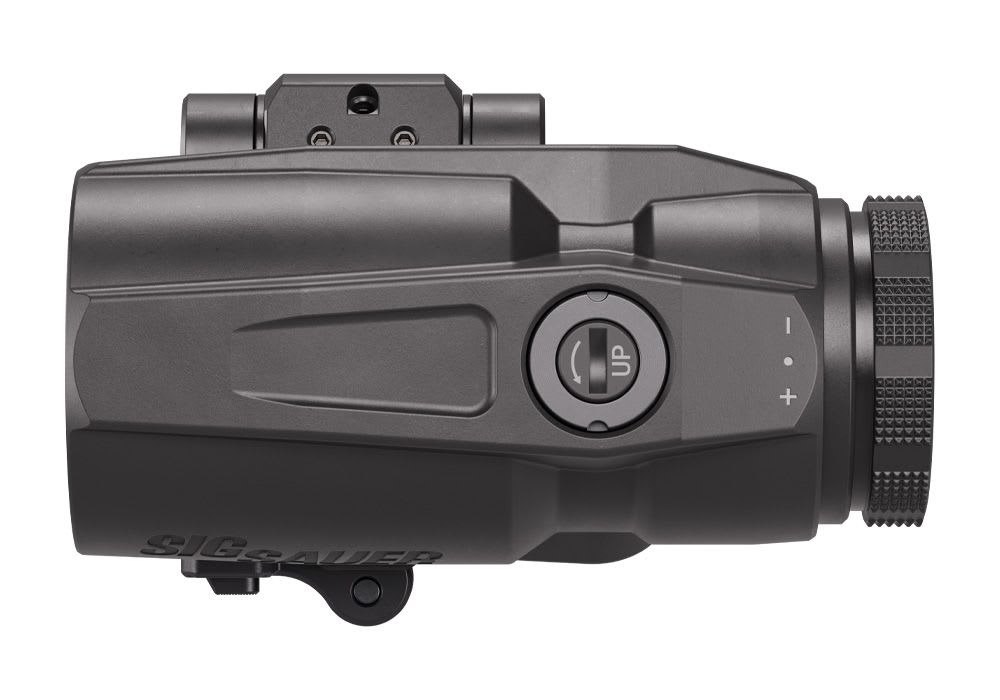

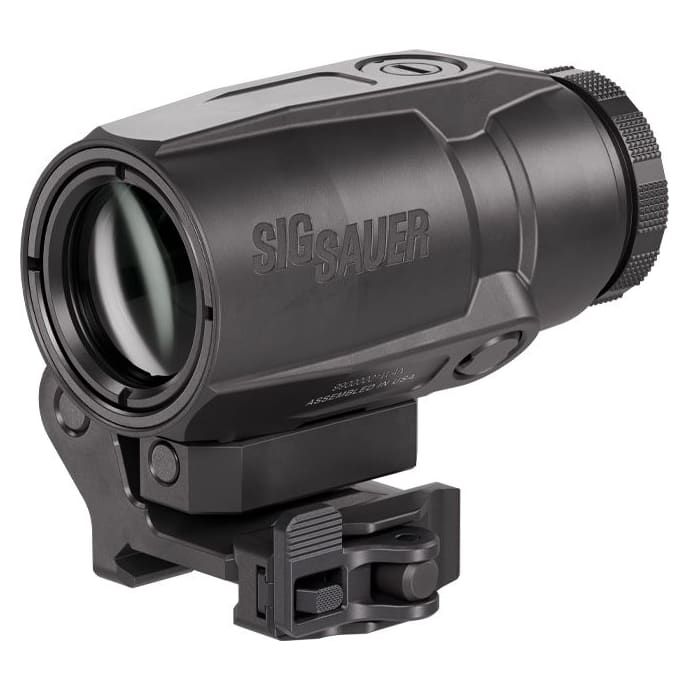

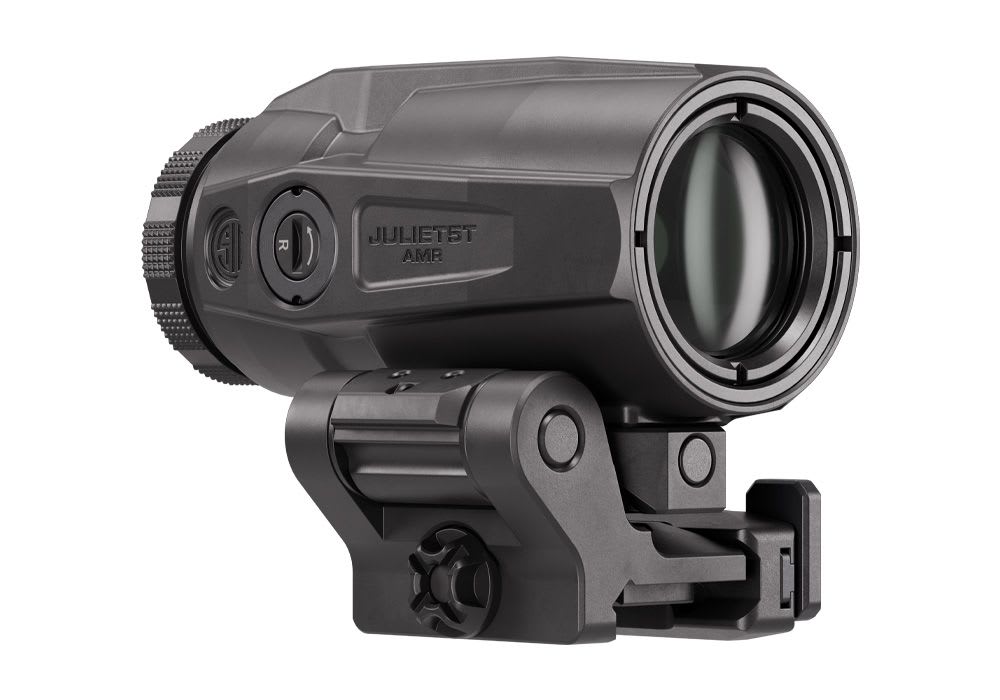

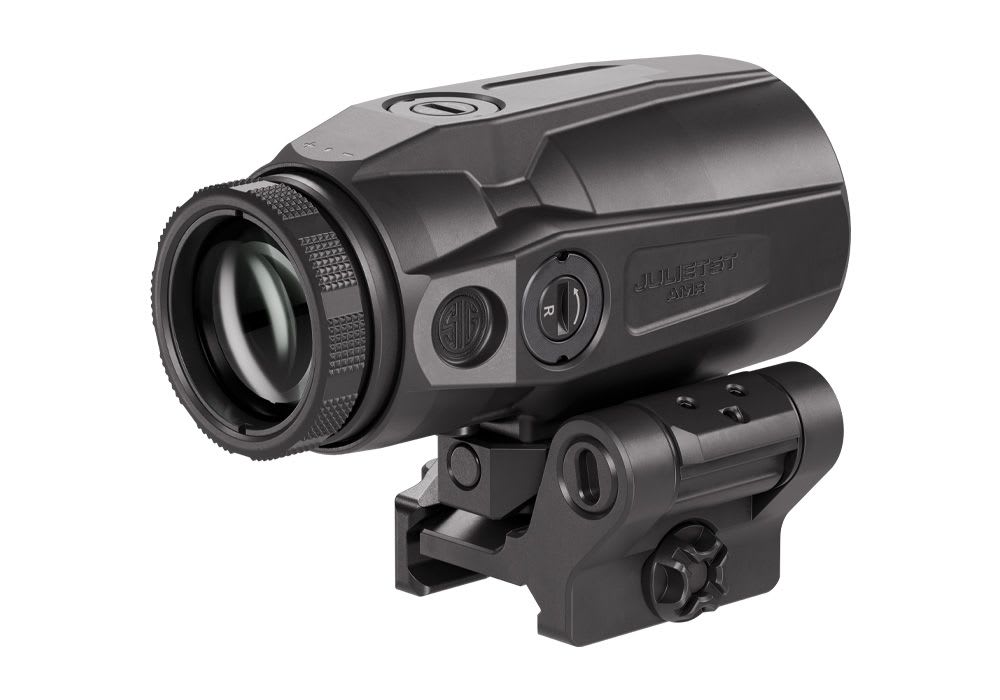

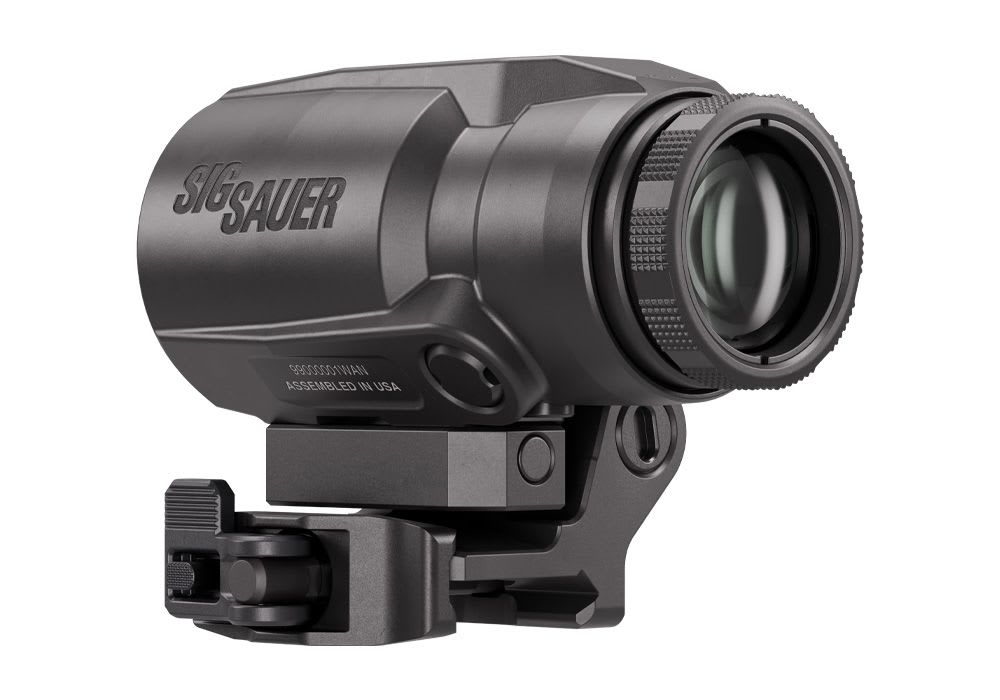

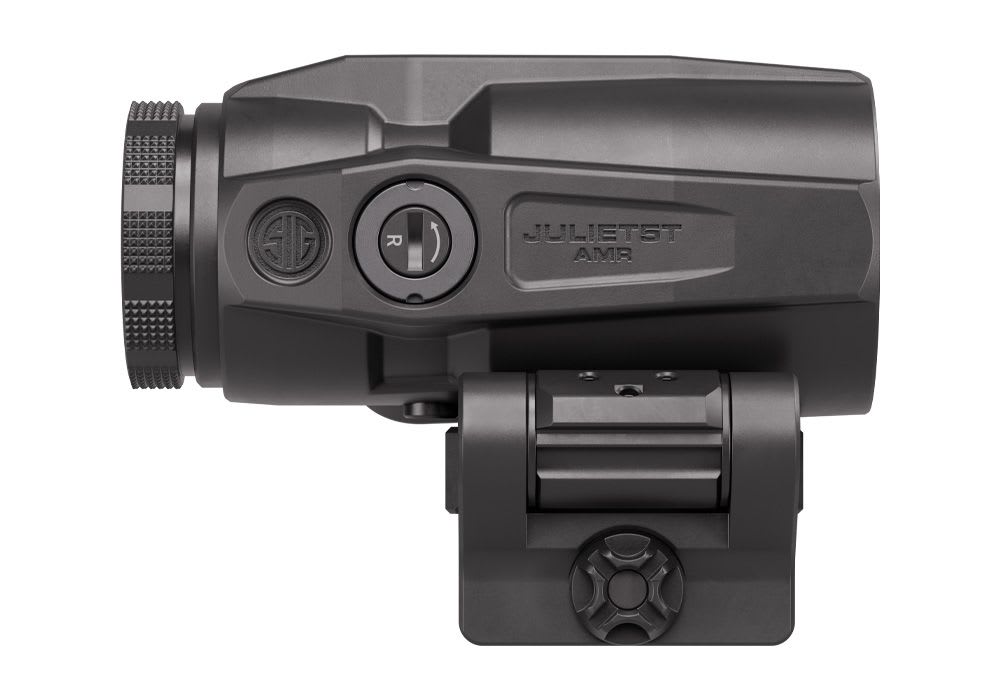

The Sig Sauer JULIET5T-AMR 5x24mm Compact Magnifier in Black (MPN: SOJ5MT01) is an advanced, ultra-compact optical enhancer engineered to bridge the gap between close-quarters target acquisition and extended-range precision engagements. Featuring 5x fixed magnification through a high-transmission 24mm objective lens, the JULIET5T-AMR mounts behind a red dot or reflex sight to extend effective engagement ranges while maintaining exceptional edge-to-edge optical clarity.
Designed for seamless integration with Sig Sauer’s Auto-Modified Reticle (AMR) technology, the JULIET5T-AMR interfaces effortlessly behind a primary optic to automatically optimize reticle configurations without breaking the sight picture. The optical assembly utilizes premium dielectric-coated prisms paired with SpectraCoat™ anti-reflective lens coatings, LensArmor™ scratch protection, and LenShield™ oleophobic water-repellent coatings. Machined from aircraft-grade CNC aluminum to meet rigorous MIL-STD-810 structural standards, the ultra-compact 3.1-inch housing delivers an IPX8 deep-immersion waterproof and fogproof rating.
Equipped with a PowerCam Flip-to-Side Quick Release Mount, the JULIET5T-AMR enables operators to rapidly transition between unmagnified 1x and 5x precision aiming. Supplied with a rubber bikini lens cover and height mounting spacers (supporting absolute co-witness, 1.535", and 1.63" lower 1/3 co-witness heights), the 10.5 oz SOJ5MT01 is a premier tactical magnifier for modern carbine setups.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits standard MIL-STD-1913 Picatinny receiver top rails directly behind red dot and reflex sights (must be mounted within 3 rail slots of AMR-enabled red dots). Spacers allow height alignment for 1.41" (absolute co-witness), 1.535", and 1.63" (lower 1/3) optic centerlines. Compatible with AMR-enabled red dot sights as well as standard 1x reflex optics.
- Perform a complete firearm safety check: drop the magazine, lock the action open, and visually/physically inspect the chamber to verify zero live rounds are present.
- Select the appropriate spacer plate to match the optical centerline height of your primary red dot sight.
- Attach the Flip-to-Side Quick Release mount to the bottom of the JULIET5T-AMR housing using the included screws torqued to 13–15 in-lbs.
- Seat the mount onto the receiver Picatinny rail within 3 slots behind your red dot optic and torque the 1/2" hex nut clamp to 65 in-lbs.
- Flip the magnifier into the active optical alignment position, look through the ocular lens, and adjust the ±2 DPT fast-focus diopter eyepiece until the reticle appears razor-sharp.
- Use the elevation and windage turrets to center the red dot reticle in the magnifier's 4.0° field of view prior to live firing[cite: 1].
Key Features
- 5x Fixed Magnification Extension: Extends the effective target recognition and precision engagement envelope of 1x red dot sights.
- Automatic Modified Reticle (AMR) Compatible: Interfaces w/ AMR-enabled red dots to automatically trigger custom reticle configurations.
- Flip-to-Side Quick Release Mount: Enables rapid, positive target transitions between 1x close-quarters and 5x medium-range use.
- SpectraCoat™ Optical Lens System: Features dielectric-coated prisms, LensArmor™, and LenShield™ for maximum light transmission and clarity.
- Ultra-Compact & Lightweight: Measures just 3.1 inches in overall length and weighs 10.5 oz to preserve rail space[cite: 1].
- MIL-STD-810 & IPX8 Waterproof Rating: Heavy-duty aircraft aluminum housing withstands continuous recoil impact and deep water immersion.
Product Specifications
- Brand: Sig Sauer[cite: 1]
- Model/Series: JULIET5T-AMR 5x24mm Compact Magnifier[cite: 1]
- MPN / SKU: SOJ5MT01[cite: 1]
- UPC: 798681707171
- Magnification: 5x[cite: 1]
- Objective Lens Diameter: 24mm[cite: 1]
- Exit Pupil: 4.5 mm[cite: 1]
- Field of View: 4.0°[cite: 1]
- Diopter Adjustment Range: ± 2 DPT[cite: 1]
- Mounting Interface: Flip-to-Side Quick Release Picatinny Mount
- Optical Coatings: SpectraCoat, LensArmor, LenShield, Dielectric Prism
- Housing Material: CNC Aircraft-Grade Aluminum
- Dimensions (L x W x H): 3.1 in x 2.2 in x 2.5 in (78 mm x 56 mm x 64 mm)[cite: 1]
- Finish / Color: Hardcoat Anodized Black[cite: 1]
- Waterproof Rating: IPX8 Submersible / Fogproof
- Included Accessories: Rubber Bikini Lens Cover & Mounting Height Spacers
- Weight: 10.5 oz (267 g)[cite: 1]
- Country of Origin: Designed in USA / Sig Sauer Electro-Optics
