TacFire Ace Tunable Multi 1 2x28 Threads Stainless Steel MZ1027SS UPC 729205662553
Product Description

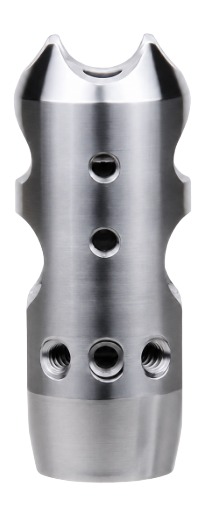

The TacFire Ace Tunable Multi-Caliber Muzzle Brake in Stainless Steel (MZ1027SS) is an adaptable recoil reduction system engineered for rifles chambered in .223 Remington, 5.56mm NATO, and .22-caliber projectiles featuring standard 1/2"-28 TPI muzzle threads. Designed to deliver custom muzzle control, the Ace Tunable brake features top tuning ports that allow shooters to fine-tune gas impulse direction and eliminate muzzle climb based on specific shooting stances and optics setups.
Precision CNC-machined from high-strength 303 stainless steel with a clean raw metallic finish, the MZ1027SS withstands high thermal stress, aggressive propellant gas erosion, and rapid sustained fire without degrading port geometry. Large side baffle chambers divert high-pressure gases laterally to neutralize felt recoil impulse, while the top port set screws can be removed or configured to vent gas upward, counteracting off-axis muzzle rise.
Including set screws and a crush washer for proper alignment indexing, the TacFire Ace Tunable Stainless Muzzle Brake is an exceptional upgrade for target shooters, 3-Gun competitors, and tactical carbine builders seeking customizable recoil compensation.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits barrel muzzles threaded in 1/2"-28 TPI with a bore clearance up to .224 / 5.56mm caliber (5.56 NATO, .223 Rem, .224 Valkyrie, .22 LR).
- Perform a complete firearm safety check: drop the magazine, lock the bolt rearward, and visually inspect the chamber to verify zero live rounds are present.
- Clean factory oil, thread sealant, or carbon residue from the 1/2"-28 barrel muzzle threads.
- Slide the included crush washer onto the barrel threads with the cup/flared side facing rearward toward the shoulder of the barrel.
- Thread the TacFire MZ1027SS muzzle brake onto the barrel by hand until it makes contact with the crush washer.
- Use an armorer wrench or crescent wrench to clock the muzzle brake until the top tuning port holes are indexed vertically at the 12 o'clock position (180° to 360° of rotation).
- Remove or install top tuning port screws using the included hex key to fine-tune gas venting to neutralize your specific right- or left-handed muzzle rise pattern.
Key Features
- Ace Tunable Port Technology: Adjustable top exhaust ports utilize removable set screws to customize upward gas venting and eliminate muzzle rise.
- High-Efficiency Baffle Design: Dual side chamber baffles redirect expanding muzzle gases laterally to significantly reduce felt recoil impulse.
- 303 Stainless Steel Construction: Machined from solid stainless steel bar stock for superior heat resistance and corrosion protection.
- Multi-Caliber 1/2"-28 Thread Pitch: Industry-standard thread pattern compatible with .223 Rem, 5.56 NATO, and .22-caliber barrels.
- Complete Mounting Kit: Includes crush washer and tuning port set screws for straightforward timing and custom tuning out of the box.
- Raw Stainless Metallic Finish: Clean satin stainless appearance complements stainless steel match barrels and custom AR-15 builds.
Product Specifications
- Brand: TacFire
- Model/Series: Ace Tunable Multi-Caliber Muzzle Brake
- MPN / SKU: MZ1027SS
- UPC: 729205662553
- Thread Pitch: 1/2"-28 TPI
- Caliber Clearance: .223 Rem / 5.56 NATO (.22 Caliber Max)
- Material: 303 Stainless Steel
- Finish / Color: Raw Satin Stainless Steel
- Length: 2.4 in
- Weight: 3.8 oz
- Country of Origin: USA / Imported
