TacFire Ace Tunable Multi 5 8x24 Threads Black Nitride Steel MZ10273B UPC 729205661419
Product Description

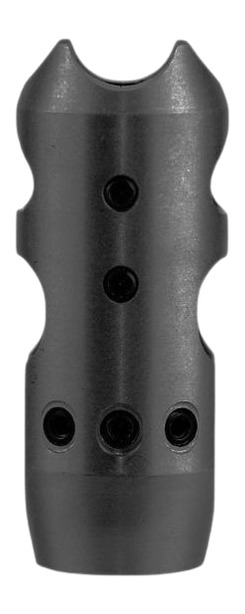

The TacFire Ace Tunable Multi-Caliber Muzzle Brake in Black Nitride (MZ10273B) is a customizable recoil control and muzzle mitigation device engineered for large-bore rifles chambered in .308 Winchester, 7.62x51mm NATO, 300 AAC Blackout, 6.5 Creedmoor, and other .30-caliber platforms featuring standard 5/8"-24 TPI muzzle threads. Purpose-built to offer tailored muzzle climb management, the Ace Tunable brake features top tuning ports that allow shooters to fine-tune gas impulse direction based on specific shooting stances and optics setups.
Precision CNC-machined from high-strength steel alloy and finished in a sleek, wear-resistant black nitride coating, the MZ10273B is built to withstand extreme pressure, thermal stress, and aggressive propellant gas erosion while blending seamlessly with standard black barrel finishes. Dual side expansion chambers direct high-velocity gases laterally to significantly diminish felt recoil impulse, while the top tuning port set screws can be removed or configured to vent gas upward, counteracting off-axis muzzle climb during rapid follow-up shots.
Supplied complete with tuning port set screws and a crush washer for precise alignment indexing, the TacFire Ace Tunable Black Nitride Muzzle Brake is an outstanding upgrade for precision bolt guns, AR-10/LR-308 carbines, and hunting rifles where custom recoil management and a low-glare appearance are required.
Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Fits barrel muzzles threaded in 5/8"-24 TPI with a bore clearance up to .30 caliber / 7.62mm (including .308 Win, 7.62x51mm, 300 Blackout, 6.5 Creedmoor, 6.5 Grendel, .243 Win).
- Perform a complete firearm safety check: drop the magazine, lock the bolt rearward, and visually inspect the chamber to verify zero live rounds are present.
- Clean factory oil, thread sealant, or carbon residue from the 5/8"-24 barrel muzzle threads.
- Slide the included crush washer onto the barrel threads with the cup/flared side facing rearward toward the shoulder of the barrel.
- Thread the TacFire MZ10273B muzzle brake onto the barrel by hand until it makes contact with the crush washer.
- Use an armorer wrench or crescent wrench to clock the muzzle brake until the top tuning port holes are indexed vertically at the 12 o'clock position (180° to 360° of rotation).
- Remove or install top tuning port screws using the included hex key to fine-tune gas venting to neutralize your specific right- or left-handed muzzle rise pattern.
Key Features
- Ace Tunable Port Technology: Adjustable top exhaust ports utilize removable set screws to customize upward gas venting and eliminate muzzle rise.
- High-Efficiency Baffle Design: Dual side chamber baffles redirect expanding muzzle gases laterally to significantly reduce felt recoil impulse.
- High-Strength Steel Alloy Construction: Precision-machined steel alloy structure provides extreme durability under heavy firing schedules.
- Black Nitride Surface Finish: Hardened matte black nitride coating guards against surface friction, chemical erosion, and environmental corrosion.
- Multi-Caliber 5/8"-24 Thread Pitch: Industry-standard thread pattern compatible with .308 Win, 7.62 NATO, 300 Blackout, and 6.5 Creedmoor barrels.
- Complete Mounting Kit: Includes crush washer and tuning port set screws for straightforward timing and custom tuning out of the box.
Product Specifications
- Brand: TacFire
- Model/Series: Ace Tunable Multi-Caliber Muzzle Brake
- MPN / SKU: MZ10273B
- UPC: 729205661419
- Thread Pitch: 5/8"-24 TPI
- Caliber Clearance: .308 Win / 7.62x51mm / 300 AAC Blackout / 6.5mm (.30 Caliber Max)
- Material: High-Strength Steel Alloy
- Finish / Color: Black Nitride
- Length: 2.4 in
- Weight: 4.1 oz
- Country of Origin: USA / Imported
