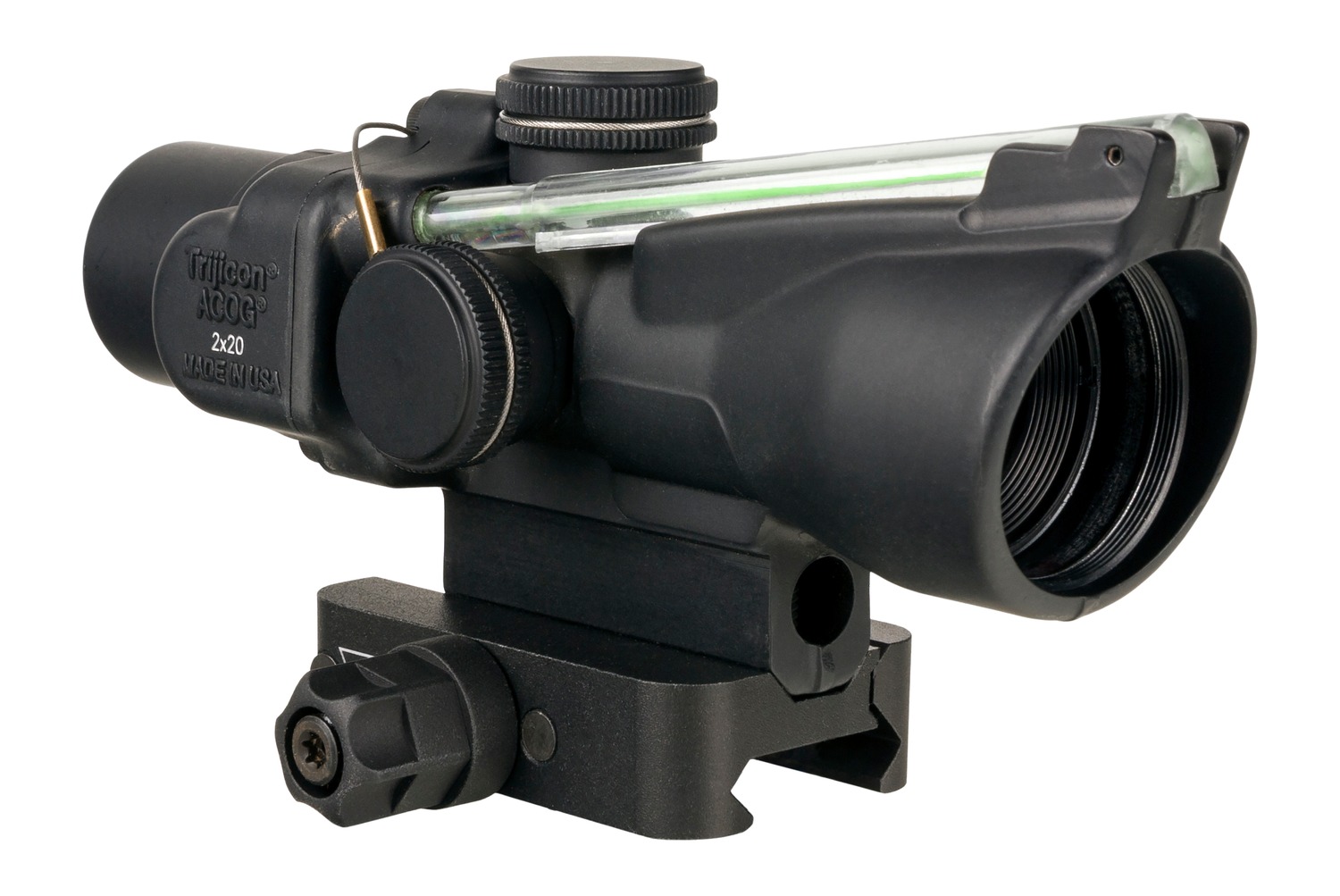

Trijicon, Compact ACOG 2X20, 2x Magnification, 20mm Objective, Dual Illuminated, Green 115/147 Grain 9mm PCC RTR Reticle, Black, Includes Q-LOC Mount - SKU: TA47-C-400412 - UPC: 719307624719
Product Description
The Trijicon Compact ACOG 2x20 (TA47-C-400412) is an ultra-rugged, fixed 2x magnification optical sight specifically optimized for pistol caliber carbines (PCC) and submachine gun platforms chambered in 9mm Luger. Providing a slight 2x magnification boost over traditional 1x red dot sights, the TA47 enhances long-range target identification and precise placement while maintaining exceptional speed for close-quarters engagements.
Powered by Trijicon’s signature battery-free Dual Illumination system, the optic utilizes fiber optics to gather ambient daylight and tritium to illuminate the reticle in complete darkness. The specialized Green 115/147 Grain 9mm PCC RTR (Ring & Torso Reticle) features ballistic holdovers calibrated specifically for standard 115gr to 147gr 9mm ammunition, providing an intuitive speed ring for rapid close-range indexing and holdover marks for mid-range targets.
Forged from 7075-T6 aircraft-grade aluminum with a non-reflective matte black hardcoat anodized finish, the TA47-C-400412 comes factory-paired with Trijicon's quick-detach Q-LOC Picatinny mount. Featuring a spring-loaded QD mechanism, the Q-LOC mount ensures repeatable return-to-zero performance, minimal rail footprint, and fast toolless installation onto modern carbine receiver rails.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Mounts directly to MIL-STD-1913 Picatinny receiver rails using the included Q-LOC QD mount base.
- Verify host firearm is completely clear, magazine removed, and chamber visually and physically confirmed empty.
- Depress the spring-loaded quick-detach lever on the Q-LOC mount base and position the optic onto the receiver Picatinny rail.
- Push the optic body forward toward the muzzle while releasing and securing the Q-LOC clamp to lock the recoil lug firmly into the rail cross-slot.
- Look through the ocular lens with both eyes open to verify proper eye relief (approx. 2.1 inches) and natural reticle alignment.
- Adjust windage and elevation turrets using external toolless adjusters or a small coin to establish zero for your specific 9mm load velocity.
Key Features
- Battery-Free Dual Illumination: Fiber optic light collector dynamically adjusts reticle intensity in daylight; tritium powers the reticle in low-light and darkness.
- Calibrated 9mm PCC RTR Reticle: Green Ring & Torso Reticle featuring ballistically matched holdover points for 115gr and 147gr 9mm 9x19mm loads.
- Trijicon Q-LOC Quick-Detach Mount: Heavy-duty spring-loaded QD clamp delivers rock-solid rail retention and repeatable return-to-zero precision.
- Forged 7075-T6 Aluminum Housing: Military-spec forged aluminum body withstands harsh impacts, drops, and violent slide/bolt cycling forces.
- Low Profile 2x Optical System: Compact 20mm objective glass provides generous eye relief and crisp edge-to-edge optical clarity.
- Waterproof & Nitrogen-Purged: Dry-nitrogen purged housing eliminates internal fogging and optical clouding under severe environmental conditions.
Product Specifications
- Brand: Trijicon
- Series: Compact ACOG (TA47)
- MPN: TA47-C-400412
- UPC: 719307624719
- Magnification: 2x
- Objective Lens Diameter: 20mm
- Illumination Source: Fiber Optics & Tritium (Dual Illuminated)
- Reticle Pattern: Ring & Torso 9mm PCC RTR (115gr / 147gr)
- Reticle Color: Green
- Eye Relief: 2.1 Inches
- Field of View: 5.6 Degrees (29.3 ft @ 100 yds)
- Mount Type: Trijicon Q-LOC Picatinny Mount
- Finish/Color: Matte Black Hardcoat Anodized
