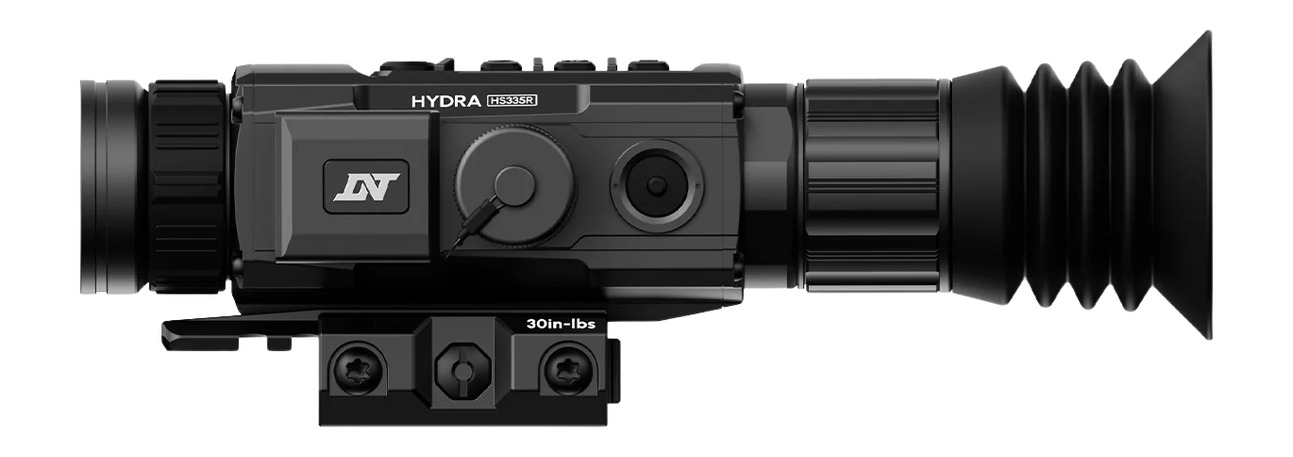

DNT Optics HS335R Hydra Matte Black 3-12x 35mm 384x288, 12 Microns, 50 Hz Resolution - SKU: HS335R - UPC: 850065096476
Product Description
The DNT Optics HS335R Hydra is an advanced multi-function thermal optical system that combines a dedicated standalone riflescope, front-mounted clip-on optic, handheld scanning monocular, laser rangefinder, and ballistic solver into a single compact housing. Built around a high-sensitivity 384x288 VOx uncooled thermal core featuring a 12-micron pixel pitch and ≤18mK NETD thermal sensitivity, this unit delivers crisp thermal imagery even under severe atmospheric degradation such as fog, smoke, or rain.
The 35mm F/1.0 Germanium objective lens provides a 3x optical base magnification with smooth digital zoom up to 12x, paired with DNT's Image Super Resolution (ISR) processing algorithm to sharpen edge definition across digital zoom levels. Integrated directly into the housing is an onboard laser rangefinder capable of measuring target distances from 5 out to 1,300 yards, communicating in real-time with the DNT Ballistic Engine to calculate real-time holdover corrections directly onto the high-resolution 1024x768 Micro-OLED display.
Machined from a solid billet of 6061-T6 aircraft aluminum, the HS335R is IP67 waterproof, dustproof, and shock-rated up to .50 BMG recoil forces. Powered by interchangeable, flat-top 18650 rechargeable batteries, the optic provides flexible field power management alongside an external 5V USB-C power interface. Onboard Wi-Fi compatibility integrates with the DNT mobile application for firmware updates, live streaming, and ballistic profile management.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Direct mounting to standard 1913 Picatinny rails via included quick-detach mount; compatible as a clip-on with low-magnification day scopes (LPVOs) using appropriate adapter rings.
- Verify host platform is completely safe, magazine removed, and chamber confirmed empty before mounting.
- Install a fully charged flat-top 18650 battery into the compartment, ensuring correct polarity orientation.
- Attach the included QDM150 quick-detach mount onto the optic chassis and secure onto the host rifle's Picatinny receiver rail.
- Adjust the QD lever tension to ensure zero rail movement or lash.
- Power on the unit, adjust the rapid-focus eyepiece diopter to clarify the OLED menu reticle, and use the objective focus ring to sharpen the field thermal signature. Configure ballistic parameters via the onboard menu or DNT app before zeroing.
Key Features
- 5-in-1 Multi-Function Architecture: Operates seamlessly as a standalone riflescope, clip-on, handheld monocular, LRF, and ballistic calculator.
- High-Sensitivity Thermal Core: 384x288 12μm VOx sensor with ≤18mK NETD rating delivers detailed thermal resolution.
- Onboard LRF & Ballistic Solver: Integrated 1,300-yard laser rangefinder calculates instant bullet drop compensation.
- Image Super Resolution (ISR): Proprietary algorithm enhances digital zoom clarity up to 12x magnification.
- Rugged Aluminum Chassis: CNC-machined 6061 aluminum housing is IP67 waterproof and .50 BMG recoil-rated.
Product Specifications
- Brand: DNT Optics
- MPN: HS335R
- UPC: 850065096476
- Sensor Resolution: 384 x 288 VOx (12 Micron)
- Thermal Sensitivity: ≤18mK NETD
- Frame Rate: 50 Hz
- Magnification: 3x Base (Up to 12x Digital)
- Objective Lens: 35mm F/1.0 Germanium
- Display Type: 1024 x 768 Micro-OLED
- Laser Rangefinder Range: 5 to 1,300 Yards
- Battery Type: 18650 Flat-Top Rechargeable
- Body Finish: Anodized Matte Black
- Dimensions: 7.8" x 2.7" x 2.0"
- Mass: 15.0 oz (372 g)
