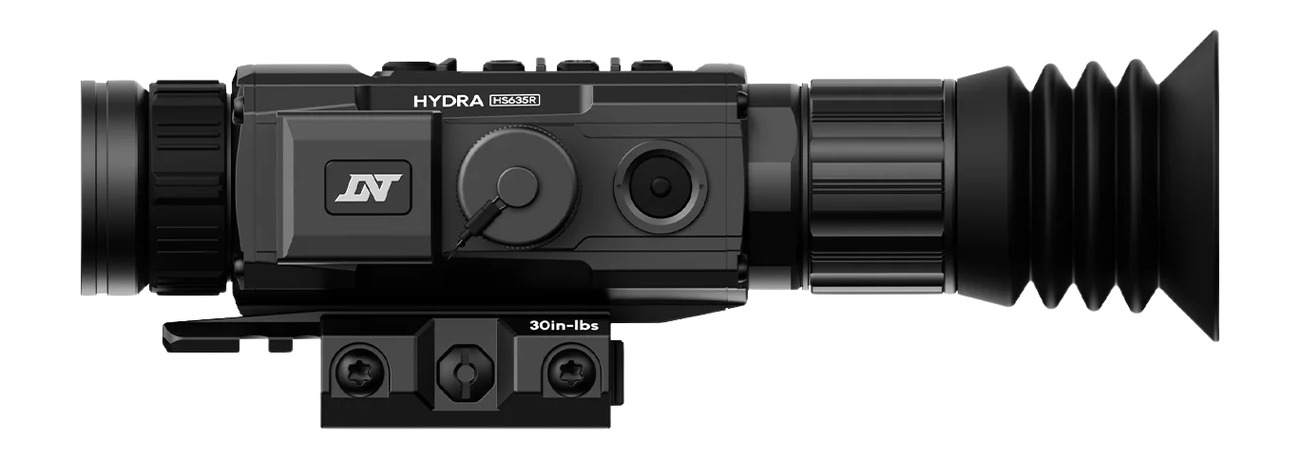

DNT Optics HS635R Hydra Matte Black 1.5-6x 35mm 640x512, 12 Microns, 50 Hz Resolution - SKU: HS635R - UPC: 850065096483
Product Description
The DNT Optics HS635R Hydra is a high-resolution 5-in-1 multi-function thermal sighting system engineered to function seamlessly as a standalone riflescope, front-mounted clip-on thermal optic, handheld thermal monocular, laser rangefinder, and ballistic solver. Powered by an ultra-sensitive 640x512 VOx uncooled thermal core featuring a 12-micron pixel pitch and a ≤18mK NETD thermal rating, this flagship optic delivers unmatched thermal detail, target separation, and landscape clarity under adverse environmental conditions like dense fog, heavy rain, or thick smoke cover.
Equipped with a premium 35mm F/1.0 Germanium objective lens, the HS635R provides a versatile 1.5x base optical magnification with smooth digital zoom scaling up to 6x. The thermal core works in tandem with DNT's proprietary Image Super Resolution (ISR) processing algorithm to minimize digital pixelation and preserve crisp target edge geometry across zoomed magnifications. Integrated directly into the compact housing is an onboard laser rangefinder capable of measuring target distances from 5 out to 1,300 yards. Real-time distance data feeds directly into the onboard DNT Ballistic Engine to calculate real-time holdover solutions directly on the ultra-clear 1024x768 Micro-OLED display.
Precision-machined from a solid billet of 6061-T6 aircraft-grade aluminum, the HS635R is IP67 waterproof, dustproof, and shock-rated up to .50 BMG recoil forces. Powered by field-replaceable, flat-top 18650 rechargeable batteries, the unit supports extended operation alongside external 5V USB-C power delivery. Onboard Wi-Fi integration pairs with the DNT mobile application for zero management, ballistic profile updates, and video streaming.
*Armorer Bench Notes & Real-World Staging Guidance:
Fitment Matrix: Direct mounting to standard 1913 Picatinny receiver rails via included quick-detach mount; compatible as a clip-on with low-magnification day optics (LPVOs) using standard adapter rings.
- Confirm host rifle is verified safe, magazine removed, and chamber physically inspected empty before installation.
- Insert a fully charged flat-top 18650 lithium-ion battery into the battery housing, verifying correct terminal polarity.
- Attach the included quick-detach mount to the optic body and clamp securely onto the host receiver's Picatinny rail section.
- Adjust the QD lever tension thumb nuts to eliminate all rail play and movement.
- Power on the optic, adjust the rapid-focus eyepiece diopter to clarify the OLED reticle display, and turn the 35mm objective focus ring to sharpen target thermal signatures. Configure ballistic profile parameters via the DNT app before live-fire sight-in.
Key Features
- 5-in-1 Multi-Function Architecture: Operates as a standalone riflescope, clip-on optic, handheld monocular, LRF, and ballistic calculator.
- High-Resolution 640x512 Thermal Core: 12μm VOx sensor with ≤18mK NETD sensitivity yields superior image fidelity and target identification.
- Integrated LRF & Ballistic Engine: Onboard 1,300-yard laser rangefinder automatically computes exact bullet drop holdover reticle placement.
- Image Super Resolution (ISR): Proprietary processing algorithm maintains sharp target edges across digital zoom levels up to 6x.
- Heavy-Recoil Rated Aluminum Body: Machined 6061 aluminum housing is IP67 waterproof and recoil-rated up to .50 BMG impact forces.
Product Specifications
- Brand: DNT Optics
- MPN: HS635R
- UPC: 850065096483
- Sensor Resolution: 640 x 512 VOx (12 Micron)
- Thermal Sensitivity: ≤18mK NETD
- Frame Rate: 50 Hz
- Magnification: 1.5x Base (Up to 6x Digital)
- Objective Lens: 35mm F/1.0 Germanium
- Display Type: 1024 x 768 Micro-OLED
- Laser Rangefinder Range: 5 to 1,300 Yards
- Battery Type: Flat-Top 18650 Rechargeable
- Body Finish: Anodized Matte Black
- Dimensions: 7.8" x 2.7" x 2.0"
- Mass: 15.0 oz (372 g)
