Product Description

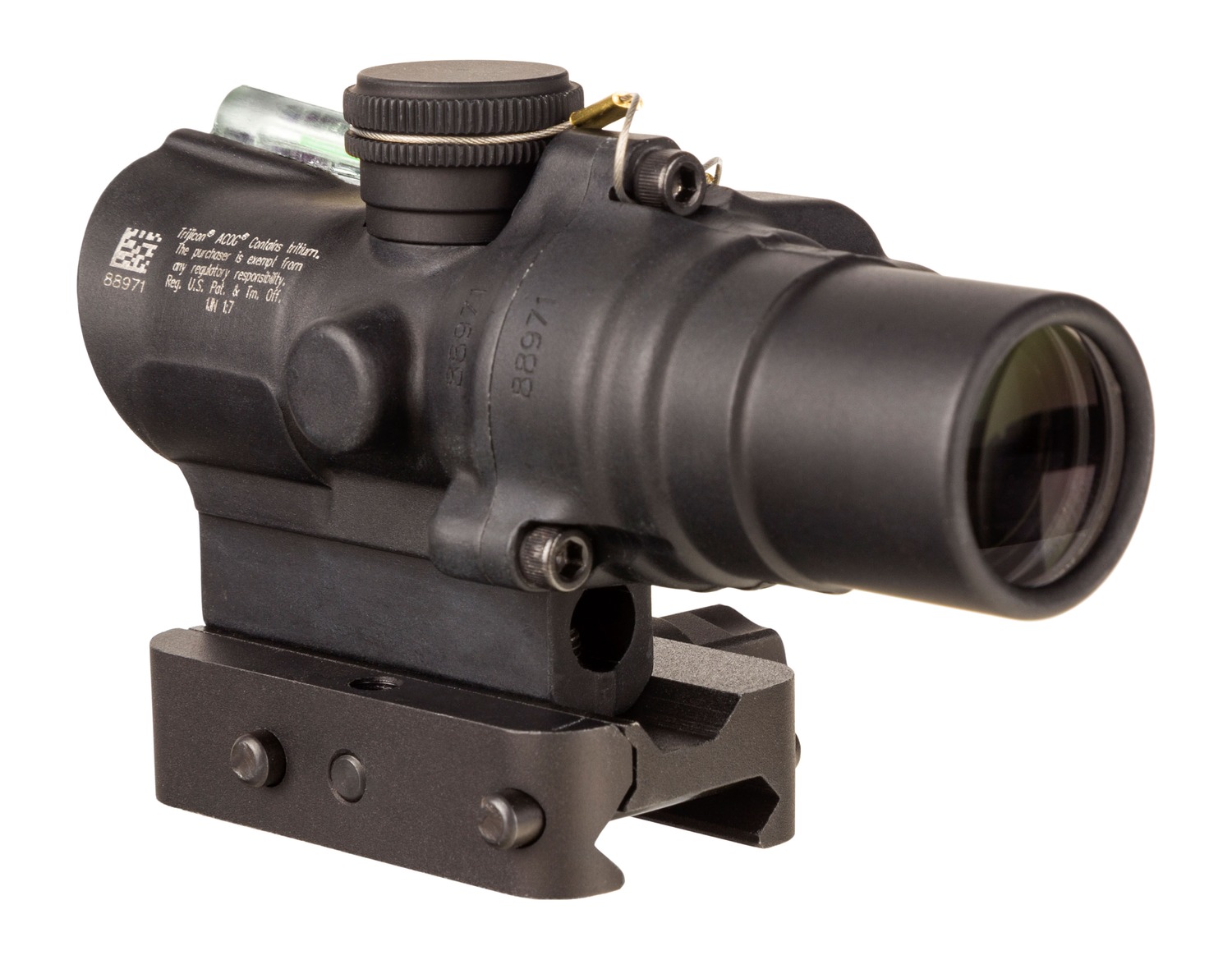

The Trijicon® Compact ACOG® 1.5x16S in Black (SKU: TA44-C-400411 / UPC: 719307624702) brings combat-proven ACOG durability into an ultralight, low-profile mini footprint optimized for PCC (Pistol Caliber Carbine) platforms. Featuring a 1.5x magnification optical system paired with a 16mm objective lens, this compact prism scope provides lightning-fast target acquisition and broad situational awareness using Trijicon’s Bindon Aiming Concept™ (BAC), allowing shooters to engage with both eyes open.
Equipped with a Dual-Illuminated Green 9mm PCC RTR™ (Rapid Target Reticle) calibrated specifically for 115gr and 147gr 9mm Luger ammunition, the optic delivers battery-free operation 24/7. Sunlight is gathered via fiber optic daylight collectors to dynamically adjust reticle brightness, while tritium phosphors provide dependable green reticle illumination in total darkness.
Forged from 7075-T6 aircraft-grade aluminum, the housing is shockproof, waterproof, and fogproof. The TA44-C-400411 comes complete with Trijicon's Q-LOC™ quick-detach Picatinny mount, which features a spring-loaded retention design that maintains zero alignment even under heavy recoil and removal cycles.
*Armorer Bench Notes & Real-World Staging Guidance:*
Fitment Matrix: Direct mounting to standard MIL-STD-1913 Picatinny receiver rails via the included Trijicon Q-LOC™ mount. Ideal for 9mm PCC carbines, short-barreled rifles (SBRs), and submachine gun platforms (such as SIG MPX, CZ Scorpion, CMMG Dissent, and Ruger PC Carbine).
- Ensure the host firearm is completely clear, magazine removed, and chamber visually and physically verified empty.
- Place the TA44-C-400411 and Q-LOC mount onto the upper receiver Picatinny rail, positioning it for optimal eye relief (2.4 inches).
- Push the optic forward toward the muzzle to seat the recoil lugs against the rail cross-slots.
- Tighten the Q-LOC mount torque knobs to 30 in-lbs (or hand-tighten until spring-loaded retention clamps seat flush) to secure zero stability before range staging.
Key Features
- 1.5x Magnification & Wide Eye Box: 1.5x power with a 7.4-degree field of view enables rapid, both-eyes-open target engagement.
- Calibrated 9mm PCC RTR™ Reticle: Green horseshoe and drop points engineered specifically for 115gr and 147gr 9mm PCC trajectory.
- Battery-Free Dual Illumination: Fiber optic daylight collector automatically tunes brightness in light; tritium provides night illumination.
- Trijicon Q-LOC™ QD Mount Included: Advanced spring-loaded Picatinny clamp mechanism ensures repeatable return-to-zero performance.
- 7075-T6 Forged Aluminum Housing: Military-tested alloy body provides ultimate structural protection against drops and severe shocks.
- Bindon Aiming Concept™ (BAC): Allows instinctual CQB aiming while keeping both eyes open for complete peripheral control.
- Made in the USA: Engineered, machined, and hand-assembled in Wixom, Michigan, USA.
Product Specifications
- Brand: Trijicon®
- Model/Series: Compact ACOG® 1.5x16S
- MPN / SKU: TA44-C-400411 / TA44-C-400411
- UPC: 719307624702
- Magnification: 1.5x
- Objective Lens Diameter: 16 mm
- Reticle: Dual-Illuminated Green 115gr/147gr 9mm PCC RTR™
- Illumination Source: Fiber Optics & Tritium (Battery-Free)
- Eye Relief: 2.4 Inches
- Exit Pupil: 10.7 mm
- Field of View: 7.4 Degrees (39 ft @ 100 yds)
- Mount Included: Trijicon Compact ACOG Mount w/ Q-LOC™ Technology
- Overall Dimensions (L x W x H): 4.0 in x 2.1 in x 2.58 in
- Housing Material: Forged 7075-T6 Aircraft Aluminum
- Finish/Color: Matte Black Anodized
- Country of Origin: United States
